Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT -- SIDE FRONT DOOR .
  2. Note the location of the electrical connector.
  3. Disconnect the speaker electrical connector.
  4. Remove the speaker fasteners (1).
  5. Remove the speaker.

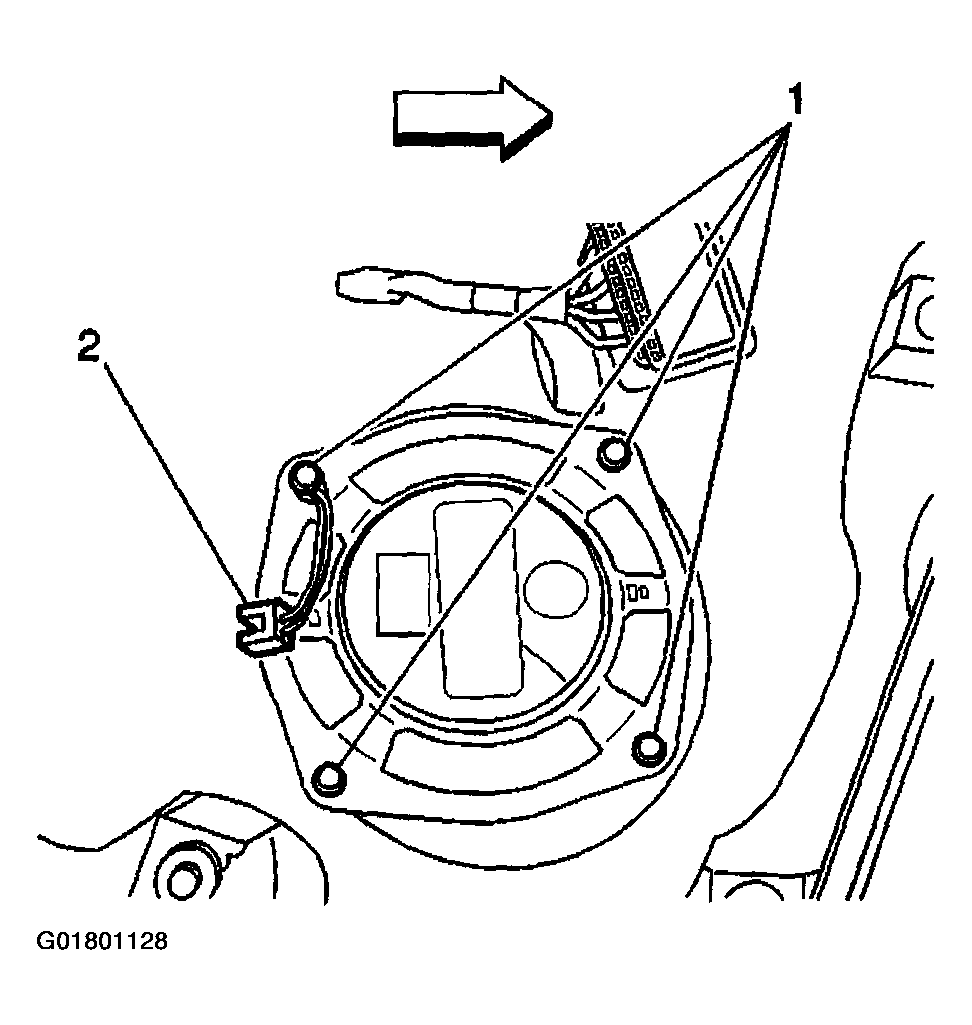

    Fig 1: Removing Lower Front Speaker
    G01801128Courtesy of GENERAL MOTORS CORP.
