Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Position the rear speaker into the opening in the rear shelf.
Install the fasteners in order to secure the rear speakers to the vehicle.
CAUTION: Refer to FASTENER NOTICE .

Tighten

Tighten the speaker fasteners to 2 N.m (18 lb in).
Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR WINDOW SHELF .

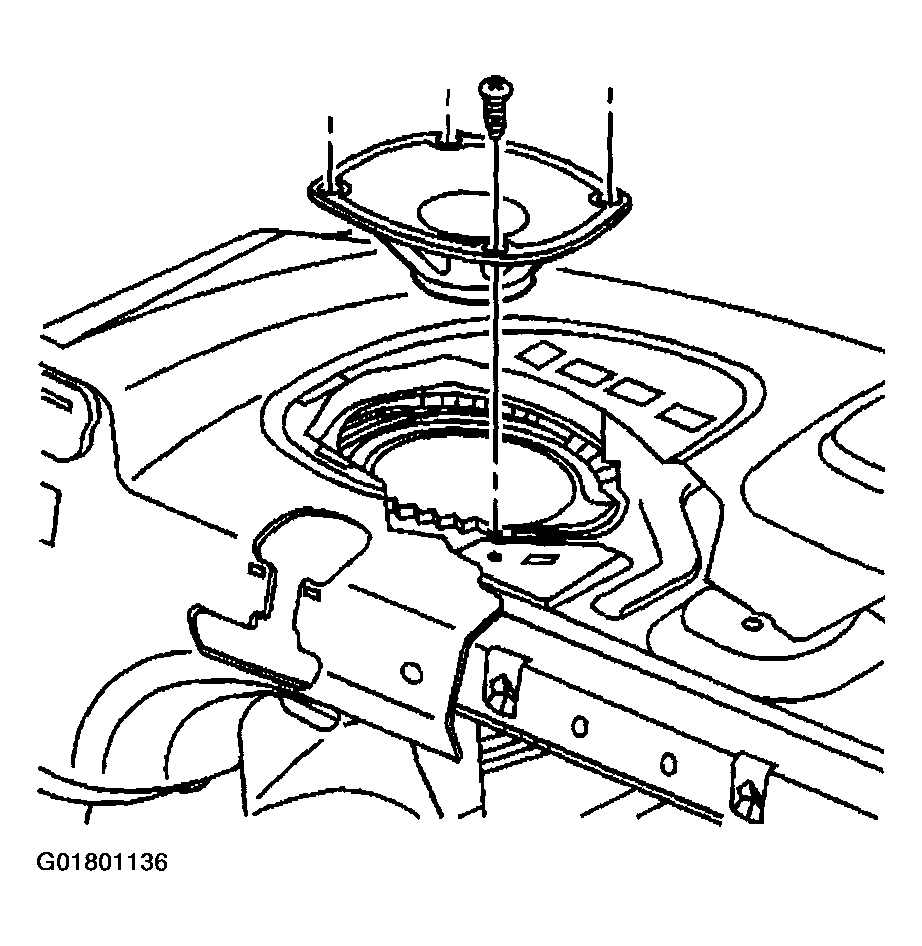

Fig 1: Installing Rear Speakers
Courtesy of GENERAL MOTORS CORP.
Install the speaker electrical connectors (1).
Install the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT--REAR .

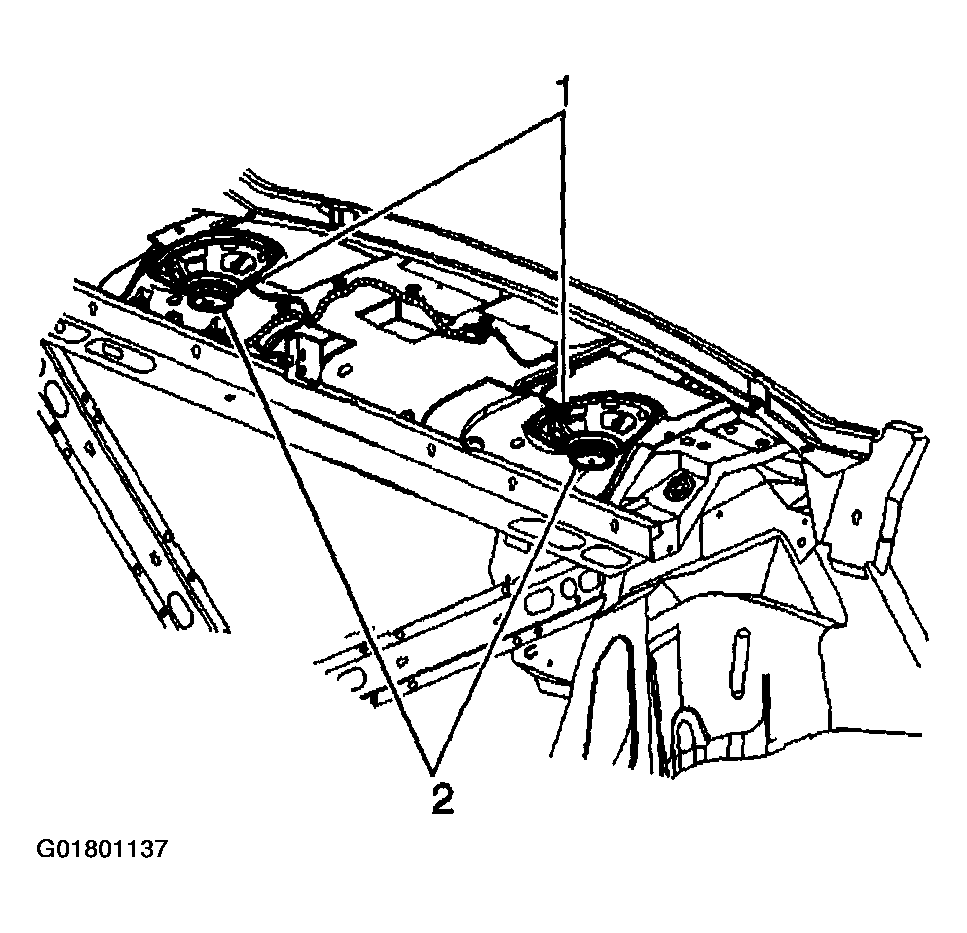

Fig 2: Installing Speaker Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
