Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector from the fog lamp.
  2. Remove the push pin retainers that attach the fog lamp to the bracket.
  3. Remove the fog lamp adjuster bolt and spring from the adjuster nut.
  4. Remove the fog lamp from the fog lamp bracket.
  5. Remove the fog lamp bracket bolts and bracket, as needed.

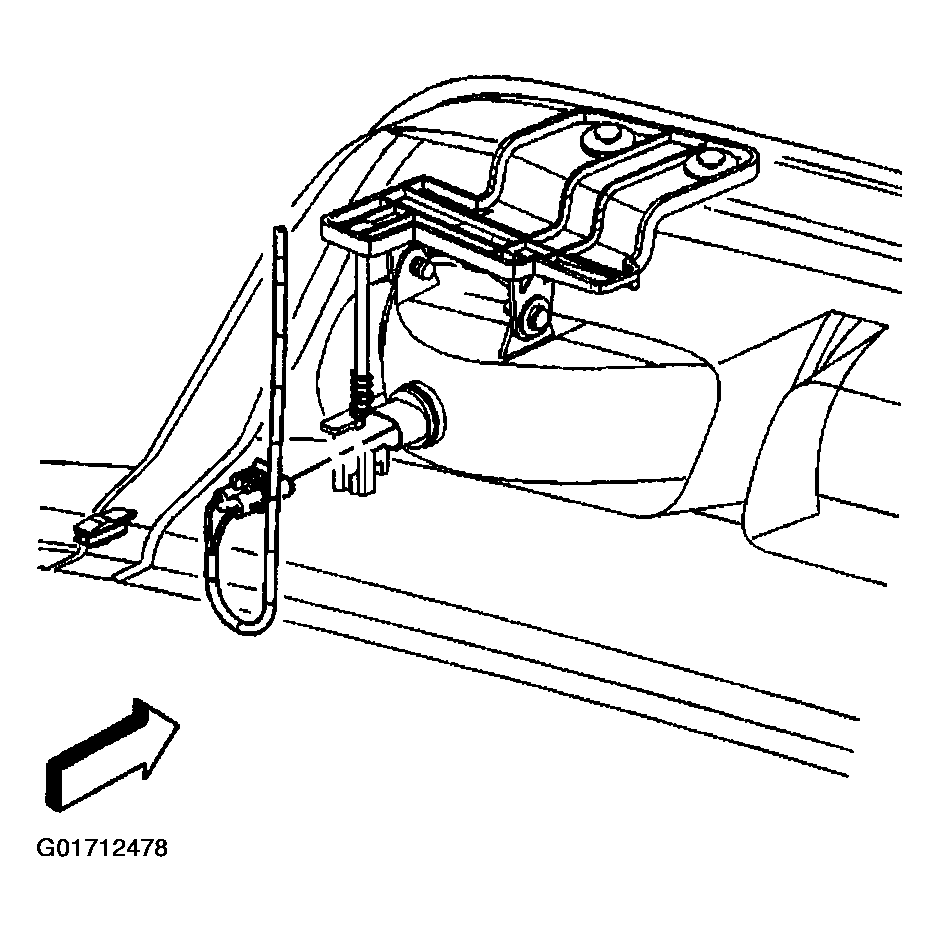

    Fig 1: Fog Lamp Replacement - Front
    G01712478Courtesy of GENERAL MOTORS CORP.
