Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power accessory switch panel. Refer to Power Accessory Switch Panel Replacement .
  2. Disconnect the electrical connector from the door lock switch.
  3. Remove the screws from the door lock switch.
  4. Remove the power window and door lock switch from the switch panel.

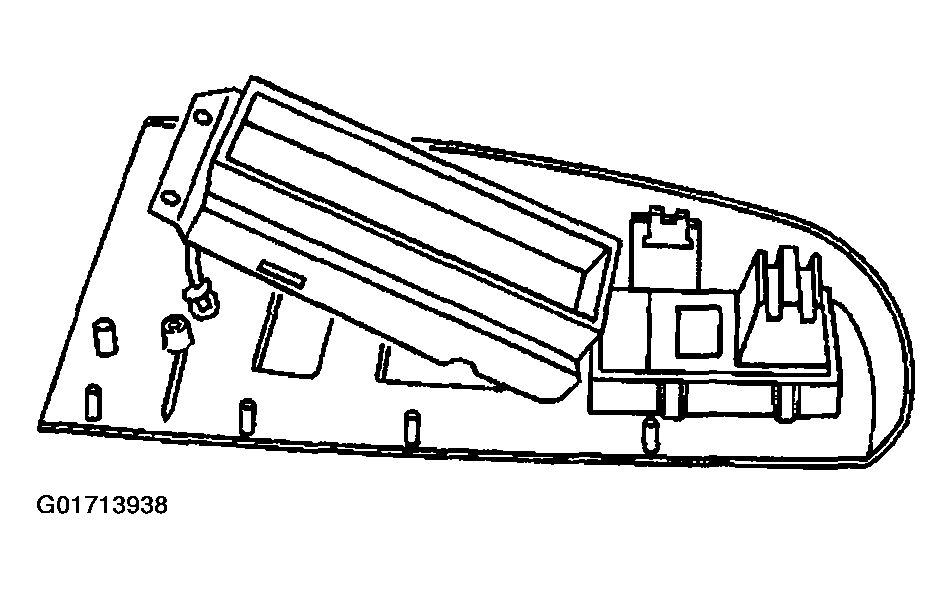

    Fig 1: Power Door Lock Switch Replacement
    G01713938Courtesy of GENERAL MOTORS CORP.
