Installation Procedure
WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

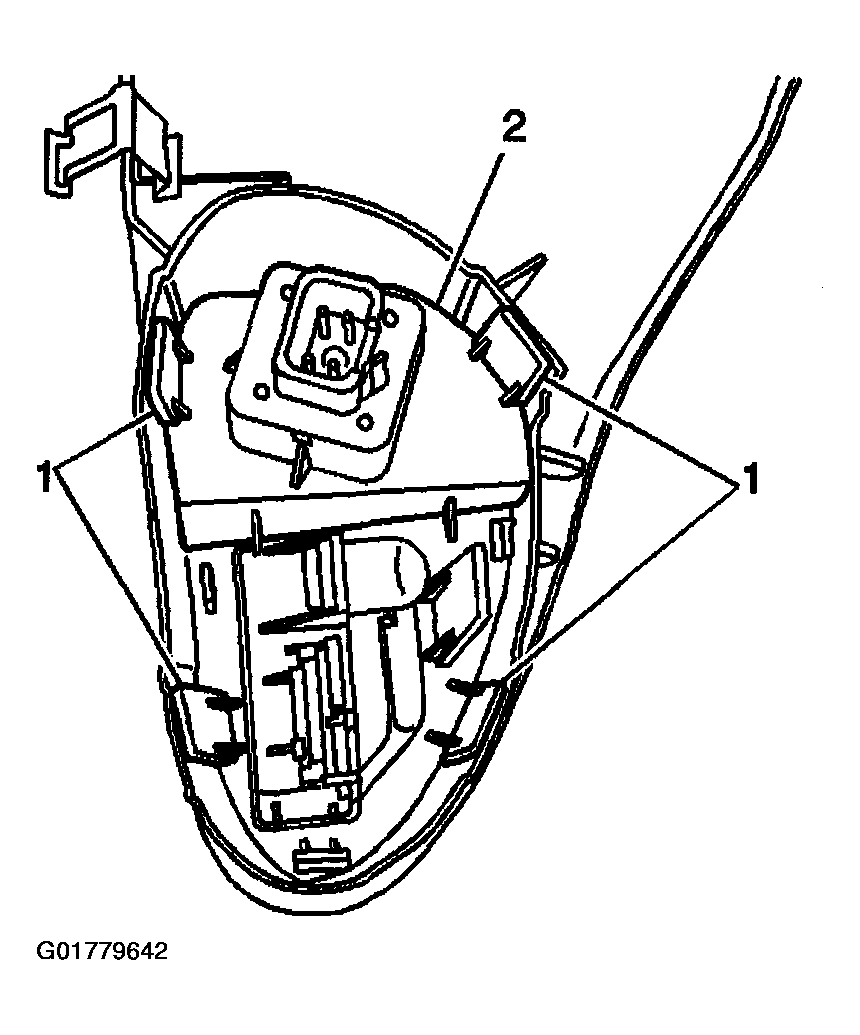

- Align the dimmer switch (2) with the opening in the IP cluster trim plate.
- Push inward on the dimmer switch (2) until fully seated into the IP cluster trim plate.
- Connect the electrical connector to the dimmer switch (2).
- Connect the hazard warning switch electrical connector if required.
- Install the IP trim plate to the IP Carrier. Refer to TRIM PANEL REPLACEMENT -- IP CLUSTER .
- Enable the SIR system. Refer to ACTIVATING SYSTEM in SIR.
