Removal Procedure
WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Pull back the rear compartment trim on the left side. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .

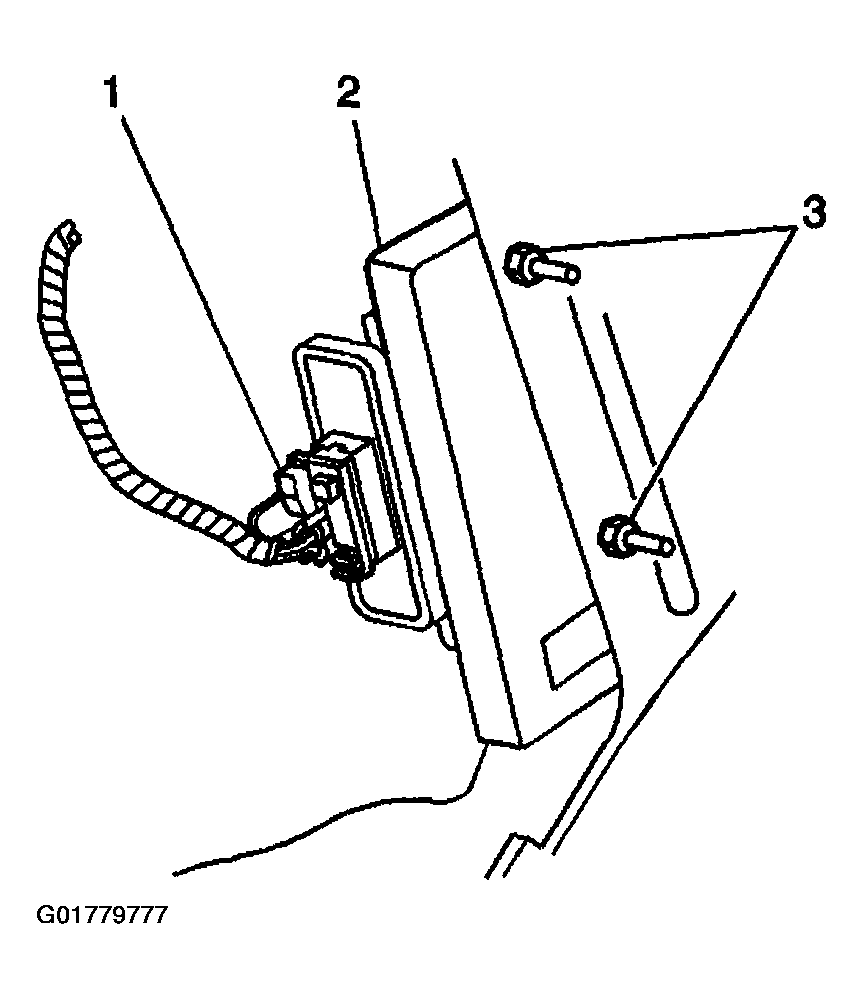

- Loosen the nuts (3) on the amplifier bracket.
- Remove the amplifier (2) from the left wheelhouse, lifting up and pulling back.
- Disconnect the electrical connector (1) from the amplifier (2).
- Remove the amplifier (2) from the rear compartment.
