Removal Procedure
WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT -- IP ACCESSORY .

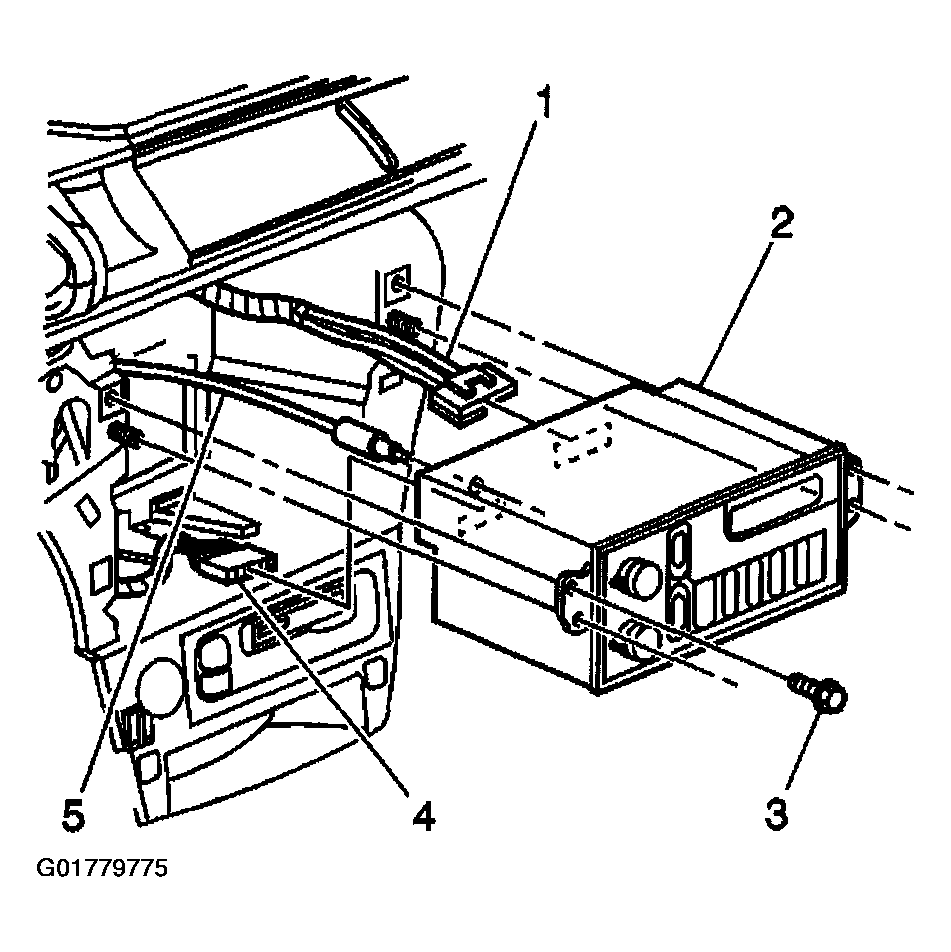

- Remove the radio mounting-bolts (3) from the radio (2).
- Remove the radio (2) from the instrument panel.
- Disconnect the electrical connectors (1, 4) from the rear of the radio (2).
- Disconnect the antenna lead (5) from the rear of the radio (2).
