Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Install the muffler to the hangers.

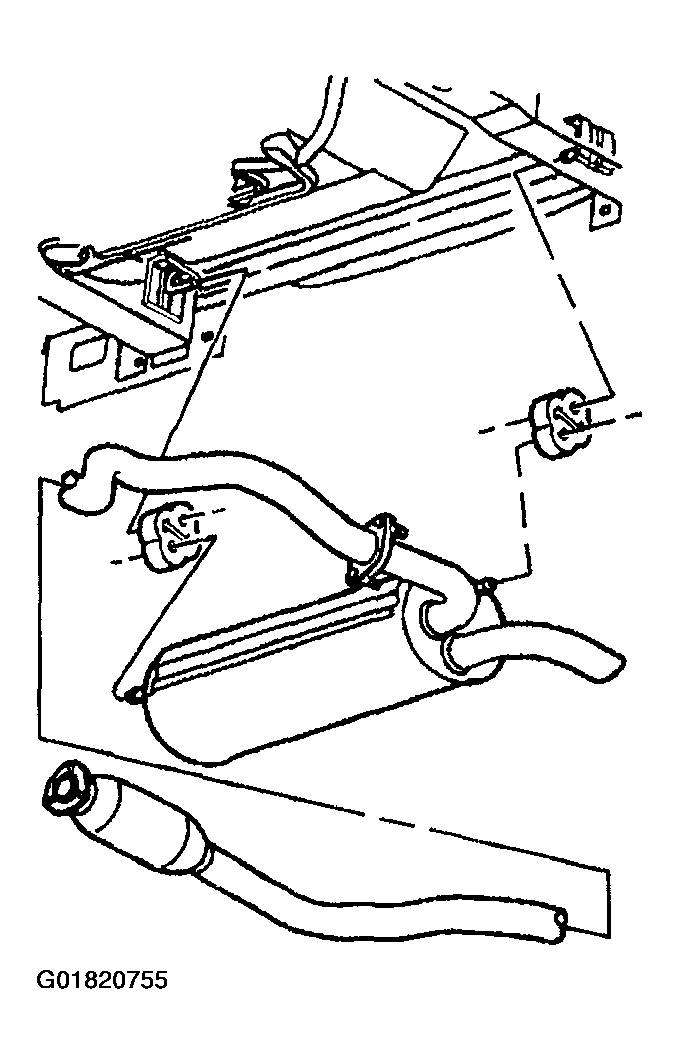

Fig 1: Installing Muffler
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
Install the muffler to the intermediate pipe nuts.
Tighten

Tighten nuts to 50 N.m (37 lb ft).
Lower the vehicle.

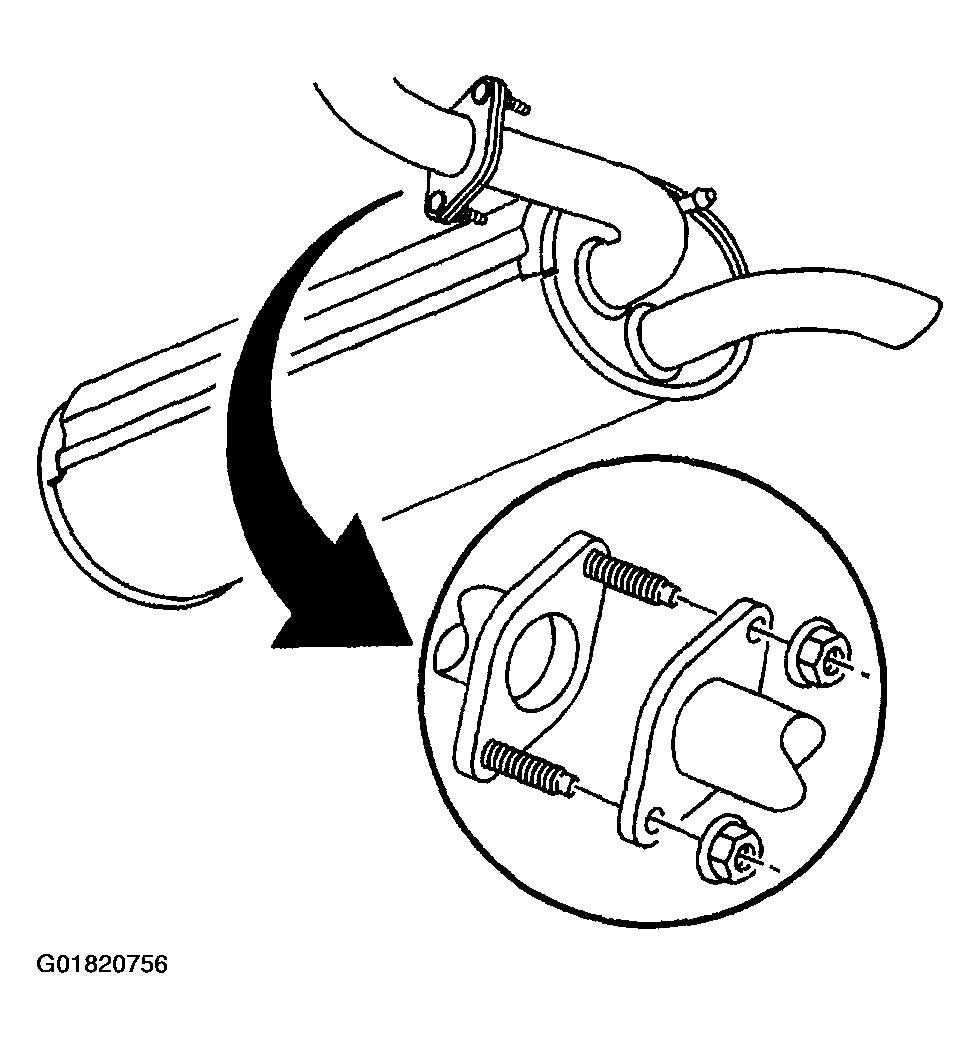

Fig 2: Installing Exhaust Muffler To Intermediate Pipe
Courtesy of GENERAL MOTORS CORP.
