Main Fuse Block Connector Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

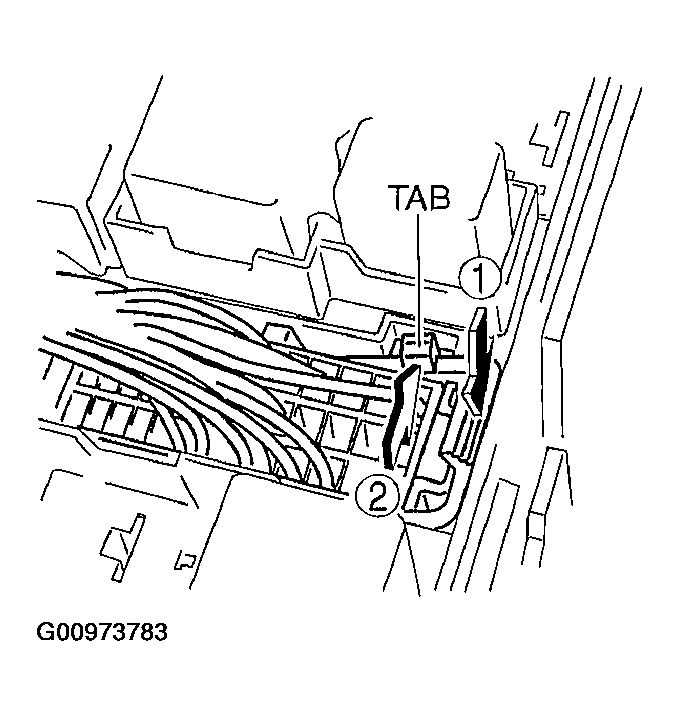

Release the tab in the order shown in the figure.

Fig 1: Tab Releasing Sequence
Courtesy of MAZDA MOTORS CORP.
Pull the lock lever up and remove the connector.
