Charcoal Canister Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the charcoal canister protector.

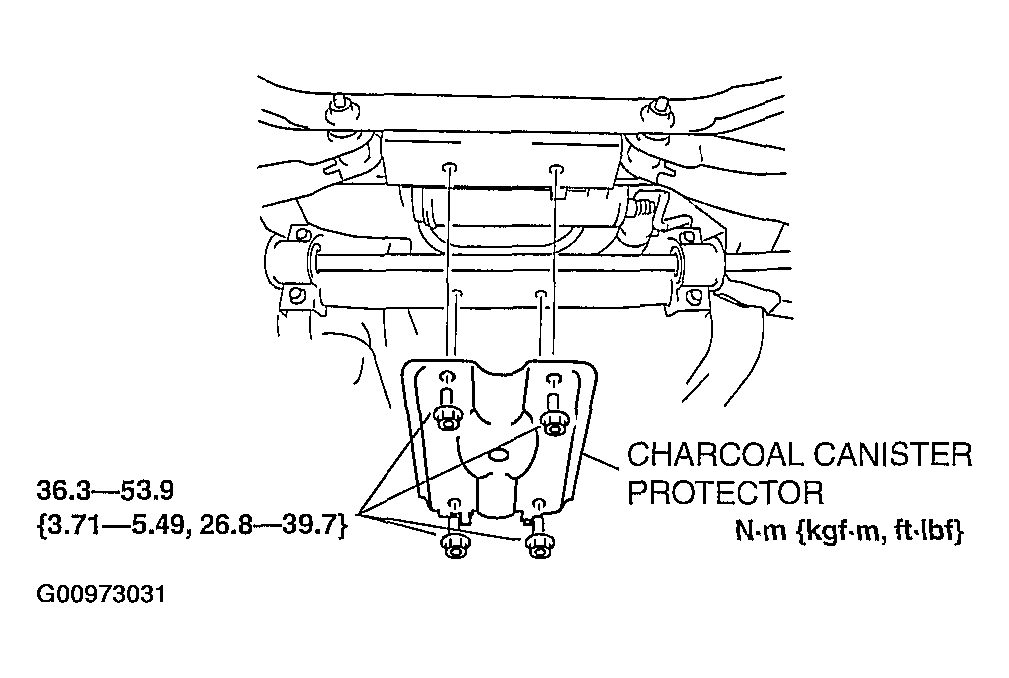

Fig 1: Charcoal Canister Protector With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.

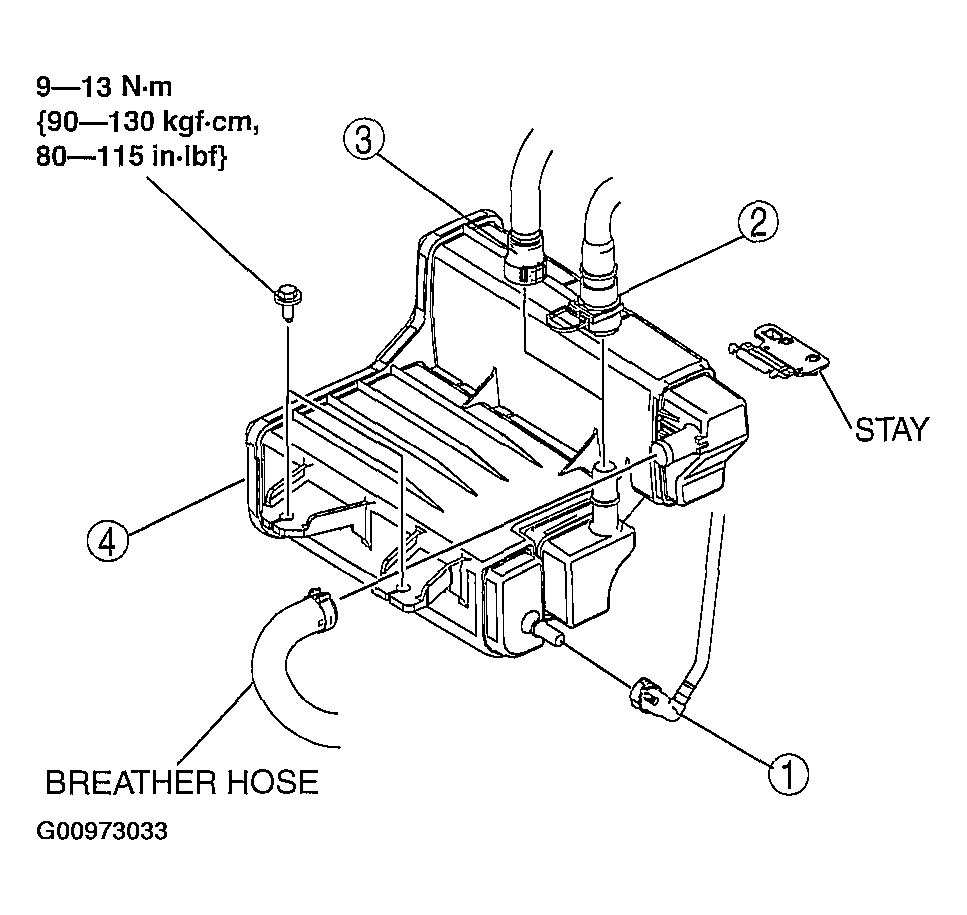

Fig 2: Charcoal Canister With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

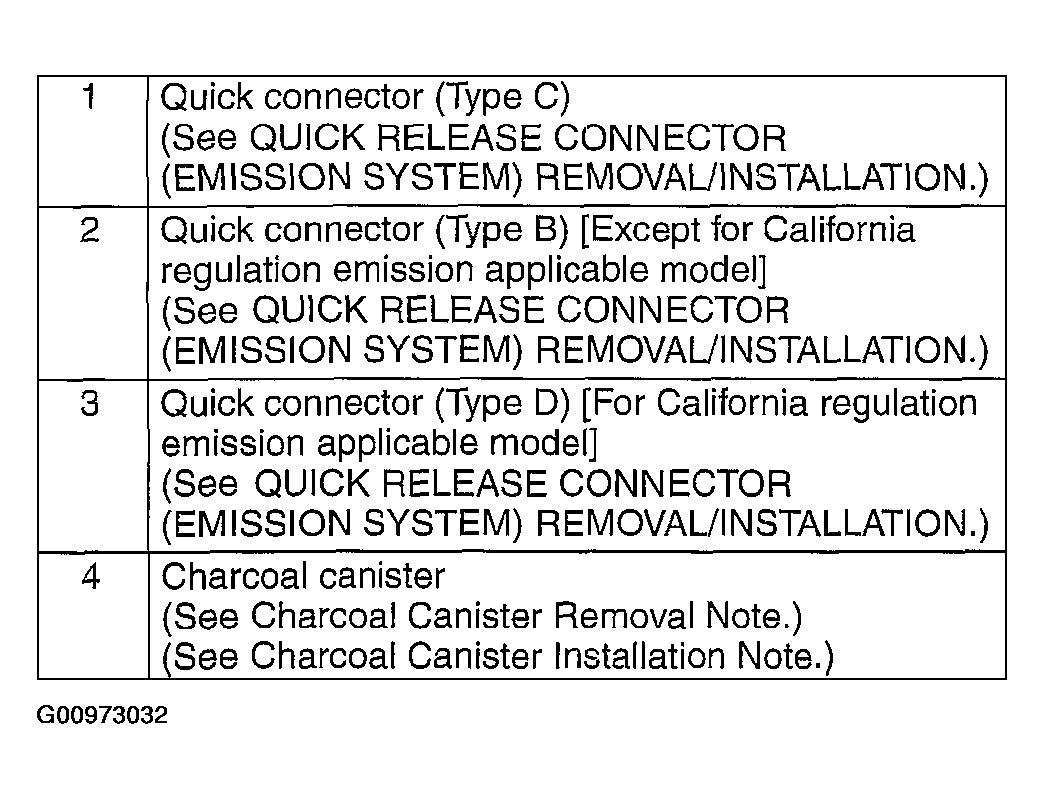

Fig 3: Removal Order Of Charcoal Canister Table
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Verify that the rear wheel alignment is within the specification. (See REAR WHEEL ALIGNMENT .)
