Glove Compartment Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Front scuff plate (Passenger's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (Passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Remove the socket, then remove the glove compartment light bulb.
  4. Install in the reverse order of removal.

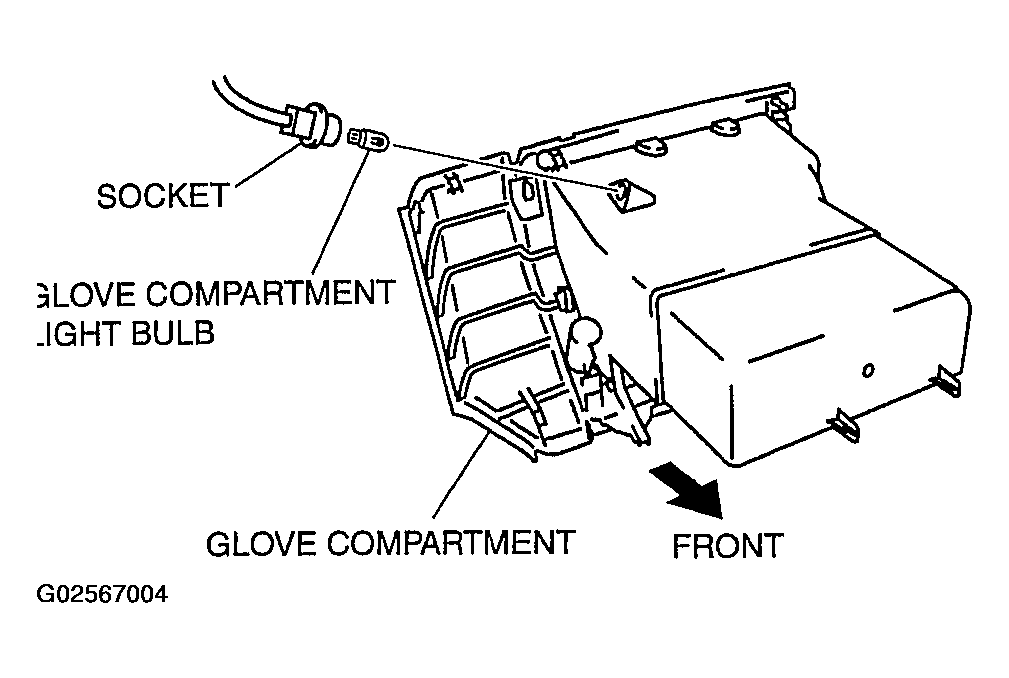

    Fig 1: Removing/Installing Glove Compartment Light Bulb
    G02567004Courtesy of MAZDA MOTORS CORP.
