Horn Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Slightly bend back the mudguard.
Remove in the order indicated in the table.

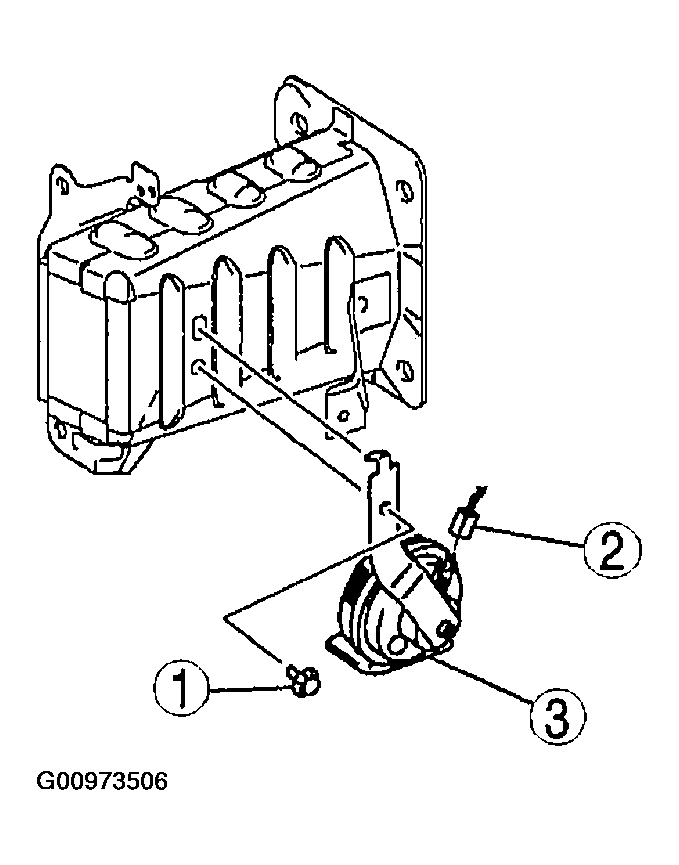

Fig 1: Removing/Installing Horn
Courtesy of MAZDA MOTORS CORP.

Fig 2: Horn Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
