Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front center seat on top of the floor locating studs.
  2. Install the front left and right bucket seats. Refer to SEAT REPLACEMENT - FRONT BUCKET  .

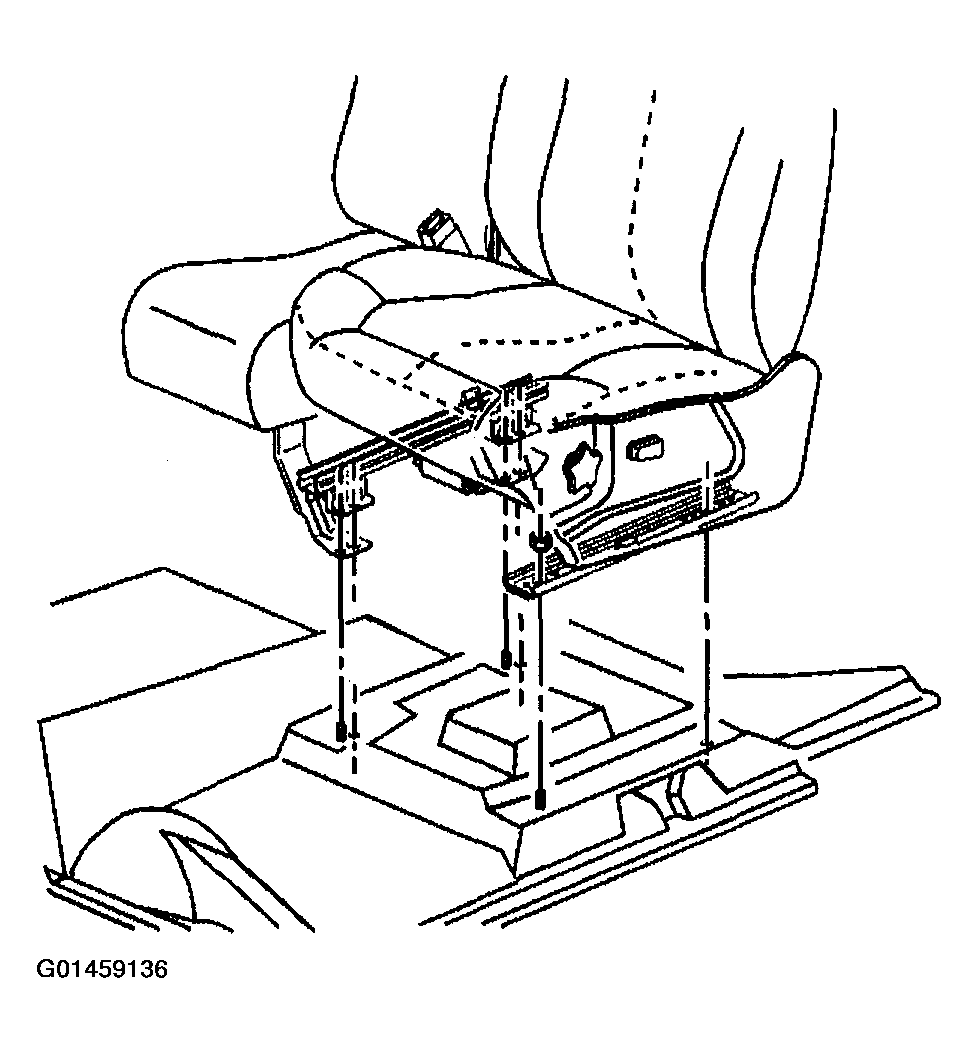

    Fig 1: Installing Center Seat
    G01459136Courtesy of GENERAL MOTORS CORP.
