Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the trim panel on the seat from the front to the back.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Instal the trim panel (1) to the seat by pushing in until the retaining clips are locked in place.
  3. Install the screws retaining the seat back release handle and the seat recliner handle to the seat, if, removed.

    Tighten

    1. Tighten the screws to 2 N.m (18 lb in).

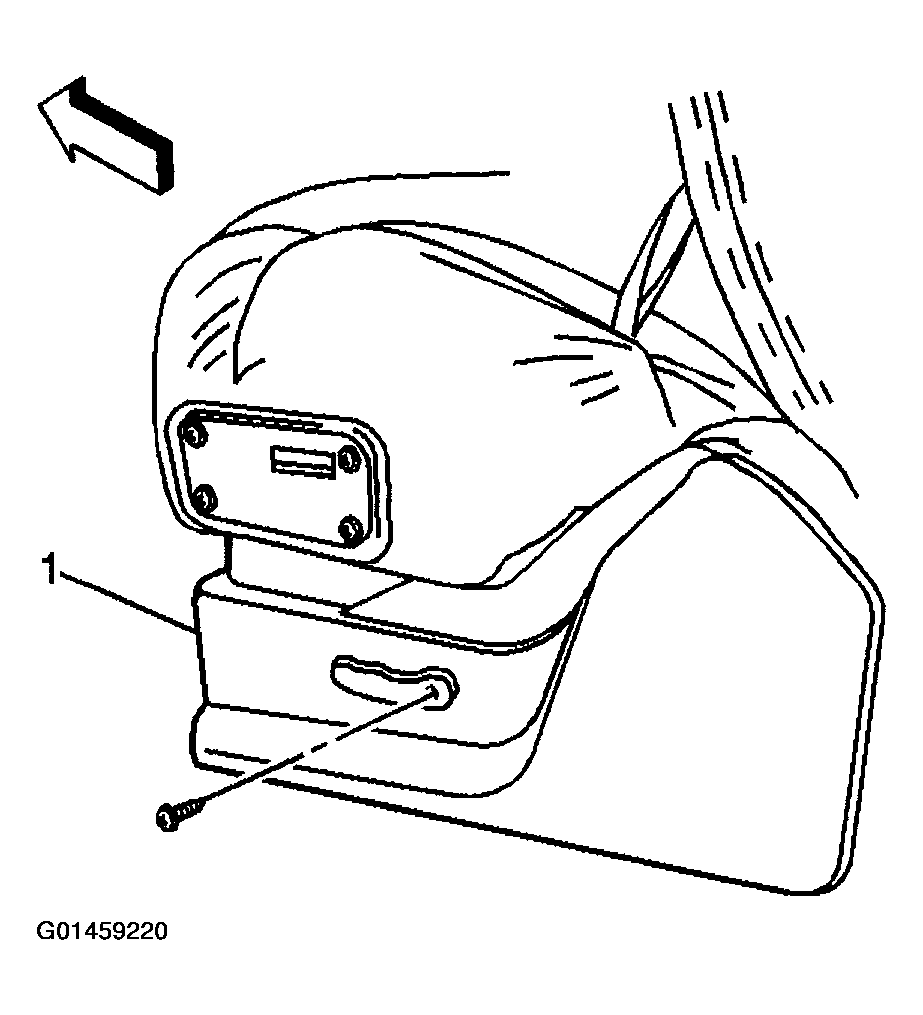

    Fig 1: Installing Screws Retaining Seat Back Release Handle
    G01459220Courtesy of GENERAL MOTORS CORP.
