Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the recirculation actuator.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the recirculation actuator retaining screws.
Tighten

Tighten the screws to 1.6 N.m (14 lb in).

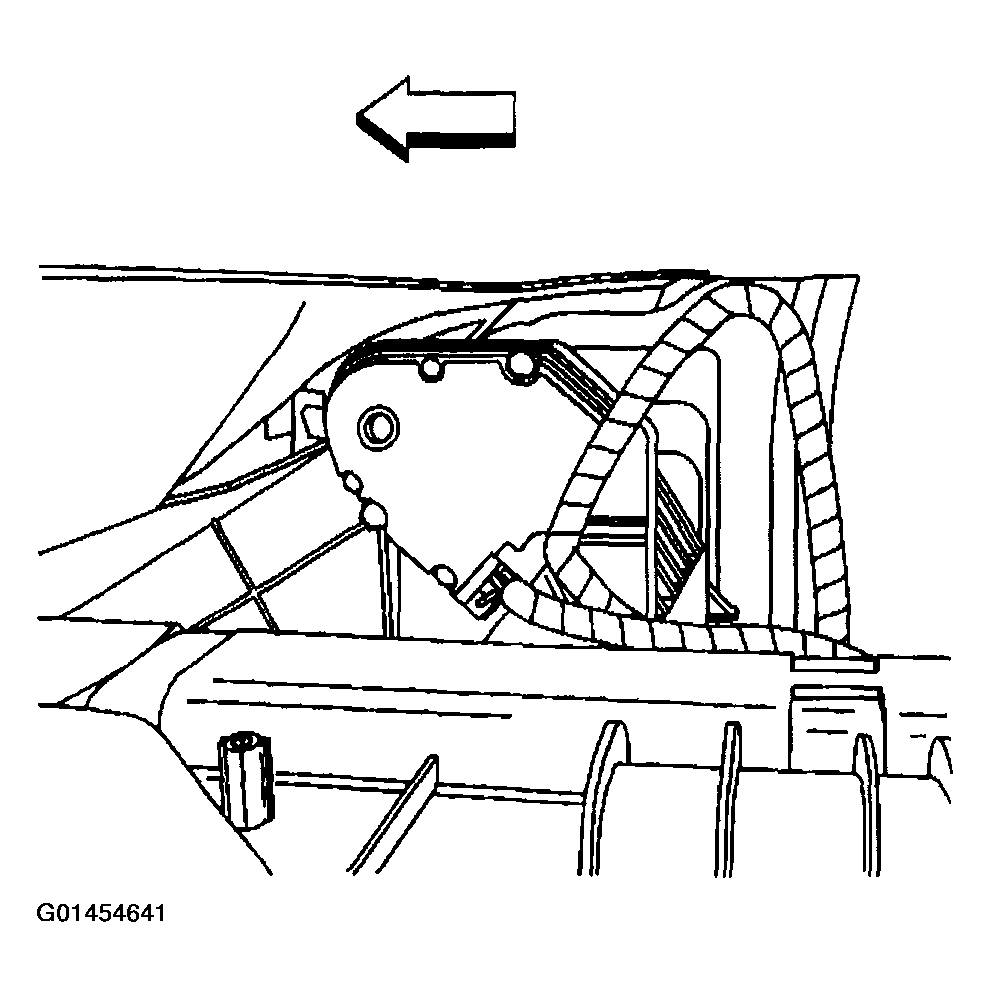

Fig 1: Installing Recirculation Actuator & Retaining Screws
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the recirculation actuator (1).
Install the air distribution duct. Refer to AIR DISTRIBUTOR DUCT REPLACEMENT .

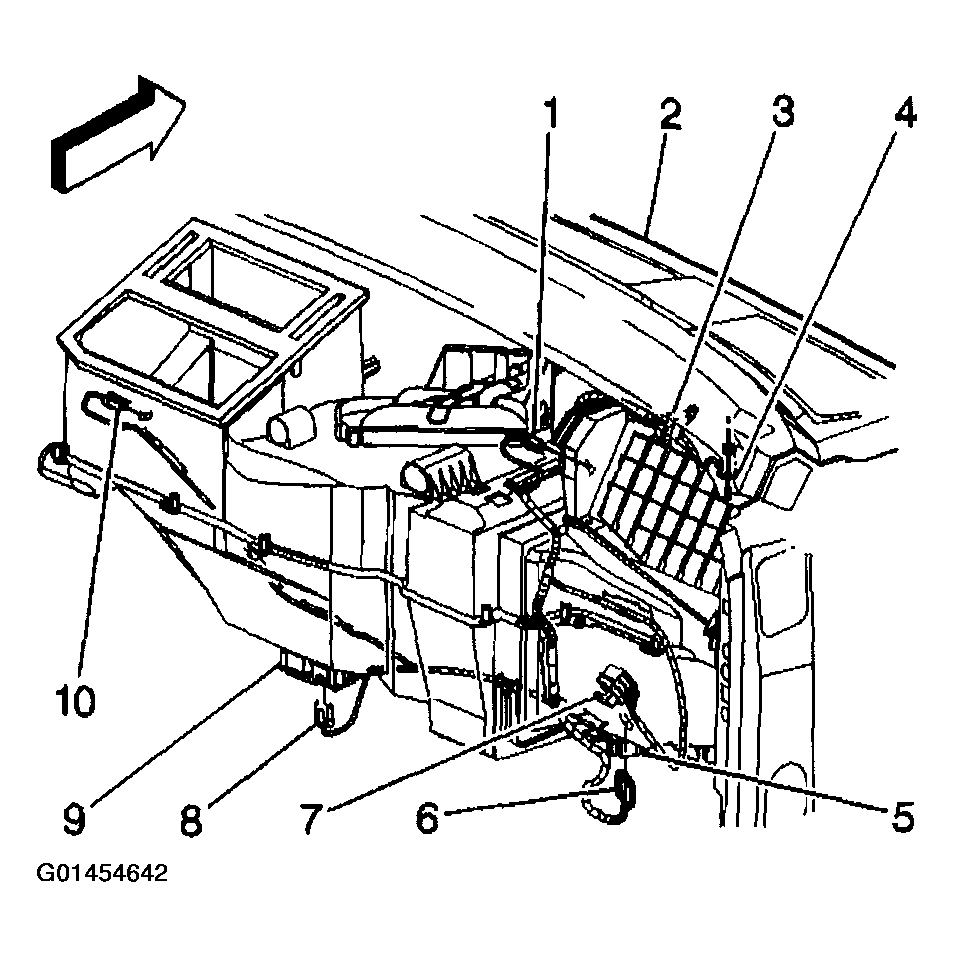

Fig 2: Connecting Electrical Connection To Recirculation Actuator
Courtesy of GENERAL MOTORS CORP.
