Engine Flywheel Installation

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the flywheel.
Install the flywheel retainer.
Install the flywheel bolts.
Tighten

Tighten the flywheel bolts to 71 N.m (52 lb ft).

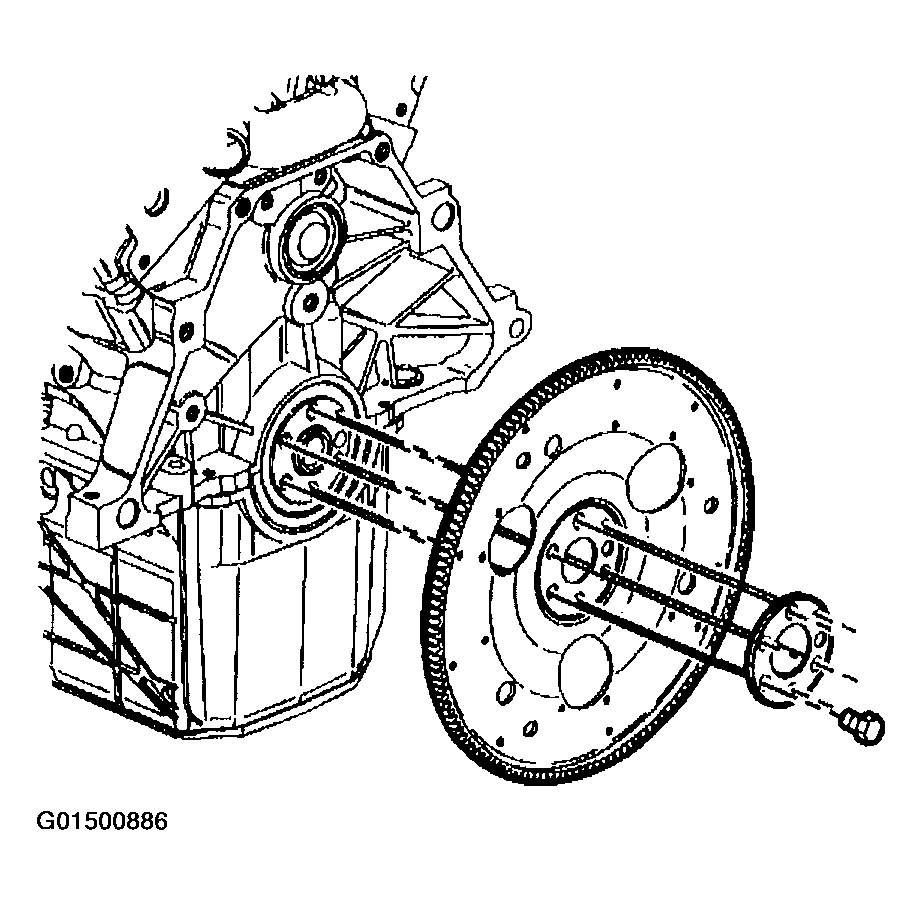

Fig 1: Installing Flywheel And Flywheel Retainer
Courtesy of GENERAL MOTORS CORP.
