Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine flywheel and bolts

    Tighten

    Tighten bolts to 71 N.m (52 lb ft).

  2. Install the automatic transaxle. Refer to TRANSMISSION REPLACEMENT .

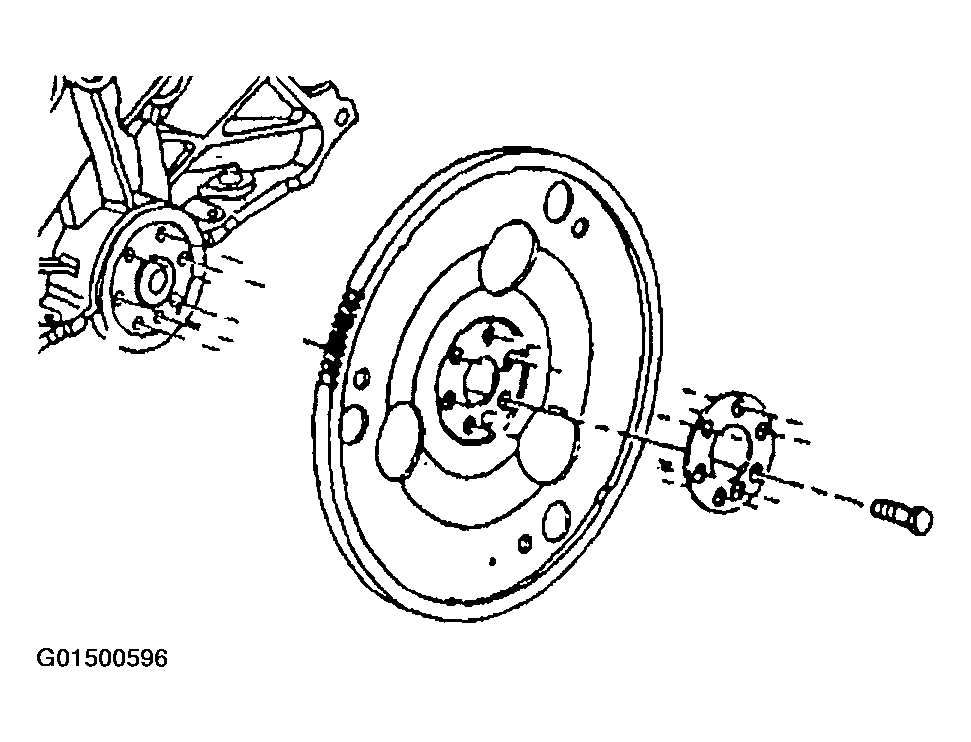

    Fig 1: Installing Engine Flywheel And Bolts
    G01500596Courtesy of GENERAL MOTORS CORP.
