Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Press the upper end of the assist rods on to the ball joint on the hood.

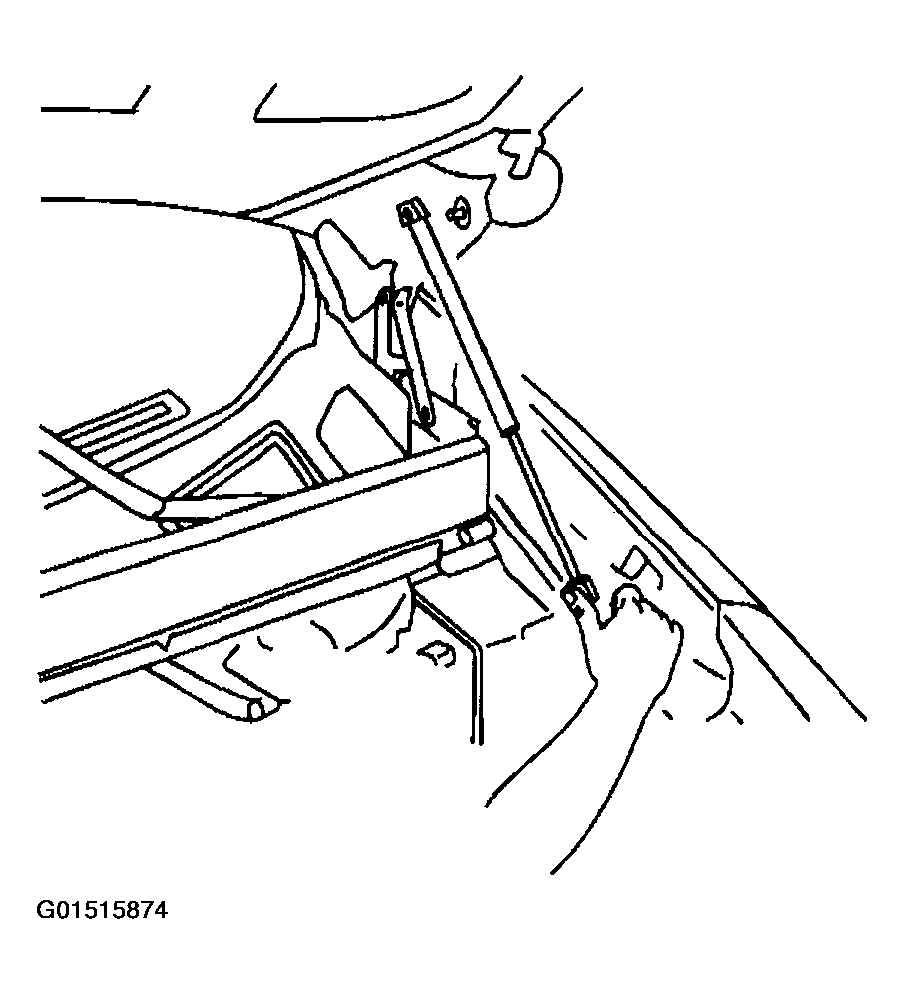

Fig 1: Pressing Upper End Of Assist Rods On To Ball Joint
Courtesy of GENERAL MOTORS CORP.
Press the lower end of the assist rods on to the ball joint on the lower hood hinge
Remove the support from the hood.
Close the hood.

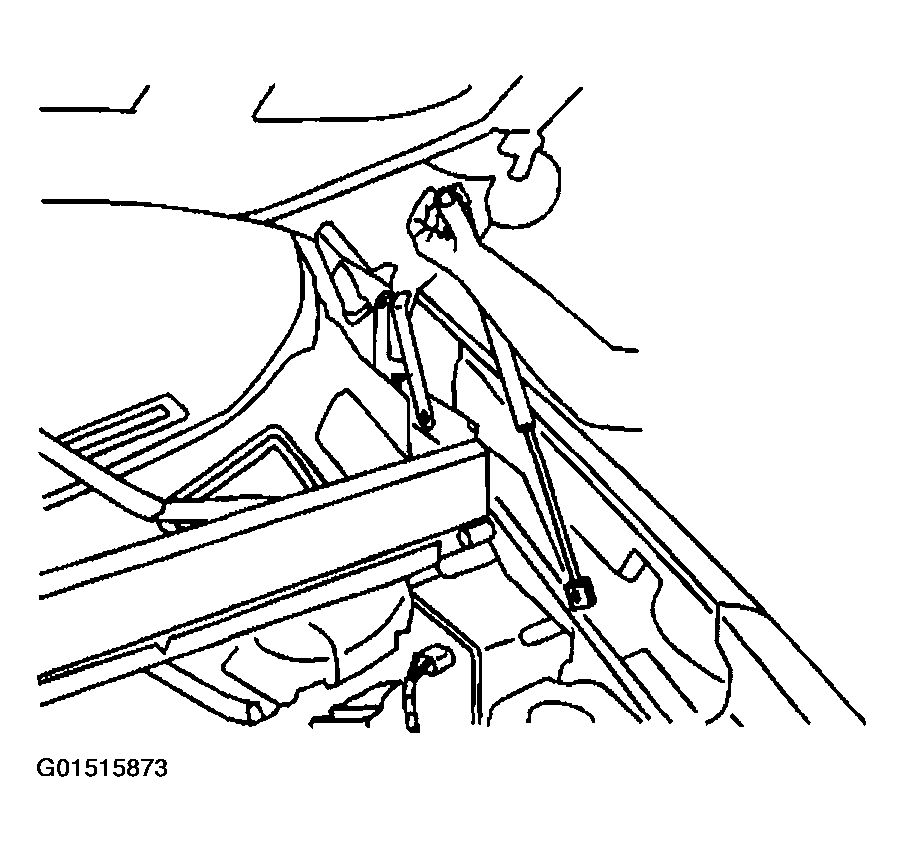

Fig 2: Pressing Lower End Of Assist Rods On To Ball Joint
Courtesy of GENERAL MOTORS CORP.
