Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

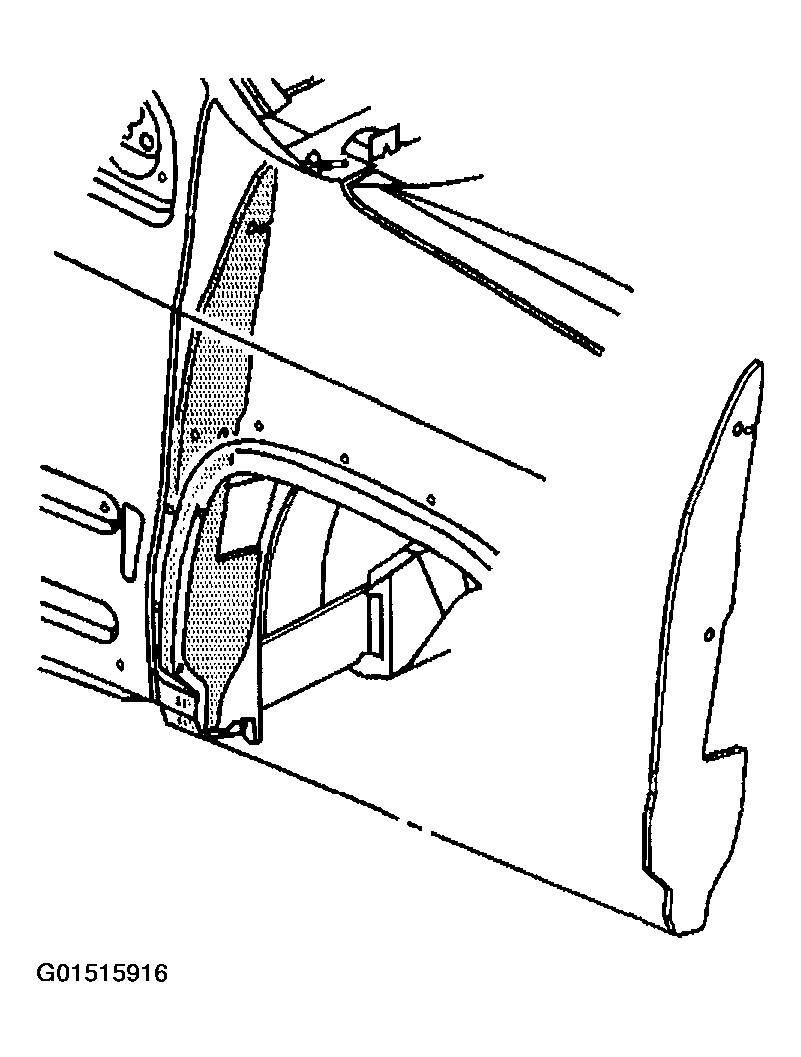

Important: The front fender insulator must be kept near the flange of the front fender wheel opening to avoid interference with the front door edge.
- Install the front fender insulator to the stud in the inner fender, pressing into place until fully seated.
- Install the front fender liner. Refer to FRONT FENDER LINER REPLACEMENT .
