Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

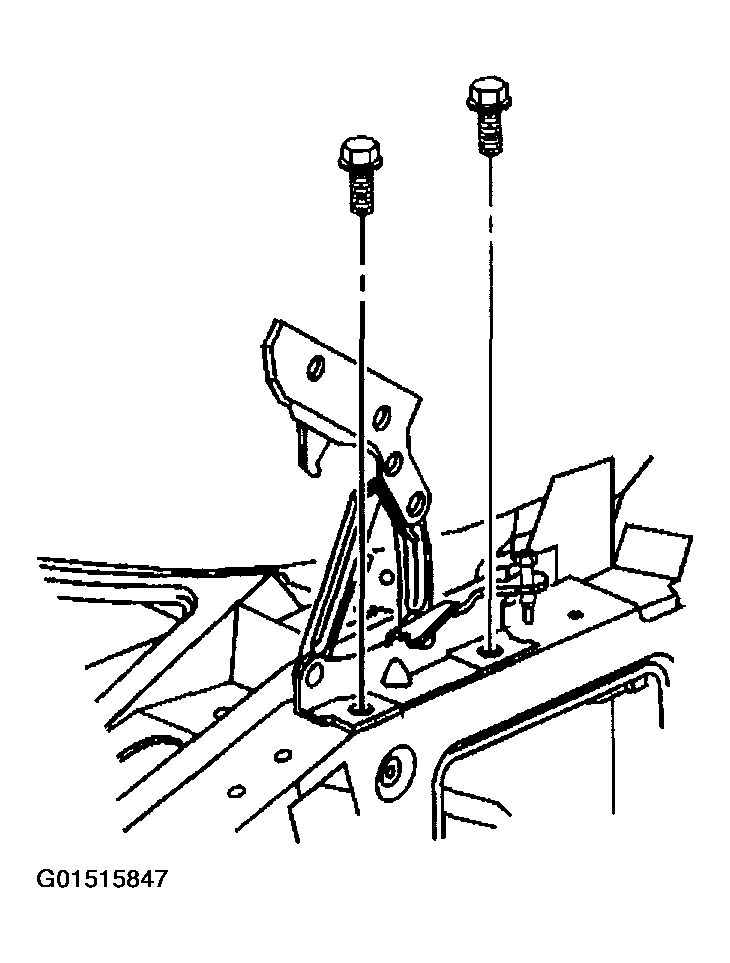

- Position the hood hinge to the fender.
- Install the hood hinge to fender bolts.
Tighten
Tighten the hood hinge to fender bolts to 6 N.m (53 lb in).
- Install the hood. Refer to HOOD REPLACEMENT .
- Install the hood assist rod. Refer to ASSIST ROD REPLACEMENT - HOOD .
- Install the hood rear side seal. Refer to SEAL REPLACEMENT - HOOD REAR SIDE .
- Adjust the hood, as required. Refer to HOOD ADJUSTMENT .
