Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood release cable to the hood release handle.

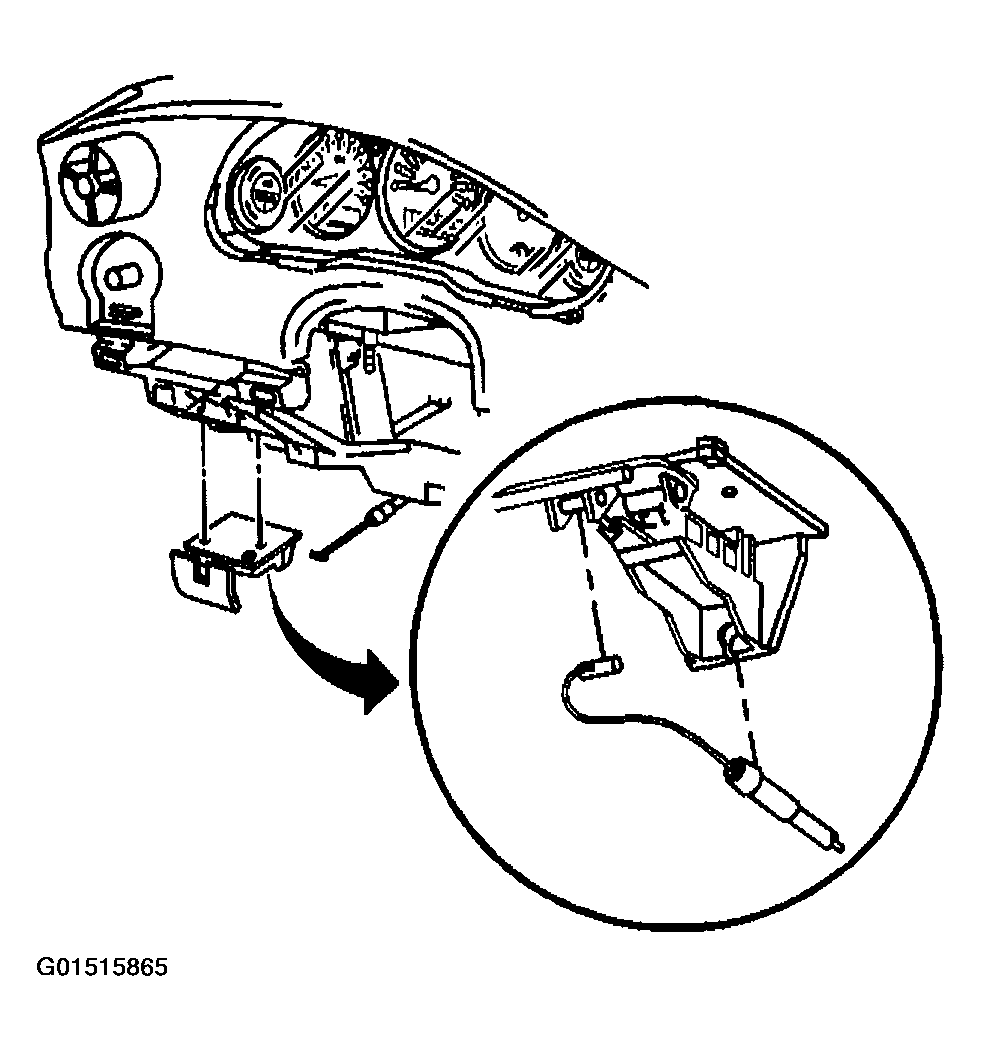

    Fig 1: Installing Hood Release Cable To Hood Release Handle
    G01515865Courtesy of GENERAL MOTORS CORP.
  2. Install the hood release handle to the instrument panel.
  3. Install the bolts to hood release handle base.

    Tighten

    Tighten the hood release handle base bolts to 2 N.m (18 lb in).

  4. Install the knee bolster panel. Refer to KNEE BOLSTER REPLACEMENT .
  5. Install the left IP Insulator Panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .

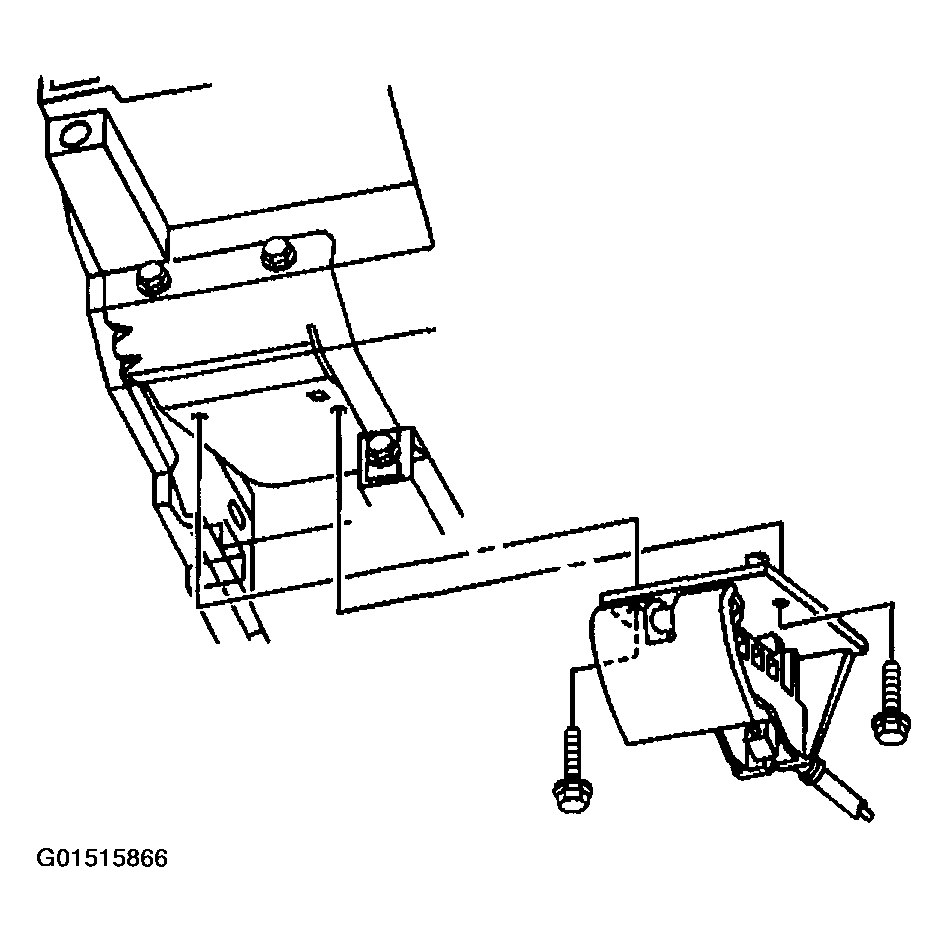

    Fig 2: Installing Bolts To Hood Release Handle Base
    G01515866Courtesy of GENERAL MOTORS CORP.
