Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Raise and suitably support the vehicle.
Remove the tire and wheel assembly.
Remove the front wheel drive shaft bearing. Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT .
Remove the front lower control arm ball stud. Refer to LOWER CONTROL ARM REPLACEMENT .

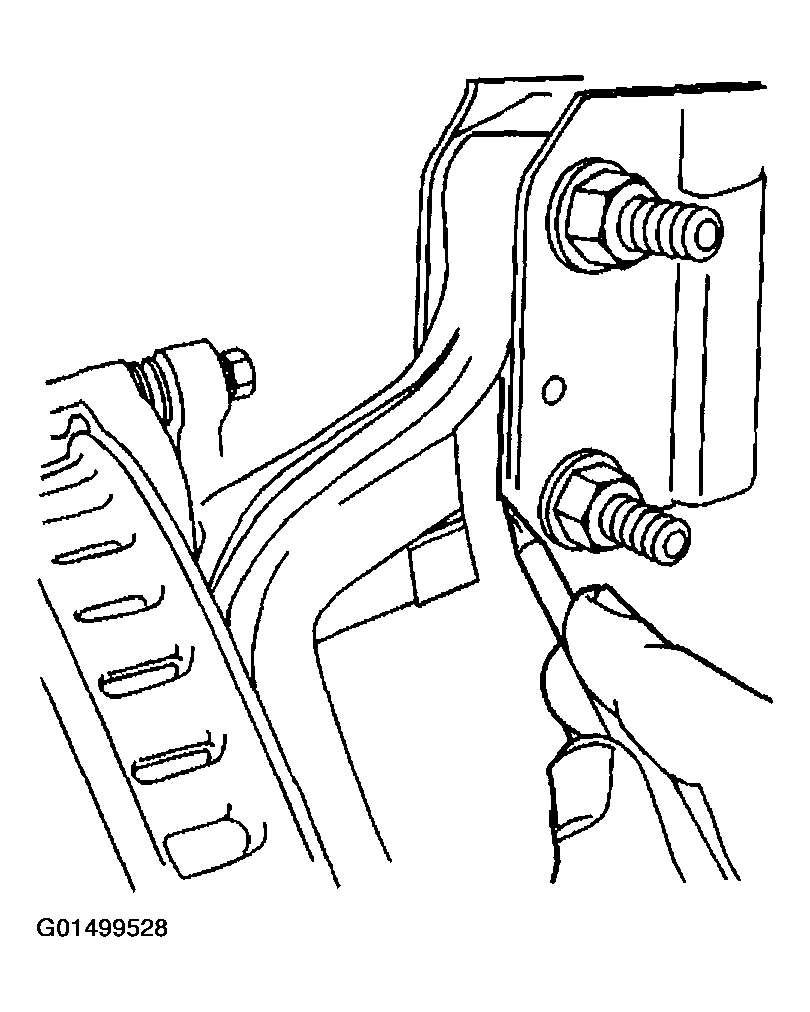

Fig 1: Scribing Strut To Knuckle
Courtesy of GENERAL MOTORS CORP.
Remove the outer tie rod end from the steering knuckle. Refer to TIE ROD END REPLACEMENT - OUTER .
Scribe the strut to the knuckle.
Remove the bolts connecting the strut to the knuckle.
Remove the knuckle from the vehicle.

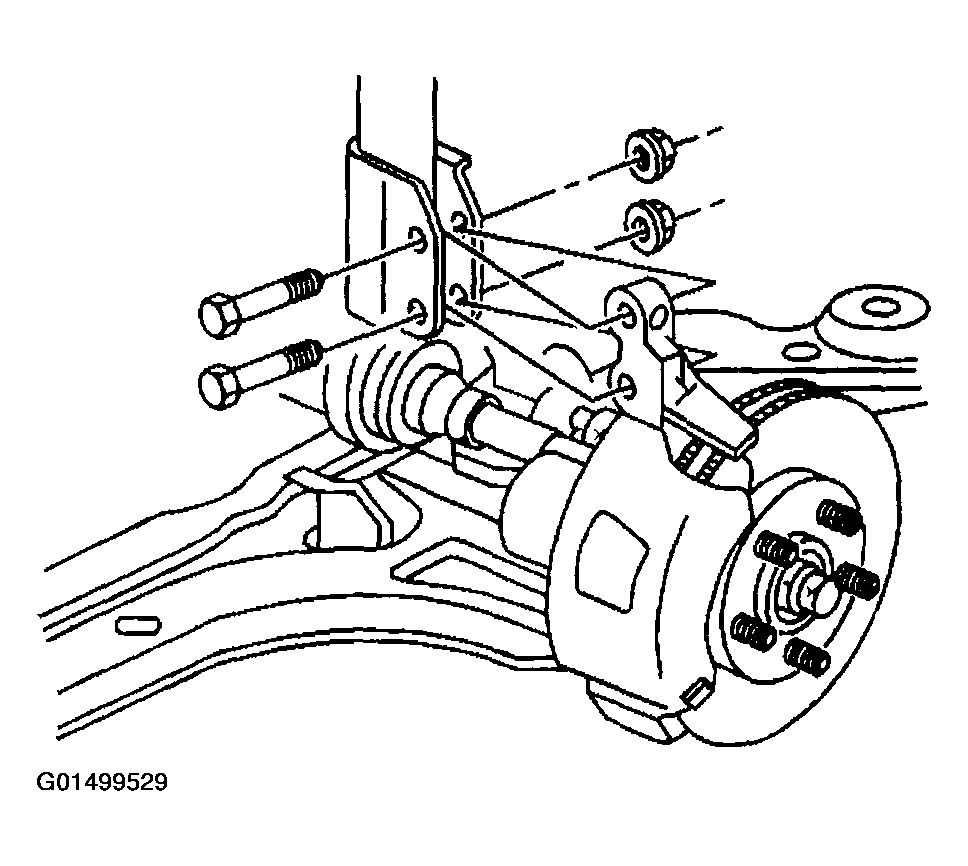

Fig 2: Removing Knuckle
Courtesy of GENERAL MOTORS CORP.
