Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wheel bearing/hub.
  2. Install NEW wheel bearing/hub bolts.

    Tighten  Tighten the new wheel bearing/hub bolts to 130 N.m(96 lb ft).

  3. Install the brake rotor. Refer to BRAKE ROTOR .
  4. Install the wheel drive shaft nut. Refer to AXLE SHAFT in Front Axle.

    Important:  Ensure that the connector clip engages the bracket properly.

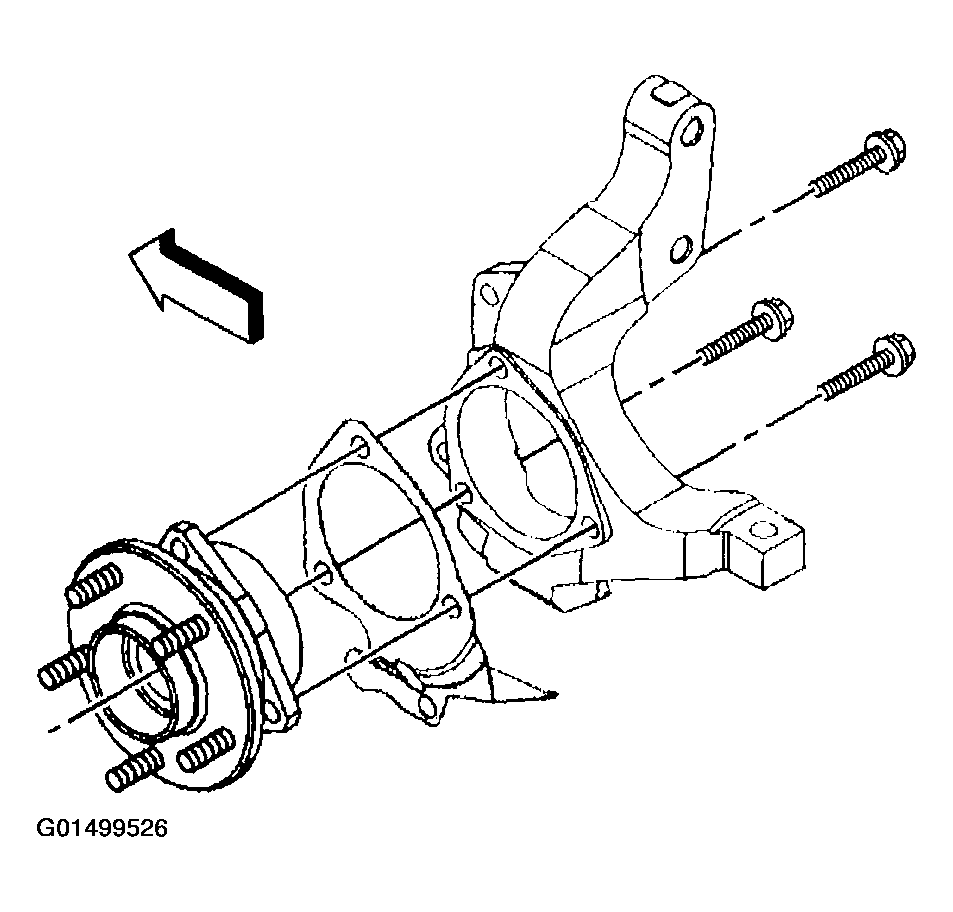

    Fig 1: Installing Wheel Bearing/Hub
    G01499526Courtesy of GENERAL MOTORS CORP.
  5. Install the wheel speed sensor electrical connector to the bracket.
  6. Connect the wheel speed sensor electrical connector.
  7. Install the tire and wheel.
  8. Lower the vehicle.

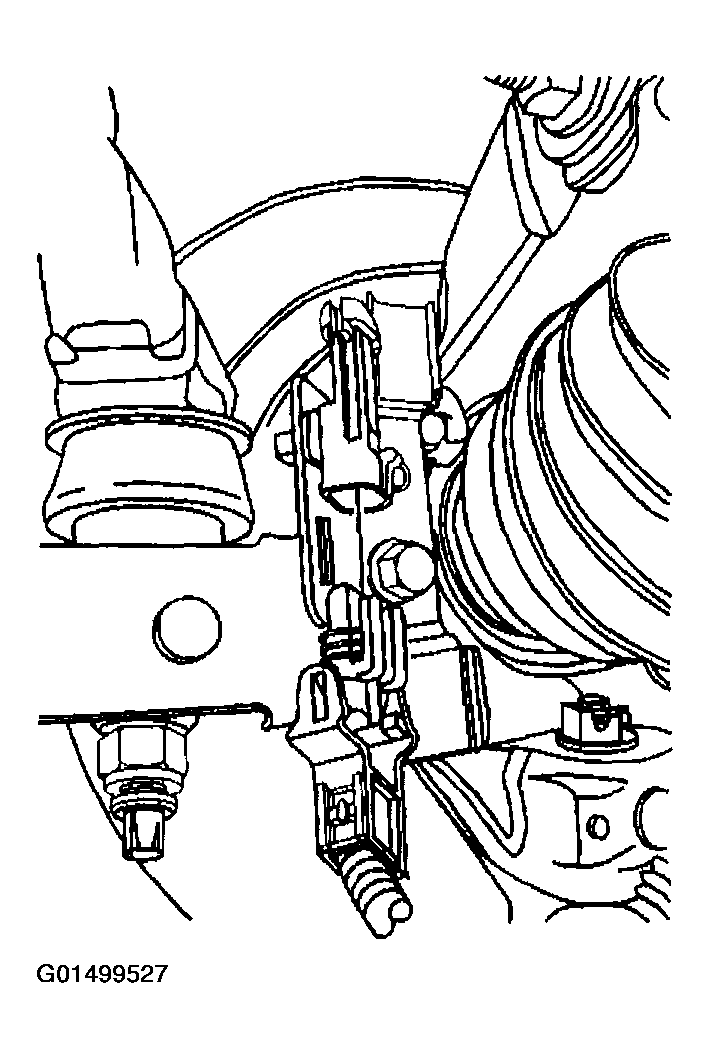

    Fig 2: Connecting Wheel Speed Sensor Electrical Connector
    G01499527Courtesy of GENERAL MOTORS CORP.
