Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If you are replacing the wheel(s), the wheel stud(s), the wheel nut(s) or the wheel bolt(s), install only new GM original equipment parts. Installation of used parts or non-GM original equipment parts may cause the wheel to loosen, loss of tire air pressure, poor vehicle handling and loss of vehicle control resulting in personal injury.

Raise and support the vehicle.
Remove the tire and wheel.

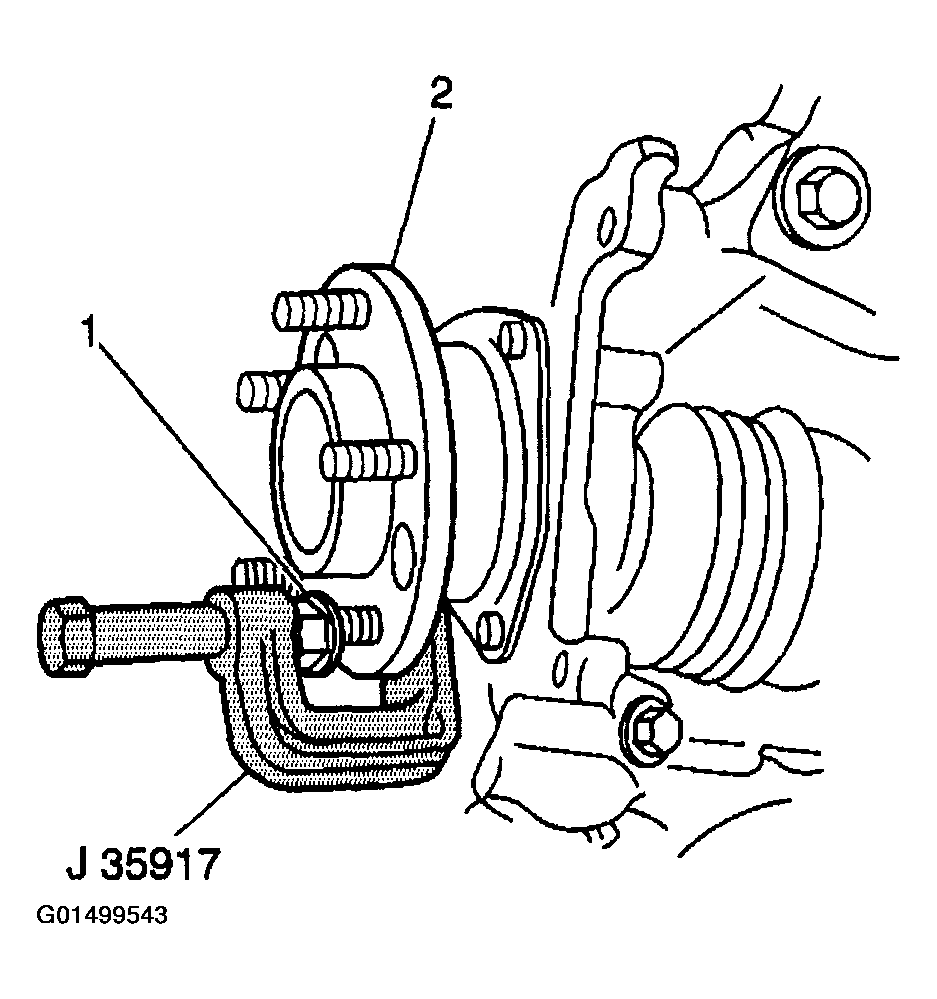

Fig 1: Pressing Wheel Stud From Bearing/Hub
Courtesy of GENERAL MOTORS CORP.
Remove the brake rotor. Refer to BRAKE ROTOR .
Use the J 35917 in order to press the wheel stud (1) from the bearing/hub (2).
