Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Roll the second row seats forward.
Fold the third row seat down.

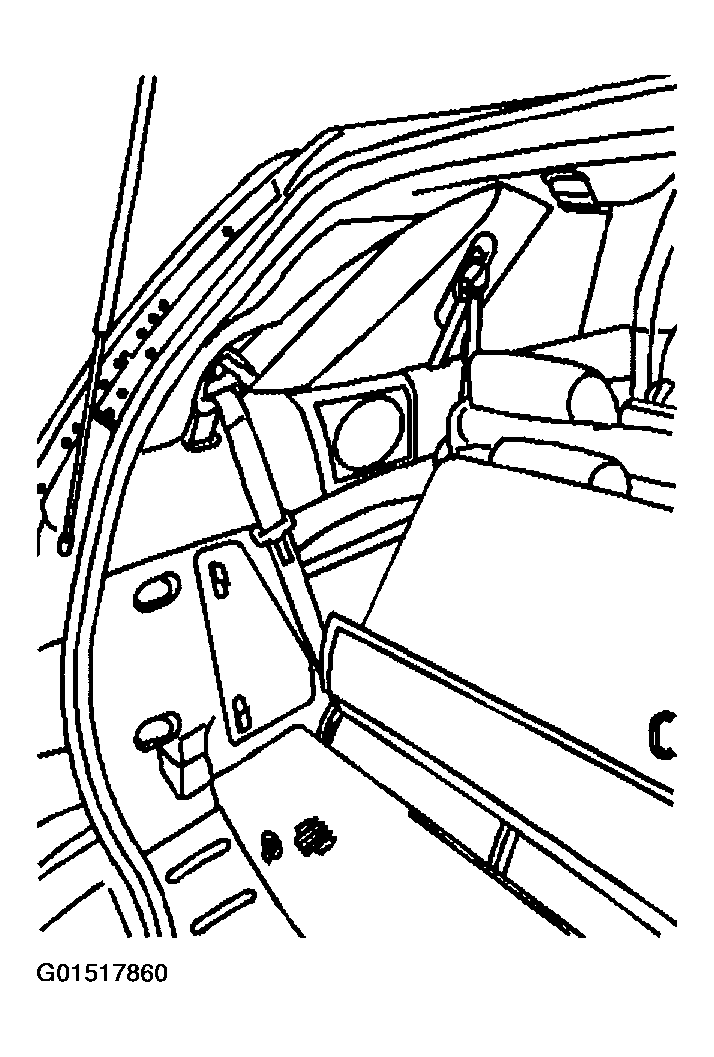

Fig 1: Folding Third Row Seat Down
Courtesy of GENERAL MOTORS CORP.
Open the guide loop covers from the left rear seat belt.

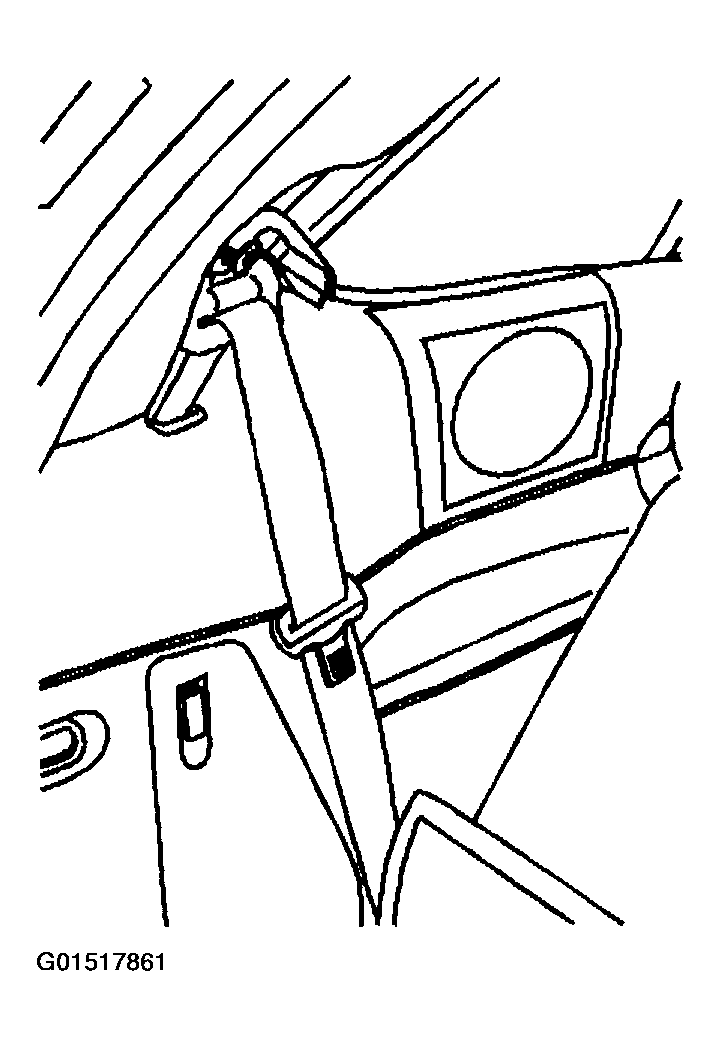

Fig 2: Opening Guide Loop Covers From Left Rear Seat Belt
Courtesy of GENERAL MOTORS CORP.
Remove the guide loop bolts from the second and from the third row seat belts.

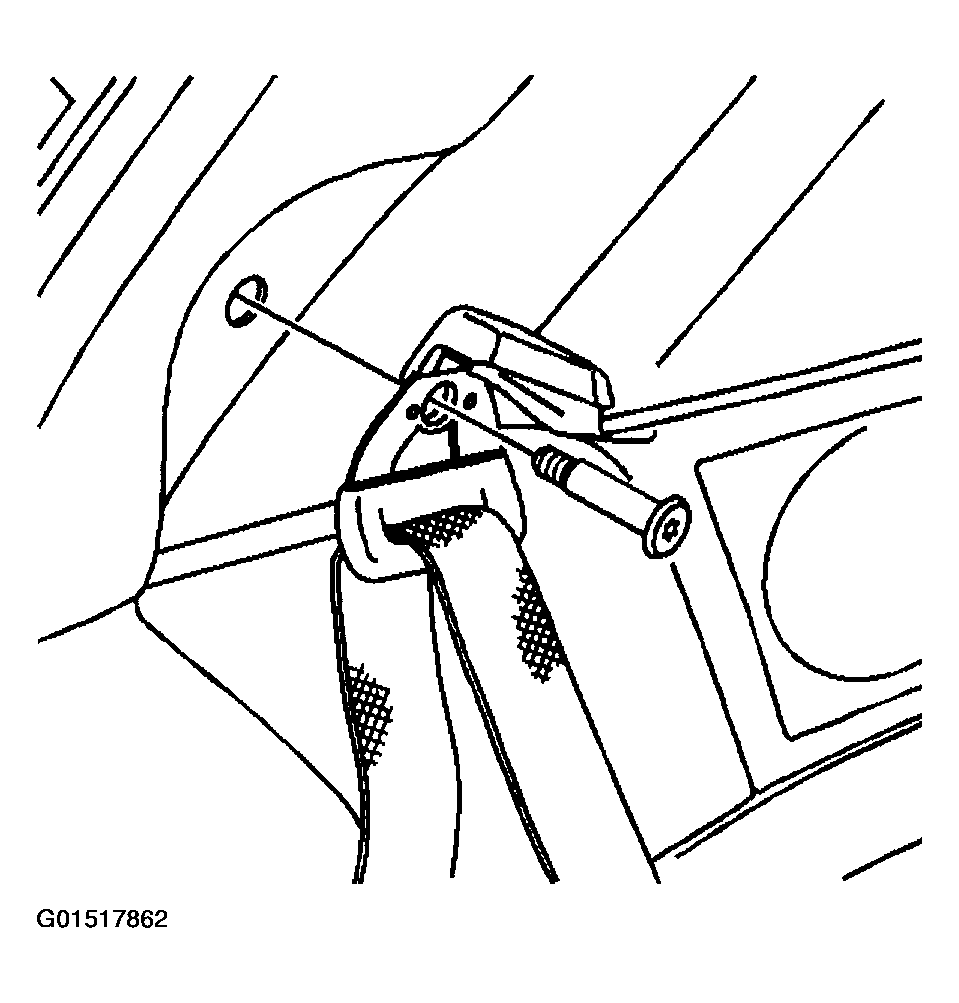

Fig 3: Removing Guide Loop Bolts From Second & Third Row Seat Belts
Courtesy of GENERAL MOTORS CORP.
Remove the upper trim from the second and third row pillars.

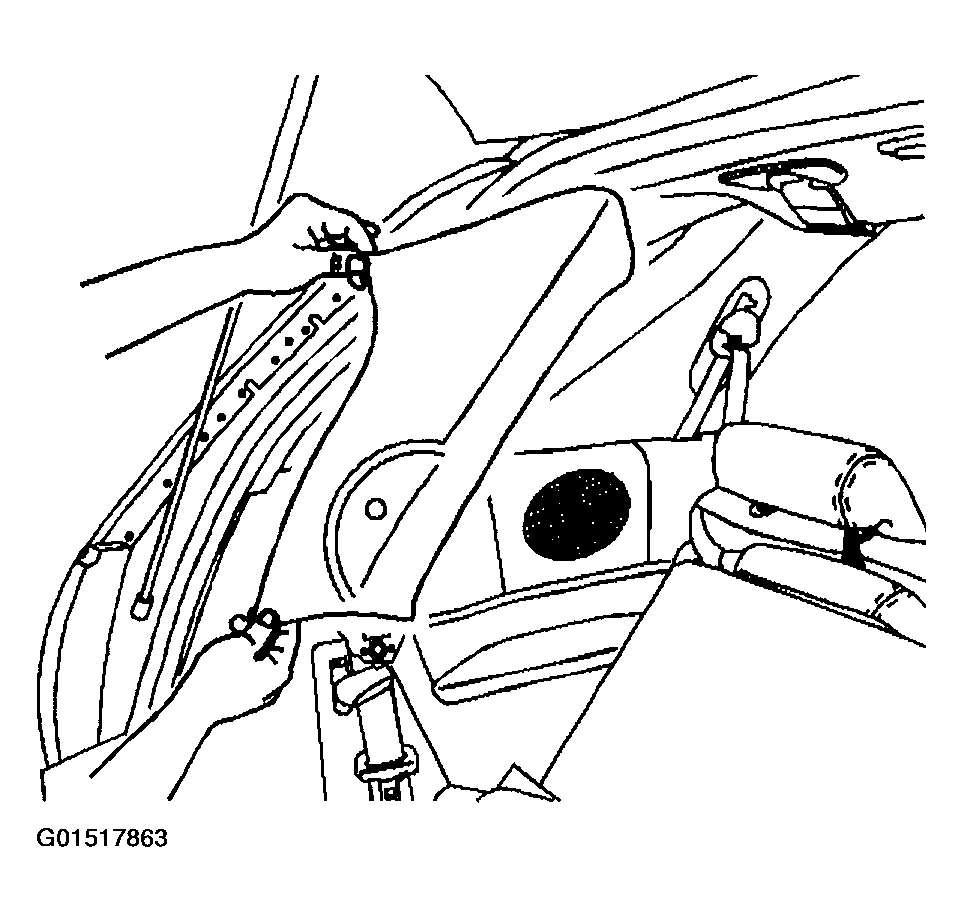

Fig 4: Removing Upper Trim From Second & Third Row Pillars
Courtesy of GENERAL MOTORS CORP.
Remove the storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT -- REAR (RENDEZVOUS) .
Remove the rear liftgate sill.

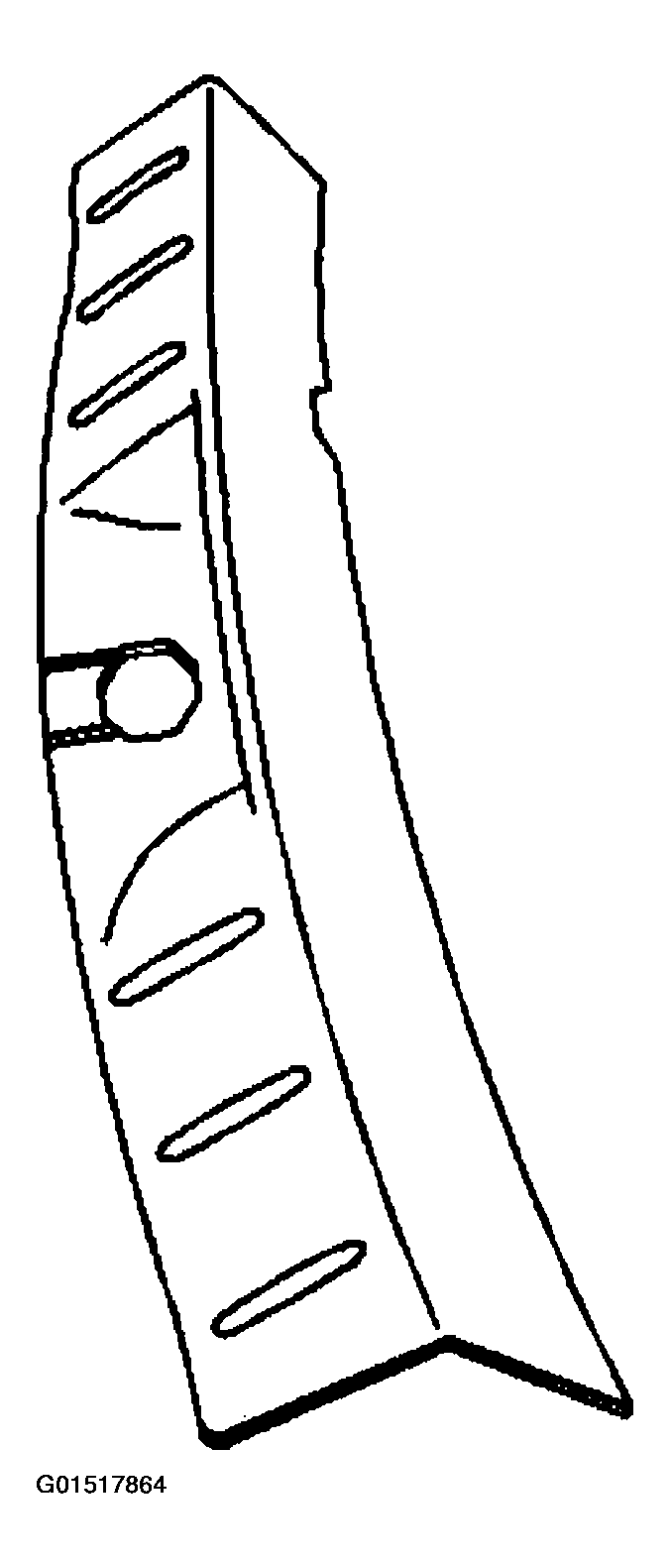

Fig 5: Removing Cargo Tie-Down Loops From Rear Quarter Trim
Courtesy of GENERAL MOTORS CORP.
Remove the cargo tie-down loops from the rear quarter trim.
Pull the top of the quarter trim loose to gain access to the bolts that secure the rear object alarm detection module.
Remove the bolts.
Remove the electrical connector to the module.
Remove the rear object alarm detection module.

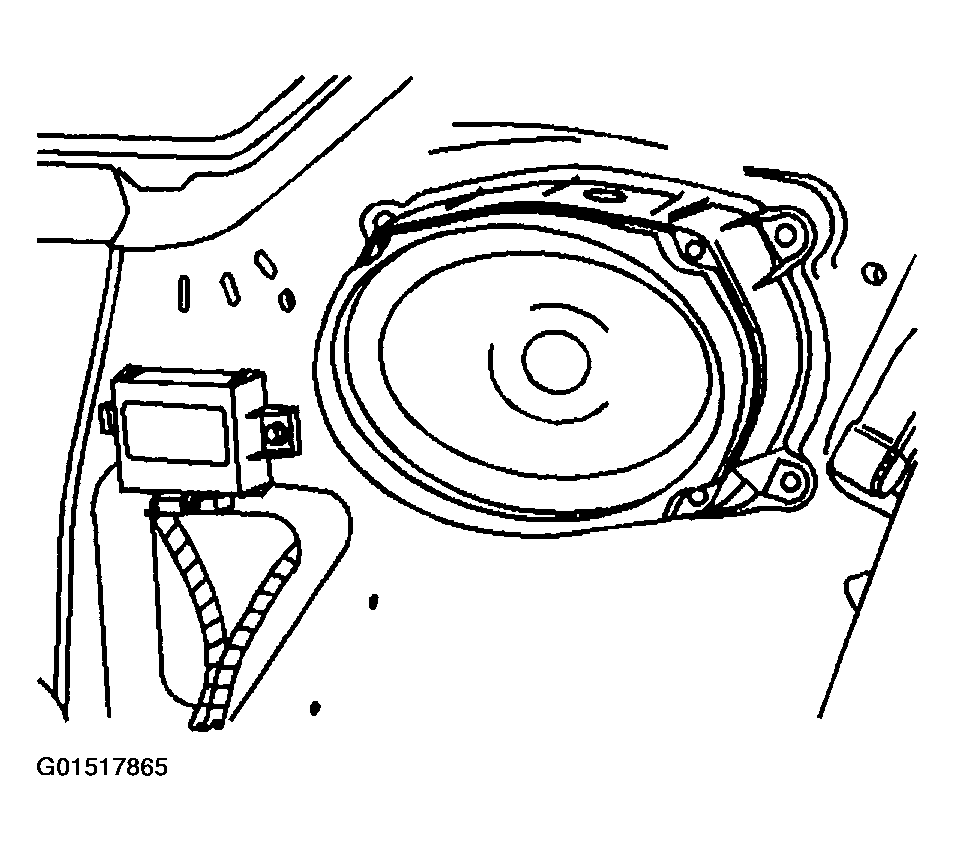

Fig 6: Removing Rear Object Alarm Detection Module
Courtesy of GENERAL MOTORS CORP.
