Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the upper liftgate trim panel to the liftgate by pressing down until fully seated.
Position the defogger harness to the cutout in the upper trim panel.
Install the right and the left side upper trim panel by pressing in until seated.

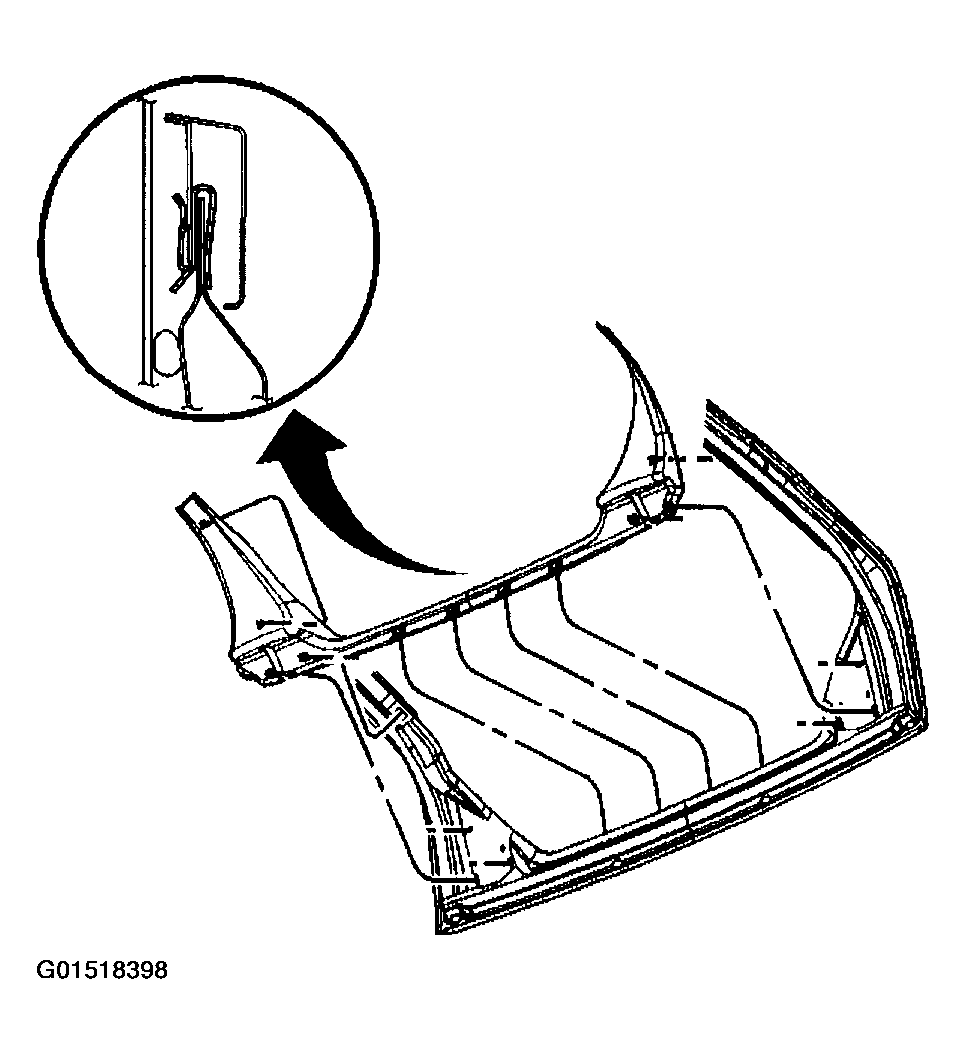

Fig 1: Installing Procedure Trim Panel Replacement - Lift Gate (Aztec - 1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Install the lower trim panels. Press down on the panels until fully seated.
Install the right and left sides of the lower trim panels, pressing in until fully seated.
Close the liftgate.

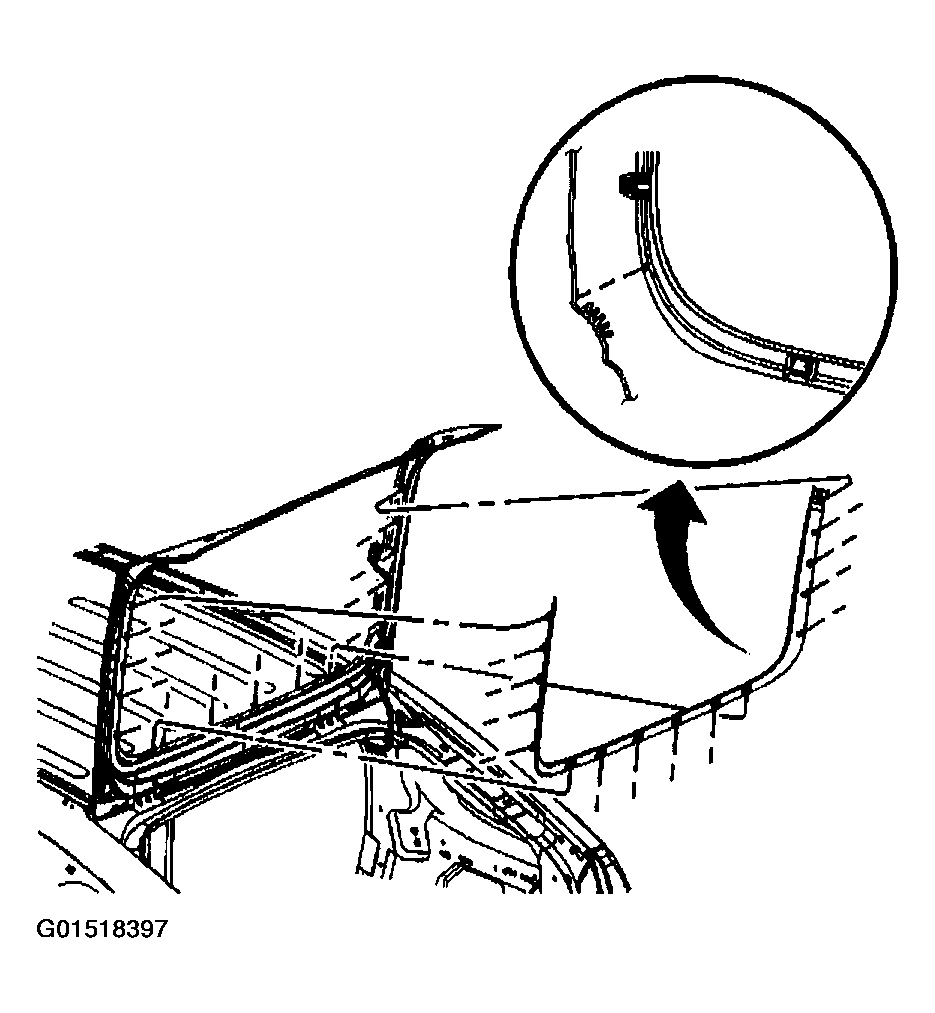

Fig 2: Installing Procedure Trim Panel Replacement - Lift Gate (Aztec - 2 Of 2)
Courtesy of GENERAL MOTORS CORP.
