Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood.

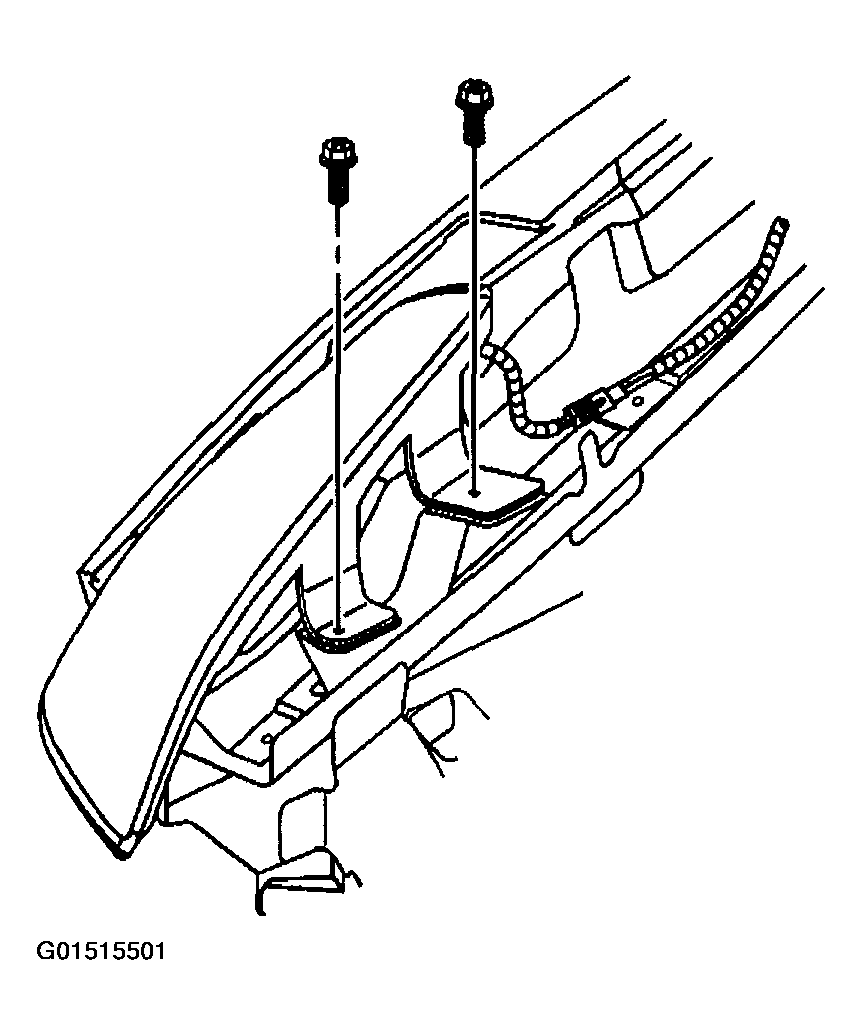

Remove the screws from the front parking/sidemarker lamp.

Fig 1: Park/Turn Signal Lamp Removal - Aztek (1 Of 5)
Courtesy of GENERAL MOTORS CORP.

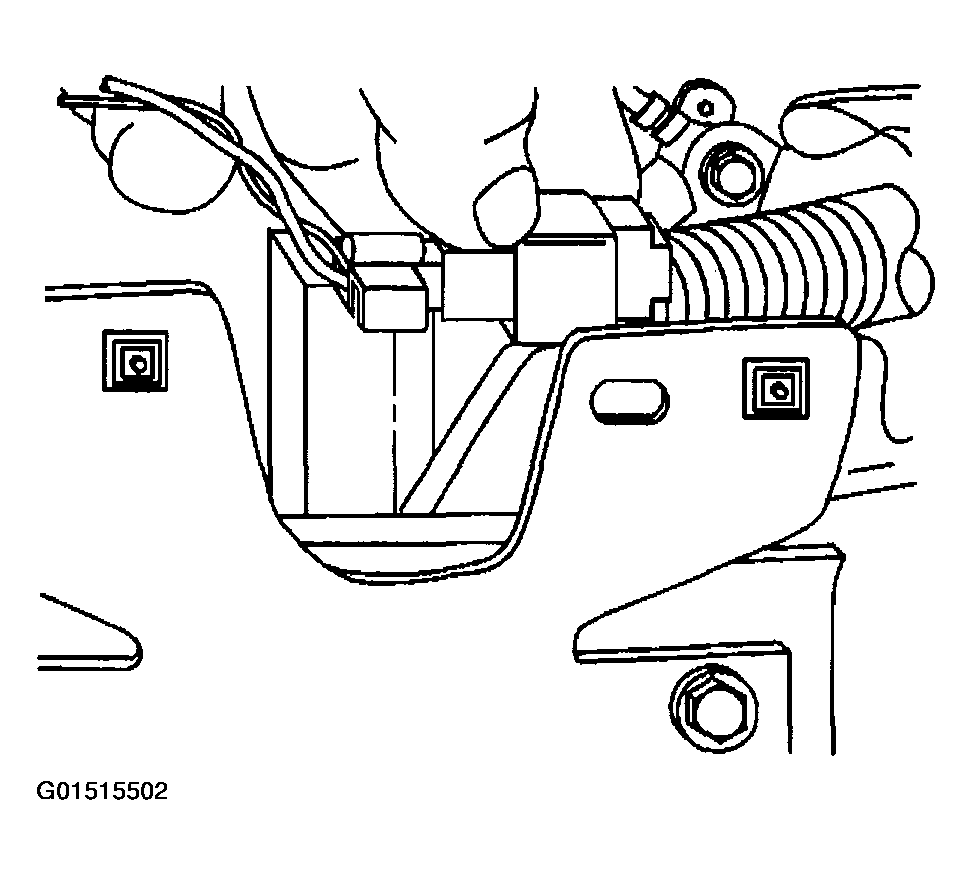

Disconnect the front parking/sidemarker lamp wiring harness from the pinch-weld flange.

Fig 2: Park/Turn Signal Lamp Removal - Aztek (2 Of 5)
Courtesy of GENERAL MOTORS CORP.
Remove the front parking/sidemarker lamp from the front fender.

Fig 3: Park/Turn Signal Lamp Removal - Aztek (3 Of 5)
Courtesy of GENERAL MOTORS CORP.

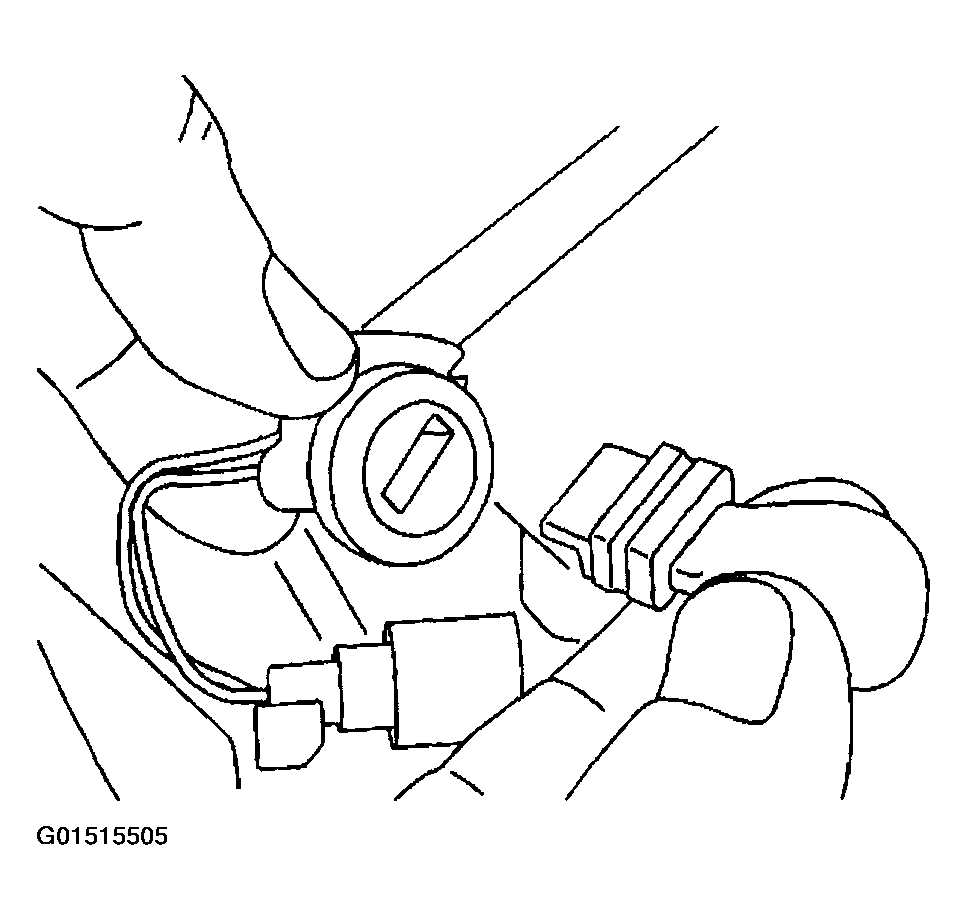

Remove the front parking/sidemarker lamp socket, depressing the locking tab and turning counterclockwise.

Fig 4: Park/Turn Signal Lamp Removal - Aztek (4 Of 5)
Courtesy of GENERAL MOTORS CORP.
Remove the bulb from the front parking/sidemarker lamp socket, if replacing the bulb.

Fig 5: Park/Turn Signal Lamp Removal - Aztek (5 Of 5)
Courtesy of GENERAL MOTORS CORP.
