Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Important: These procedures are applicable to both of the antenna cables in this vehicle.

Remove the radio. Refer to RADIO REPLACEMENT .
Remove the sunshade. Refer to SUNSHADE REPLACEMENT .
Remove the sunshade anchor. Refer to SUNSHADE ANCHOR REPLACEMENT .
Remove the trim panel from the right cowl side.
Refer to TRIM PANEL REPLACEMENT -- COWL SIDE .
Remove the garnish molding from the windshield.
Refer to GARNISH MOLDING REPLACEMENT -- WINDSHIELD PILLAR .
Remove the bolt that secures the antenna cable extension to the roof. This bolt is located under the right front corner of the headliner.

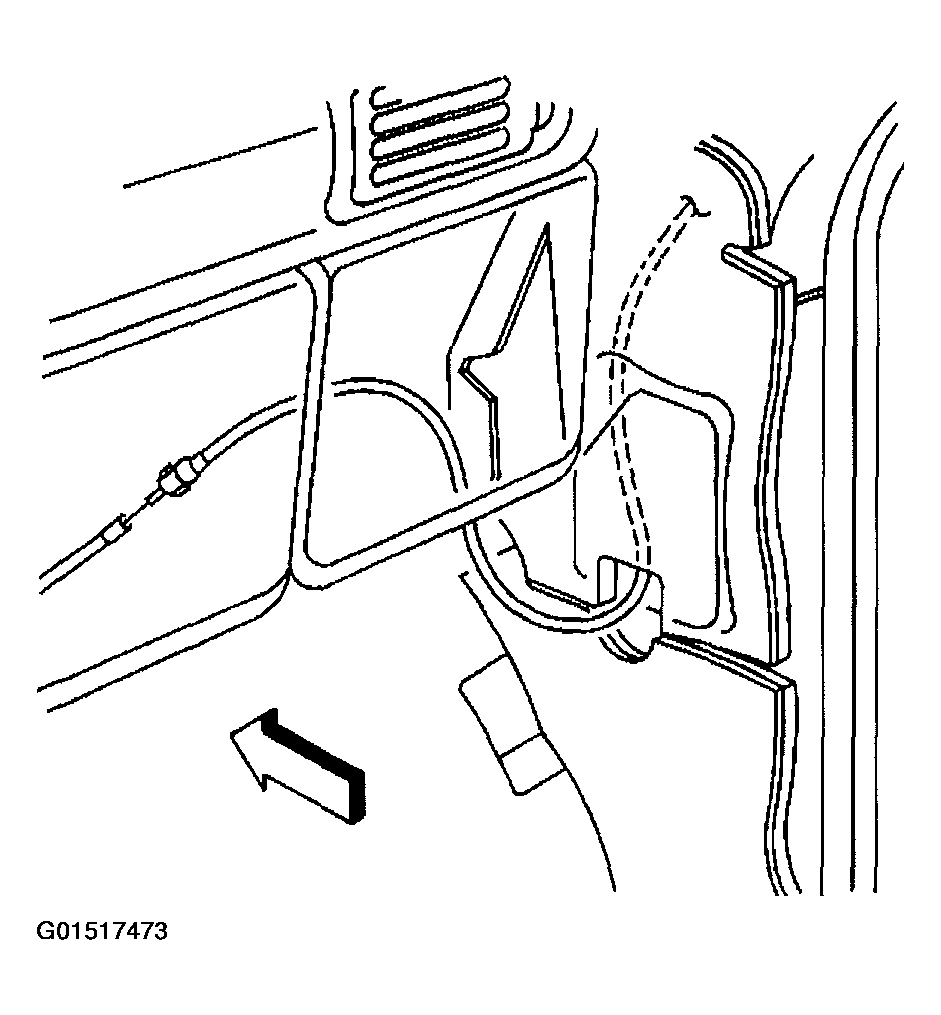

Fig 1: Removing Antenna Cable Extension To Roof
Courtesy of GENERAL MOTORS CORP.
Remove the antenna cable from the instrument panel carrier.

Fig 2: Removing Antenna Cable From Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.
Remove the following components from the vehicle:
- The antenna cable
- The antenna cable extension

  Fig 3: Removing Antenna Cable
  Courtesy of GENERAL MOTORS CORP.
