Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT -- SIDE FRONT DOOR (AZTEK) or TRIM PANEL REPLACEMENT -- SIDE FRONT DOOR (RENDEZVOUS) .
  2. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT -- FRONT DOOR .
  3. Remove the speaker screws.
  4. Disconnect the wire harness from the speaker.
  5. Remove the speaker.

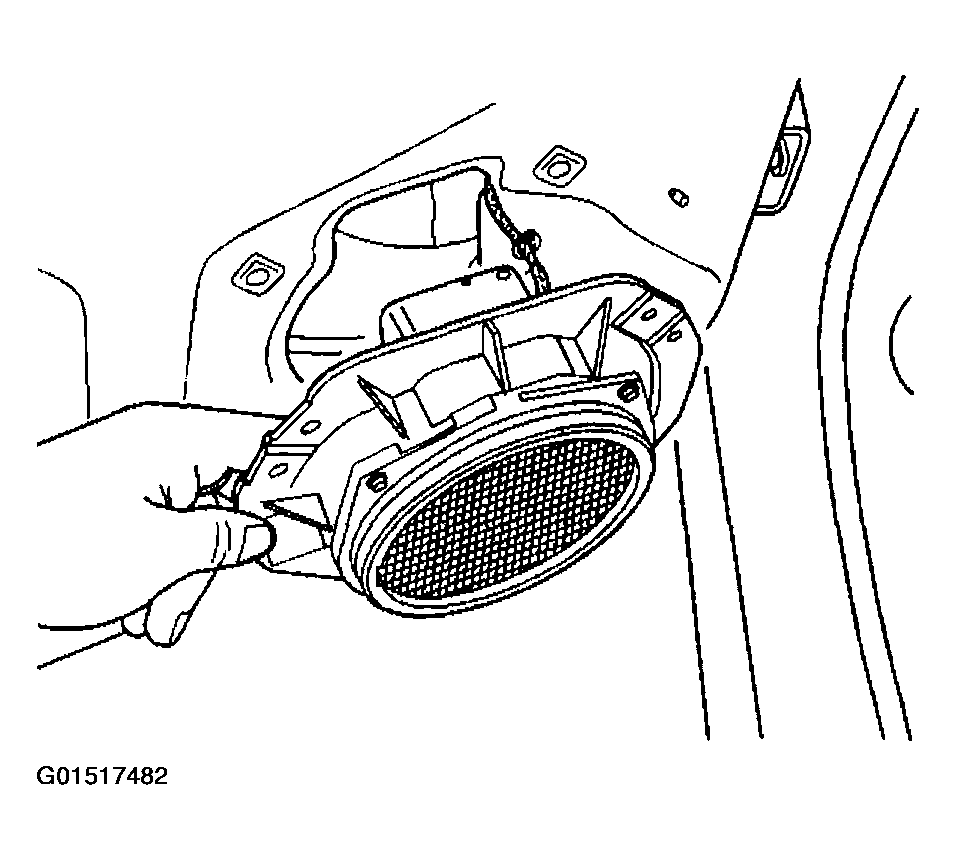

    Fig 1: Removing Speaker Screws
    G01517482Courtesy of GENERAL MOTORS CORP.
