Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sunshade to the roof.

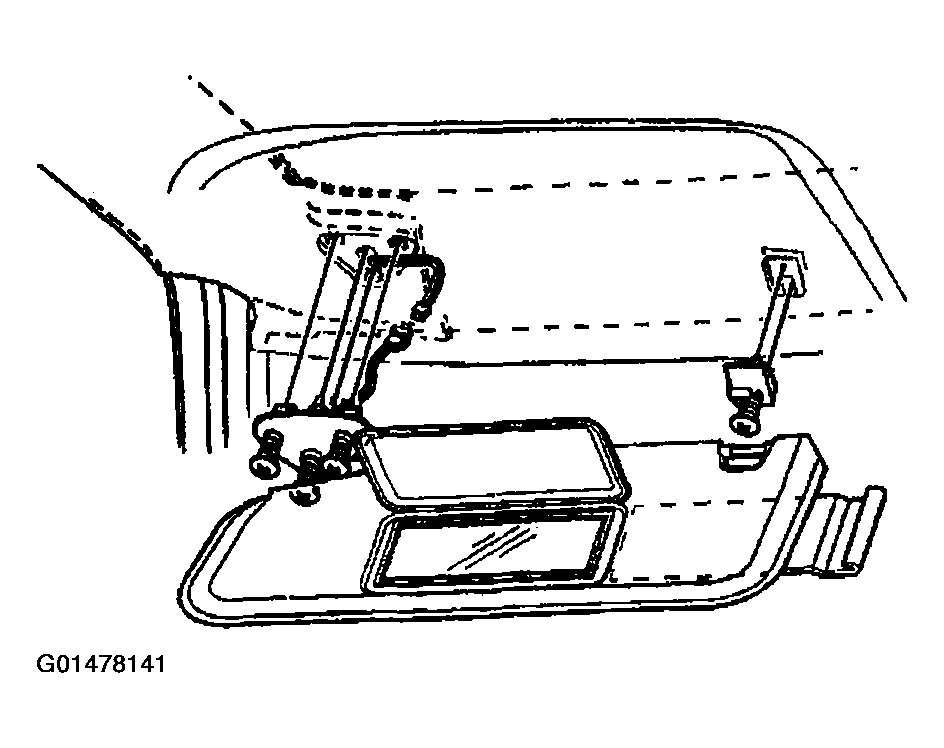

    Fig 1: Installing Sunshade To Roof
    G01478141Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the sunshade retainer and the sunshade retainer screws.

    Tighten

    Tighten the screws to 1.1 N.m (10 Ib in).

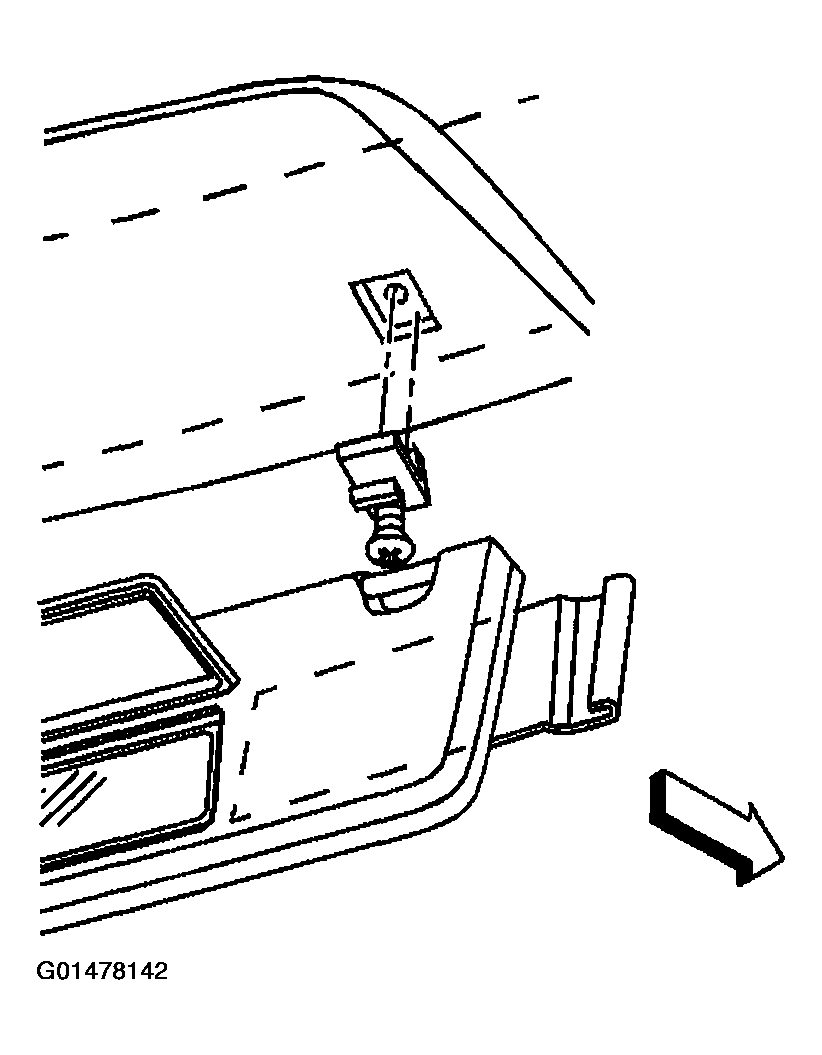

    Fig 2: Sunshade Retainer & Sunshade Retainer Screws
    G01478142Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connections, if equipped.
  4. Install the screws that retains the sunshade to the roof.

    Tighten

    Tighten the screws to 1.1 N.m (10 Ib in).

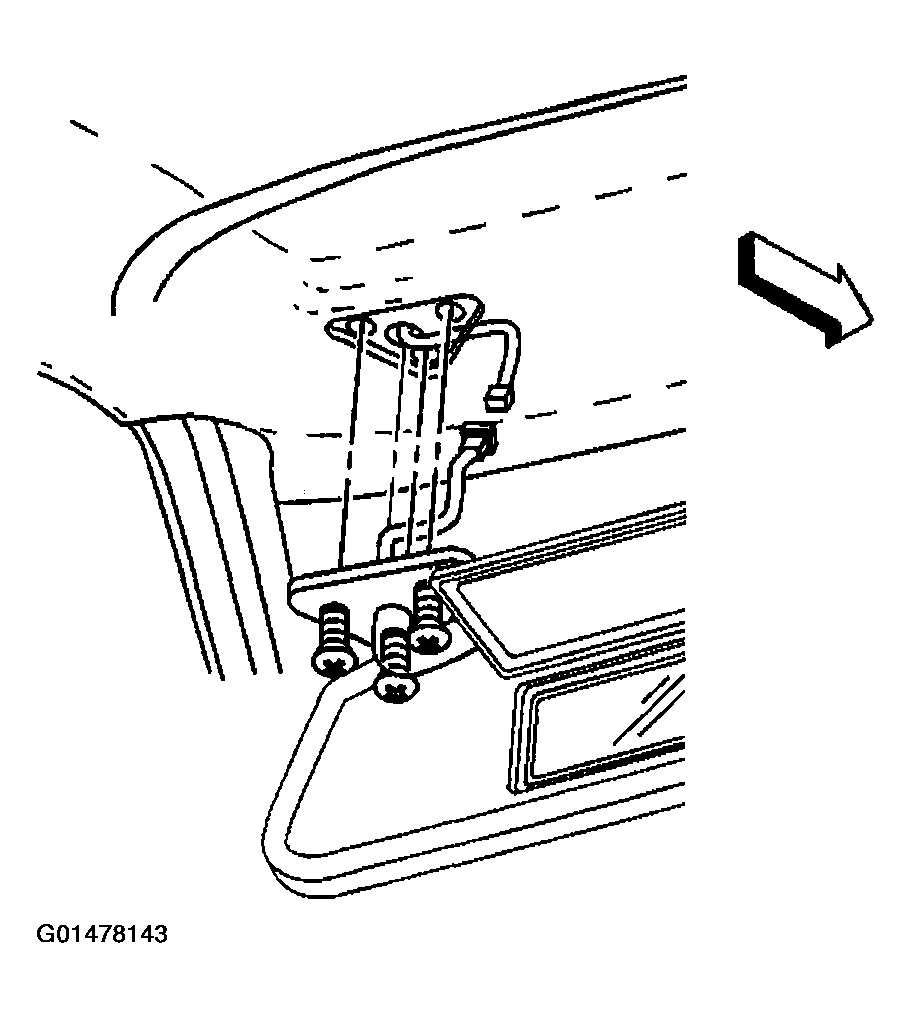

    Fig 3: Connecting Electrical Connections
    G01478143Courtesy of GENERAL MOTORS CORP.
