Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the air cleaner outlet resonator.

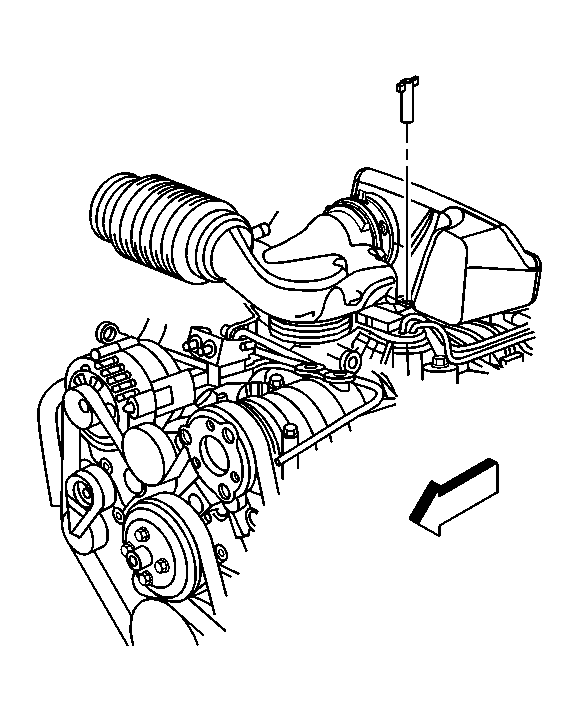

Fig 1: View Of Air Cleaner Outlet Resonator

Courtesy of GENERAL MOTORS CORP.

Align the hinge clip with the lip on the throttle body. Install the air cleaner outlet resonator to the throttle body by pivoting the resonator downward until the stud is through the hole in the resonator.

Fig 2: View Of Air Cleaner Outlet Duct

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner outlet resonator wing nut.

Fig 3: View Of Air Cleaner Adapter Nut

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner outlet resonator to the MAF/IAT sensor.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Tighten the air cleaner outlet duct clamp at the MAF/IAT sensor.
Tighten: Tighten the clamp to 4 N.m (35 lb in).

Fig 4: View Of Air Cleaner Outlet Duct Clamp

Courtesy of GENERAL MOTORS CORP.
