Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install a NEW MAP sensor seal, if necessary.
Install the MAP sensor.

Fig 1: View Of MAP Sensor

Courtesy of GENERAL MOTORS CORP.

Connect the MAP sensor electrical connector (2).

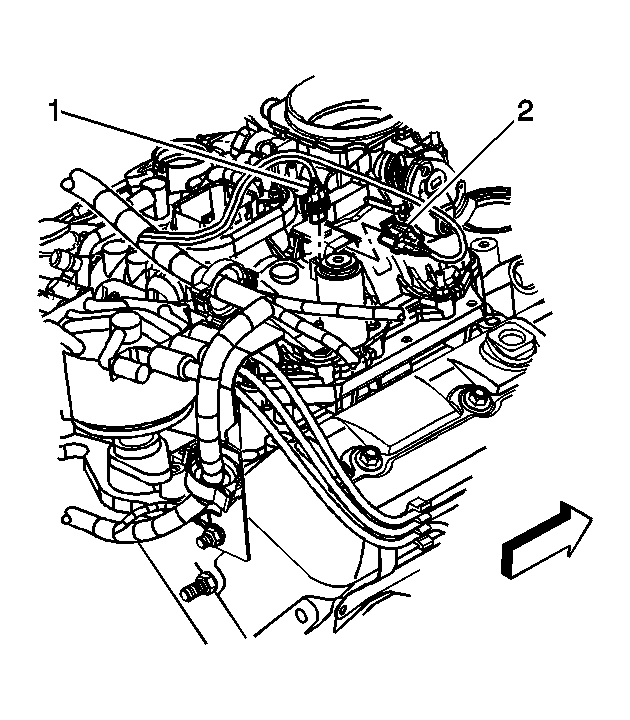

Fig 2: EVAP Canister Purge Solenoid Valve & MAP Sensor

Courtesy of GENERAL MOTORS CORP.
