Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the steering knuckle (2) to the vehicle.
    Fig 1: Installing Steering Knuckle To The Vehicle
    GM749331Courtesy of GENERAL MOTORS CORP.
  2. Install the upper ball joint. Refer to Upper Ball Joint Replacement .
  3. Install the lower ball joint. Refer to Lower Ball Joint Replacement .
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.

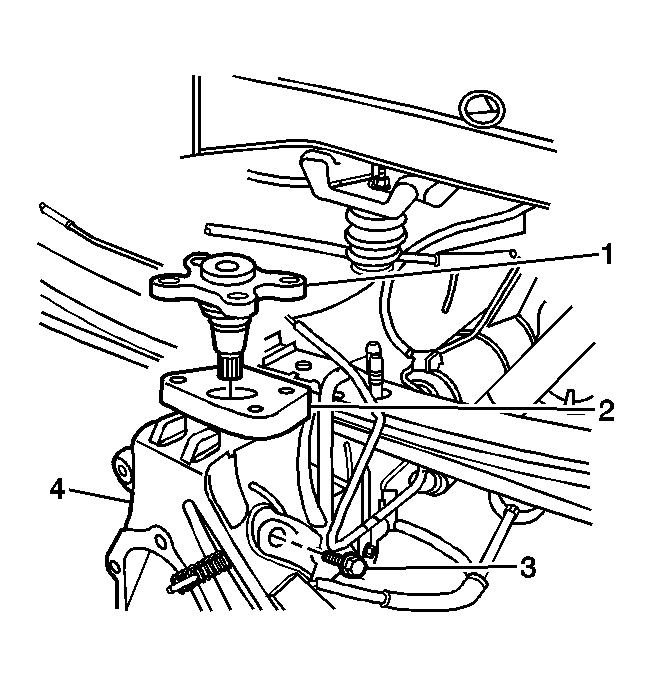

    Fig 2: Installing Park Brake Cable Retaining Bolt To The Steering Knuckle
    GM748894Courtesy of GENERAL MOTORS CORP.
  4. Install the park brake cable retaining bolt (3) to the steering knuckle.

    Tighten:  Tighten the bolt to 65 N.m (48 lb ft).

  5. Install the wheel hub and bearing. Refer to Wheel Hub and Bearing Replacement .
  6. Install the outer tie rod retaining nut to the steering knuckle.

    Tighten:  Tighten the nut to 55 N.m (40 lb ft).

    Fig 3: Installing Outer Tie Rod Retaining Nut To The Steering Knuckle
    GM742190Courtesy of GENERAL MOTORS CORP.
  7. Install the outer tie rod retaining bracket (2).

    Tighten:  Tighten the bracket to 65 N.m (48 lb ft).

  8. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  9. Lower the vehicle.
  10. Perform a four wheel alignment. Refer to Measuring Wheel Alignment (w/Rear Wheel Steering) or Measuring Wheel Alignment (w/o Rear Wheel Steering) in Wheel Alignment.
