Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, 2004 Chevrolet Cab & Chassis Silverado, and 2003 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the electrical connector from the fluid level sensor.

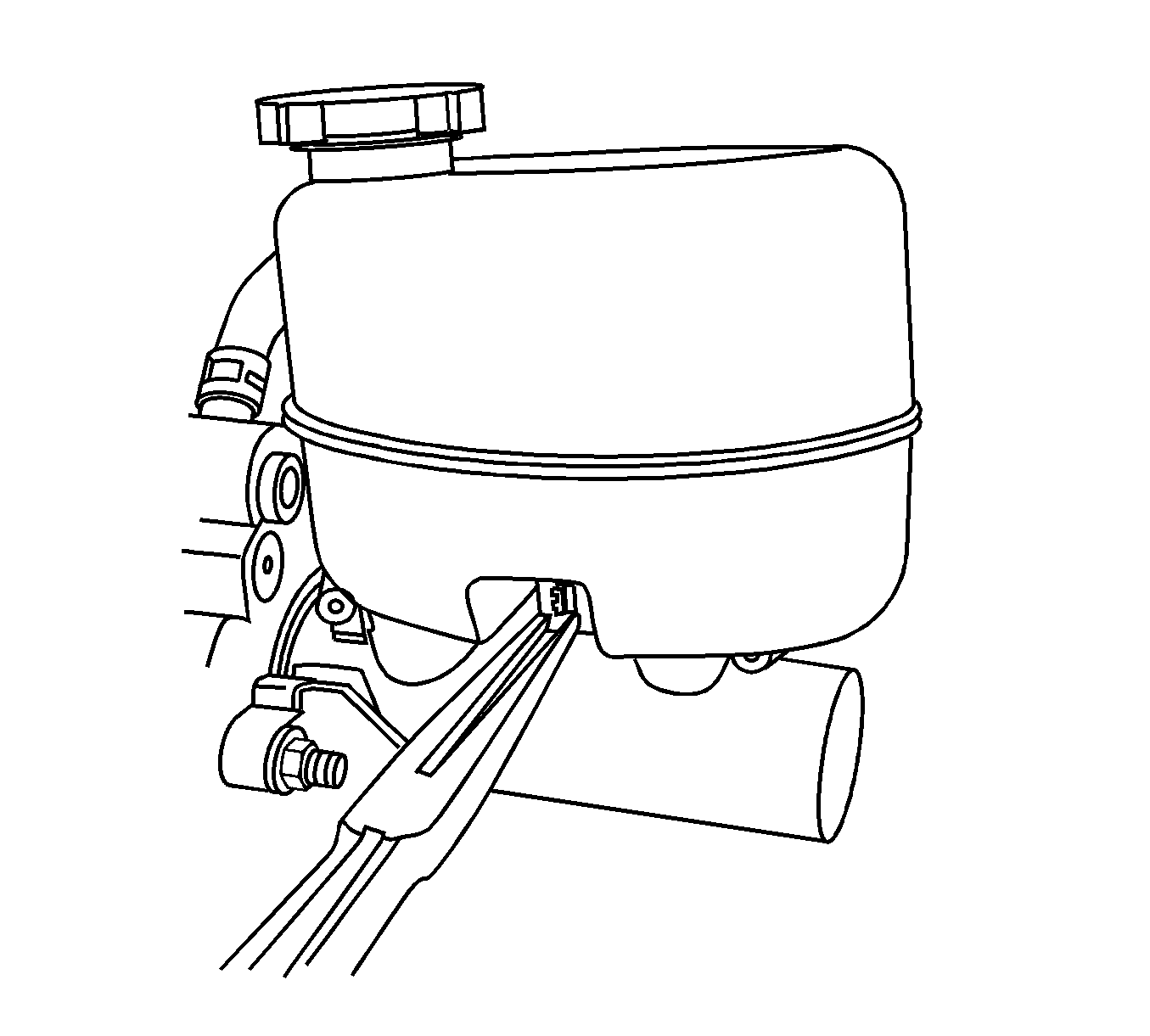

Using needle nose pliers, compress the locking tabs at the opposite side of the master cylinder.

Fig 1: Compressing Master Cylinder Locking Tabs

Courtesy of GENERAL MOTORS CORP.

Remove the fluid level sensor.

Fig 2: Removing Fluid Level Sensor

Courtesy of GENERAL MOTORS CORP.
