Functional Check

Position 1-2 support drum on bench. Install reaction sun gear assembly into 1-2 support drum. Rotate reaction sun gear counterclockwise. Rotate 1-2 support drum clockwise. See Fig 4. Roller clutch should move freely in indicated directions. Roller clutch should lock in opposite direction. If roller clutch does not function as described, clutch is not assembled correctly. Reassemble as necessary.

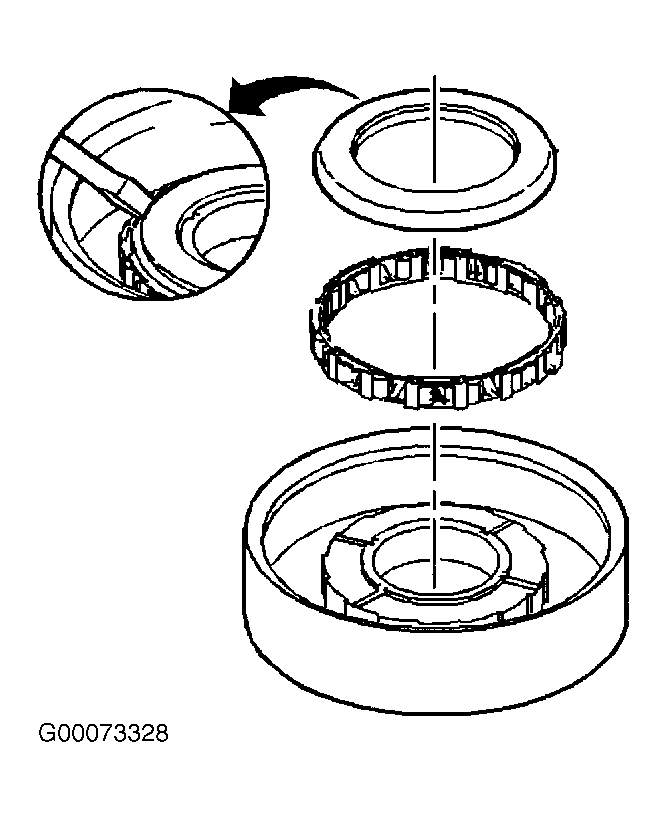

Fig 1: Removing 1-2 Roller Clutch

Courtesy of GENERAL MOTORS CORP.

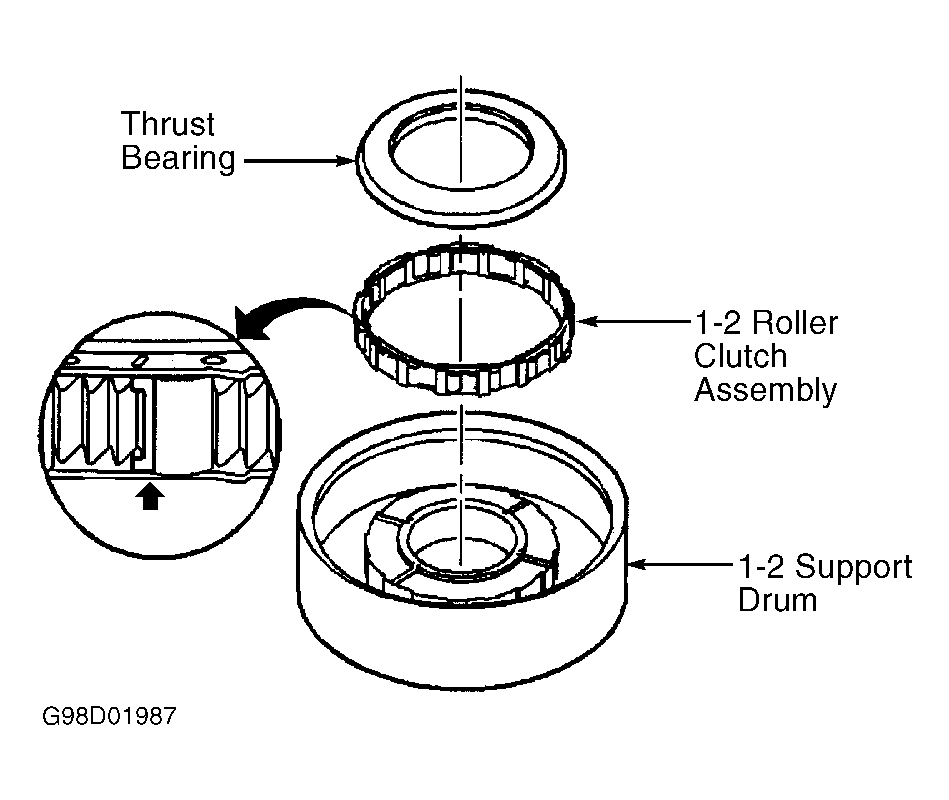

Fig 2: Inspecting 1-2 Roller Clutch & 1-2 Support Drum

Courtesy of GENERAL MOTORS CORP.

Fig 3: Installing 1-2 Roller Clutch Into 1-2 Support Drum

Courtesy of GENERAL MOTORS CORP.

Fig 4: Checking 1-2 Support Roller Clutch Operation

Courtesy of GENERAL MOTORS CORP.
