Disassembly & Reassembly

If vent is damaged, use pliers and pry bar to remove vent. See Fig 1. Use hammer and punch to install vent. If oil pressure test hole plug was removed, install plug and tighten to specification. See TORQUE SPECIFICATIONS .

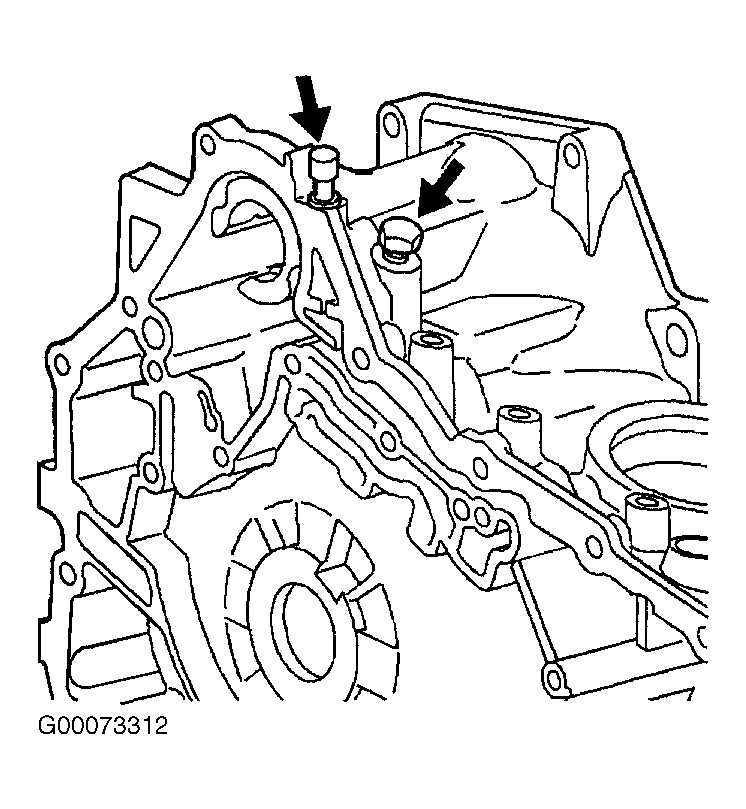

Fig 1: Locating Transaxle Vent & Oil Pressure Test Hole Plug
G00073312Courtesy of GENERAL MOTORS CORP.
