Master Window Switch: Installation

1. Install front door window control switch (2) into front door window switch plate. See Fig 1 .
2. Connect harness connectors to front door window control switch.
3. Install front door window control switch plate to front door panel pressing into place until fully seated.

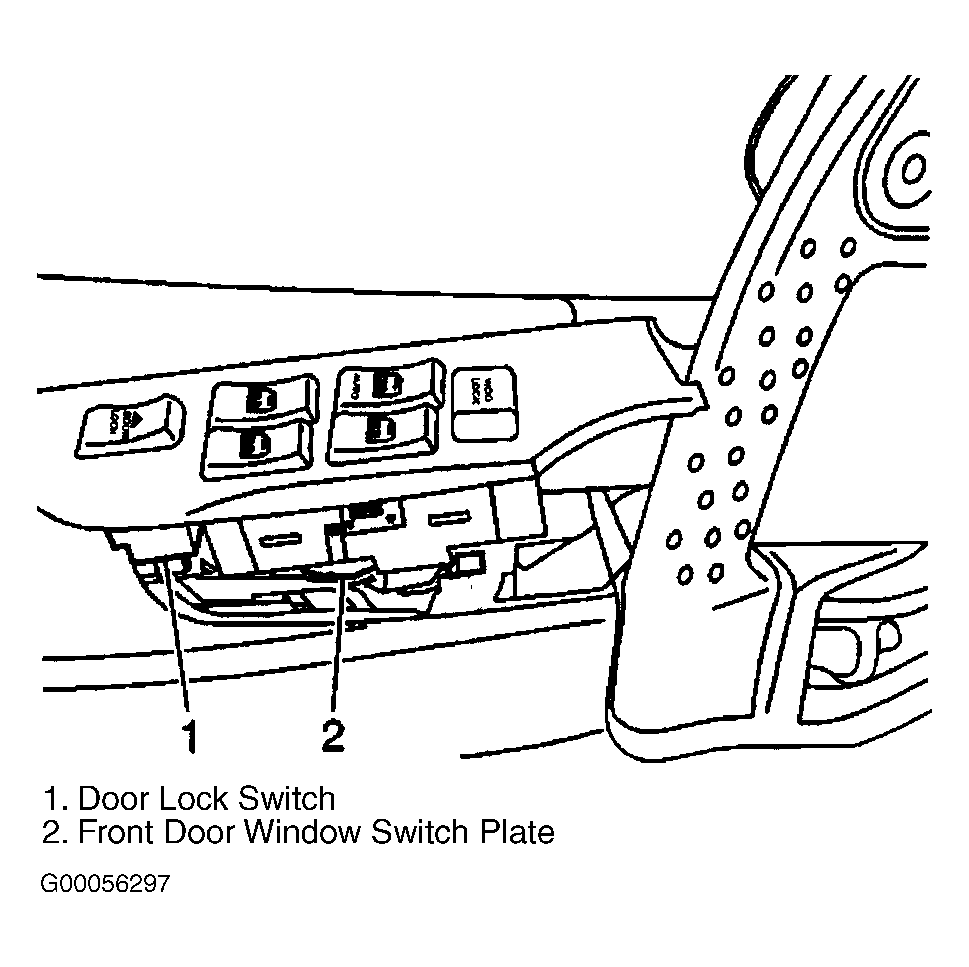

Fig 1: Removing & Installing Front Door Switch Plate & Power Window Switches

Courtesy of GENERAL MOTORS CORP.
