Rear Window Switch: Installation

1. Install power window switch (1) to mounting plate. See Fig 1 .
2. Connect harness connector.
3. Insert front of mounting plate into trim panel.
4. Press down on rear of mounting plate until plate is fully seated.

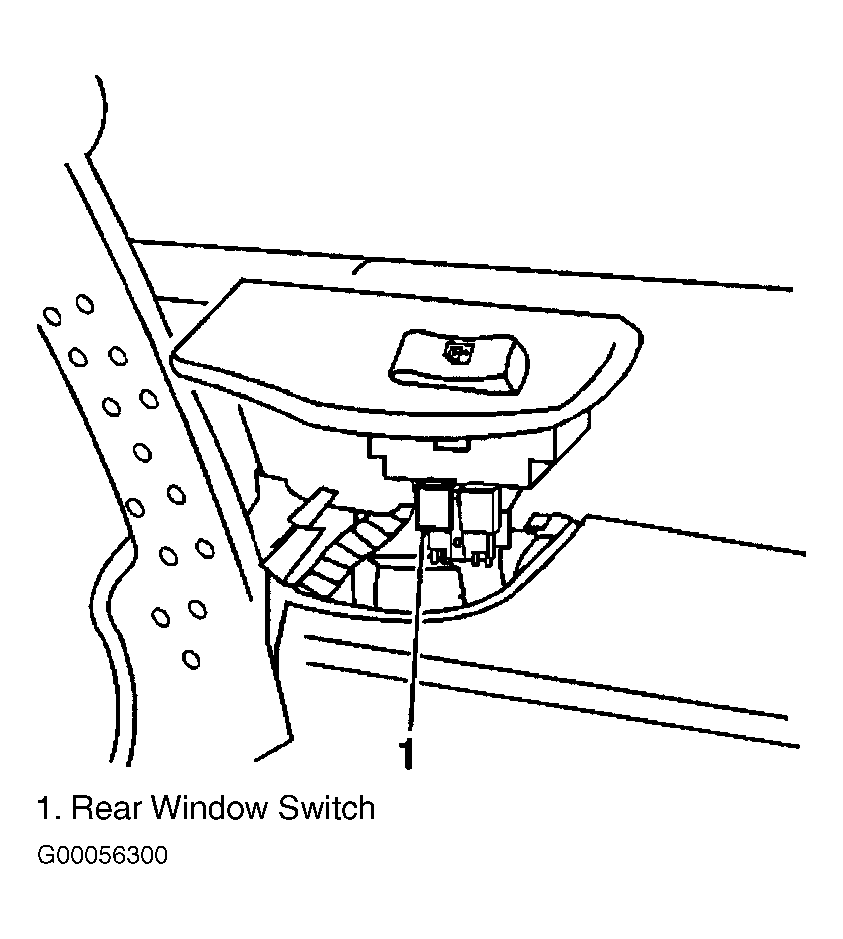

Fig 1: Removing & Installing Rear Power Window Switch

Courtesy of GENERAL MOTORS CORP.
