Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Remove the lower control arm. Refer to Lower Control Arm Replacement .
Secure the lower control arm in a vice.

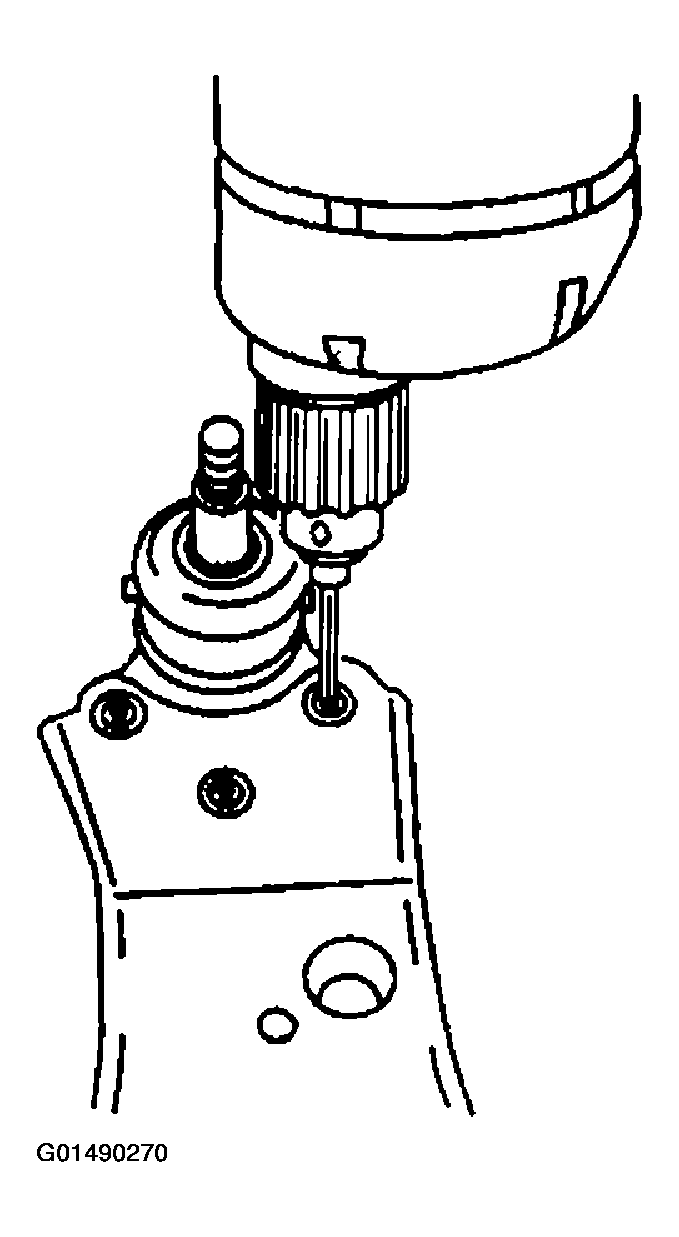

Drill or grind off the ball stud rivet heads.

Fig 1: Drilling Ball Stud Rivet Heads
Courtesy of GENERAL MOTORS CORP.

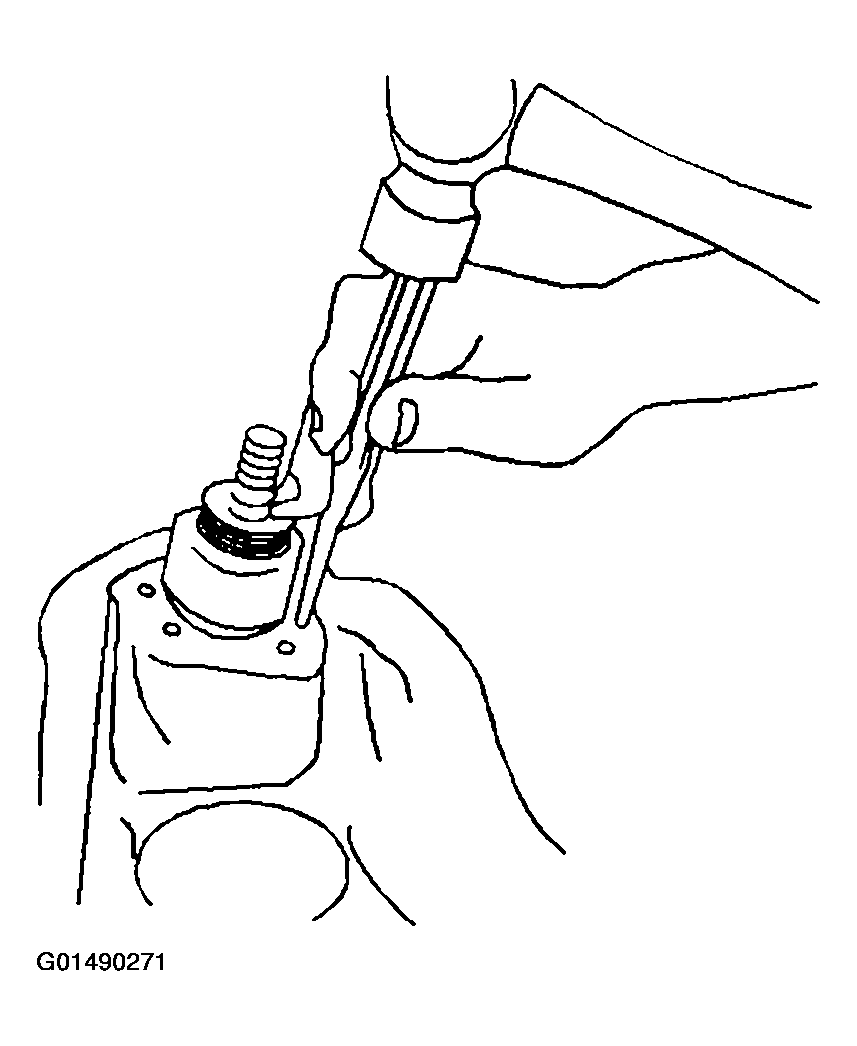

Use a hammer and a drift punch in order to remove the rivets.

Fig 2: Removing Rivets
Courtesy of GENERAL MOTORS CORP.
Remove the ball stud from the lower control arm.

Fig 3: Removing Ball Stud From Lower Control Arm
Courtesy of GENERAL MOTORS CORP.
