Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the headlamp bulb/socket to the headlamp assembly.

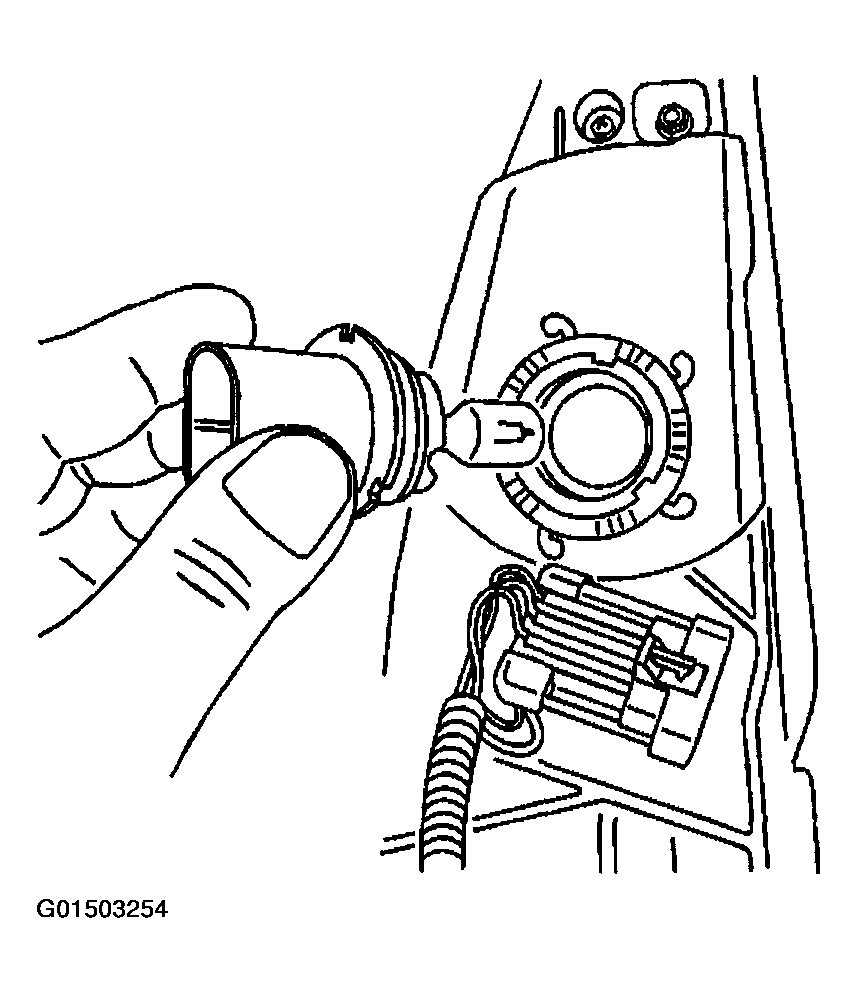

Fig 1: Installing Headlamp Bulb/Socket To Headlamp Assembly
Courtesy of GENERAL MOTORS CORP.
Install the headlamp bulb/socket retainer ring to the headlamp assembly, turning clockwise until fully seated.

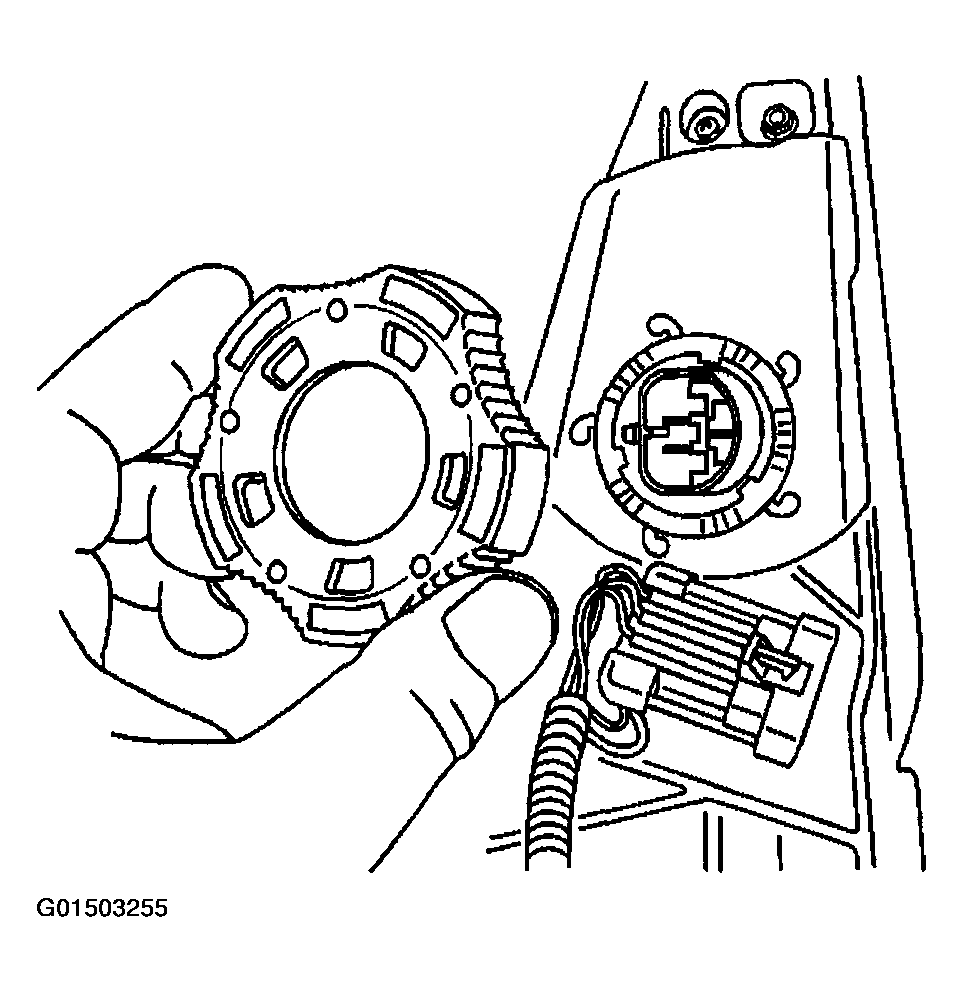

Fig 2: Installing Headlamp Bulb/Socket Retainer Ring To Headlamp Assembly
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the headlamp bulb/socket.

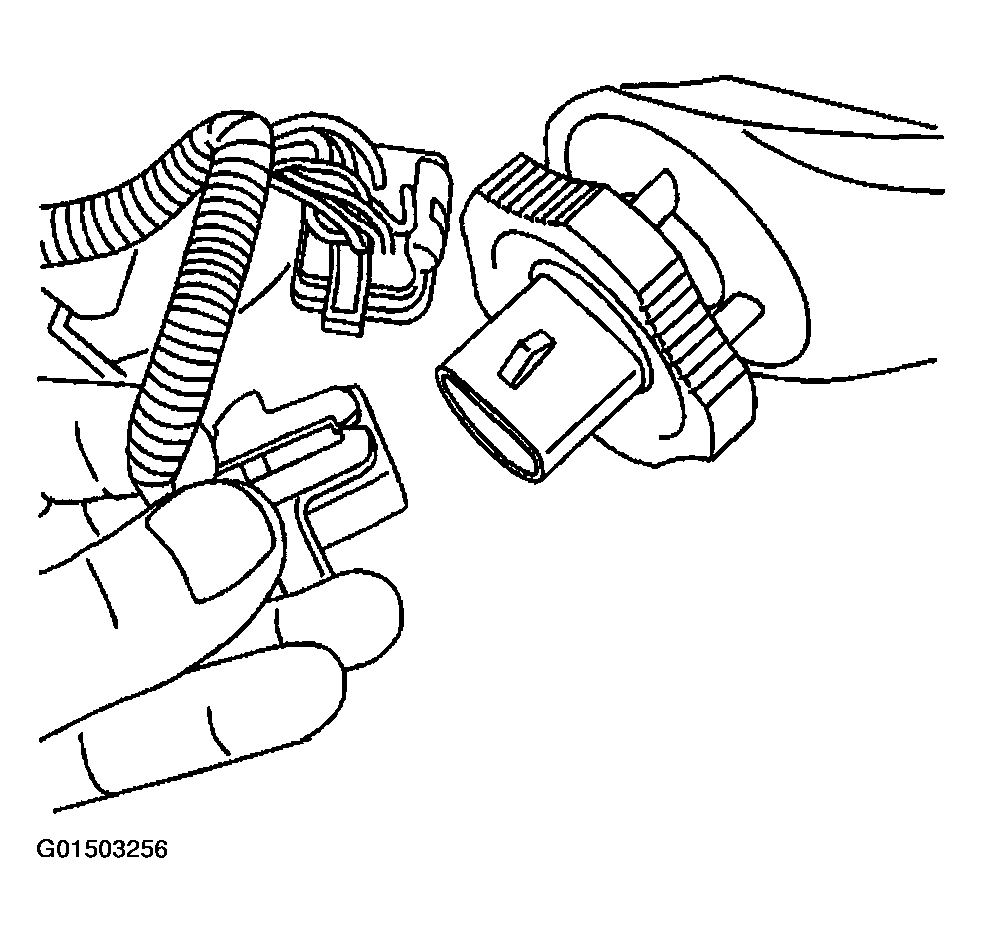

Fig 3: Connecting Electrical Connector To Headlamp Bulb/Socket
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the headlamp assembly.

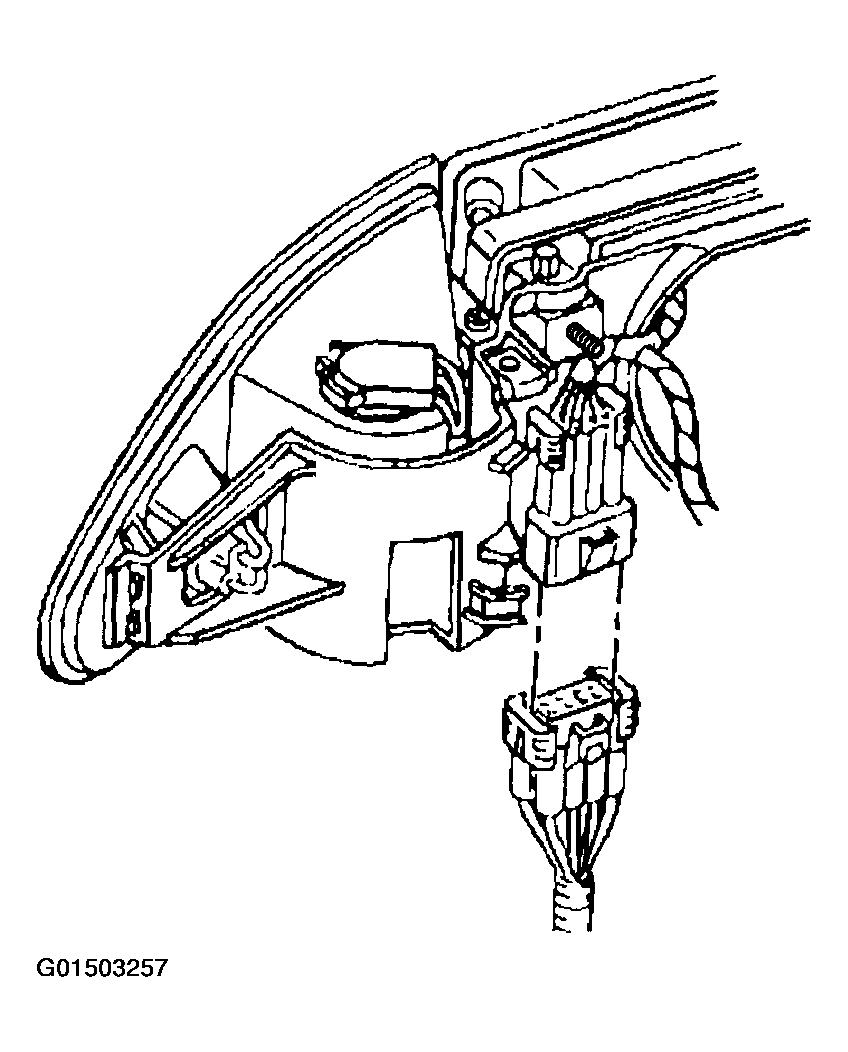

Fig 4: Connecting Electrical Connector To Headlamp Assembly
Courtesy of GENERAL MOTORS CORP.
Position the headlamp assembly to the vehicle body, just outward of the installed position.
Align the headlamp bracket tabs to the slots (1) in the upper fascia support. Slide the headlamp inward to engage the tabs.

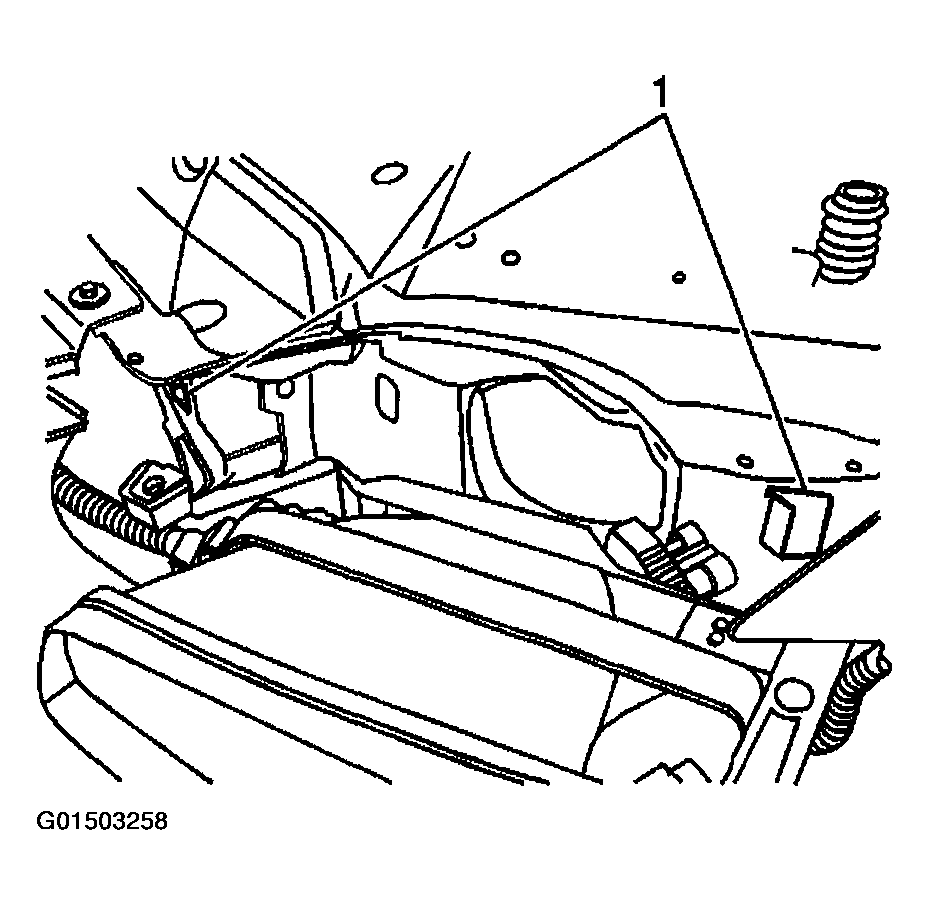

Fig 5: Aligning Headlamp Bracket Tabs To Slots In Upper Fascia Support
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the headlamp assembly bolts to the upper fascia support.
Tighten

Tighten the headlamp assembly bolts to 6 N.m (53 Ib. in).
Check and adjust the headlamp aim as necessary. Refer to HEADLAMP AIMING .
Close the hood.

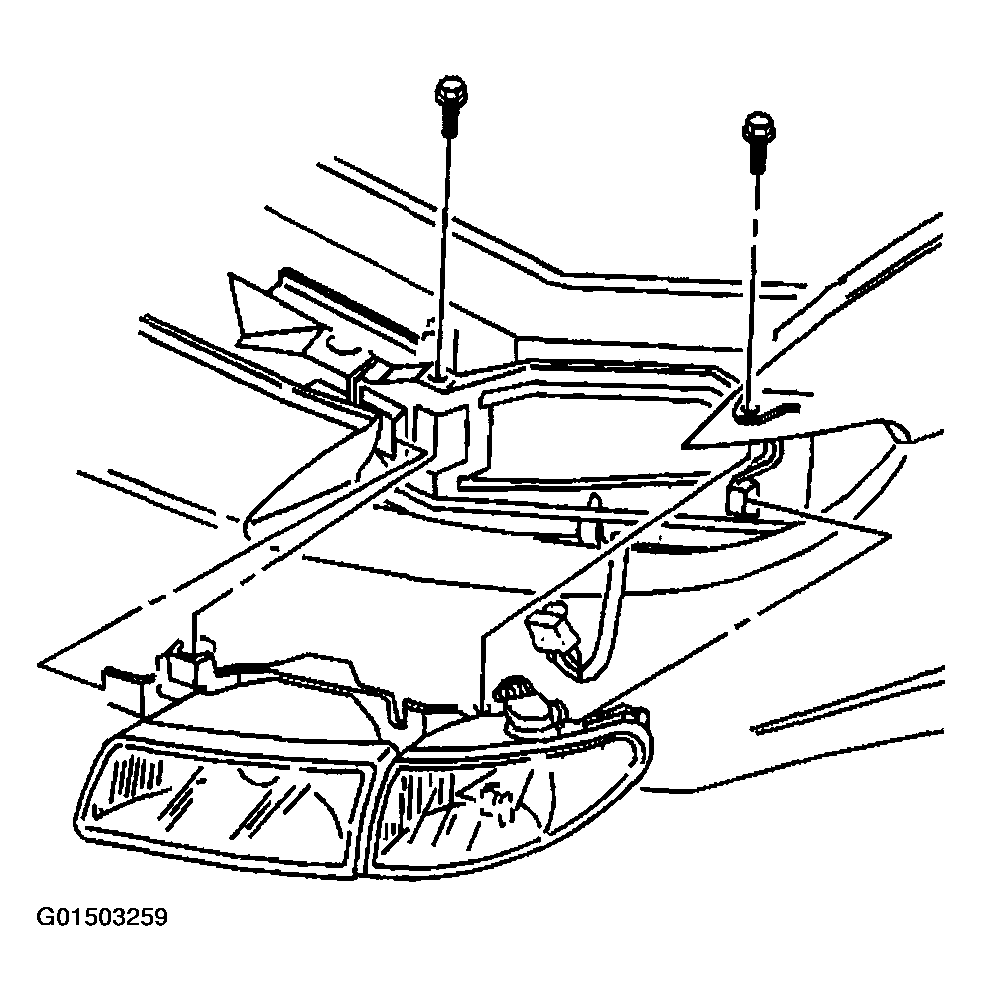

Fig 6: Installing Headlamp Assembly Bolts To Upper Fascia Support
Courtesy of GENERAL MOTORS CORP.
