Installation Procedure
WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to FASTENER NOTICE
.

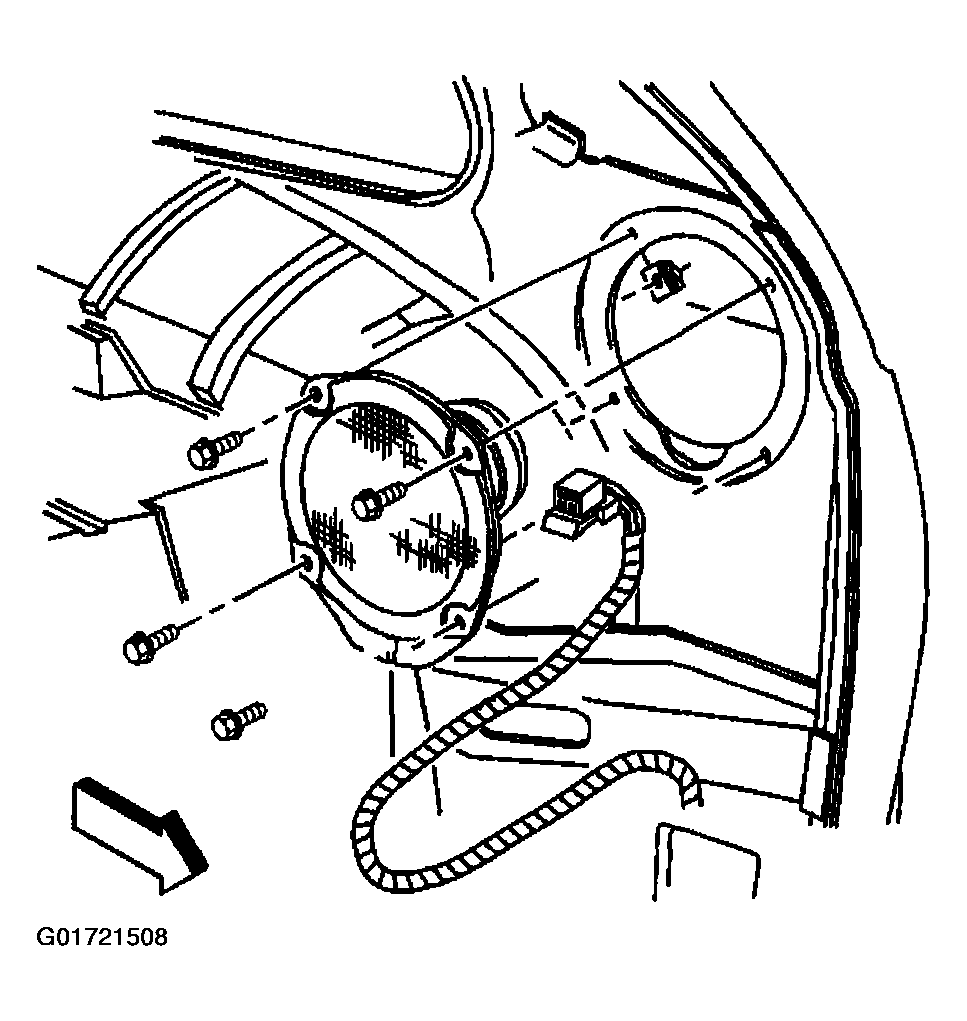

- Install the speaker to the door trim panel assembly.
Tighten
Tighten the speaker screws to 3.2 N.m 28 lb in).
- Connect the wire harness to the speaker.
- Install the trim panel assembly to the front door. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK) or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS) .
