Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Position the assist rods to the endgate.

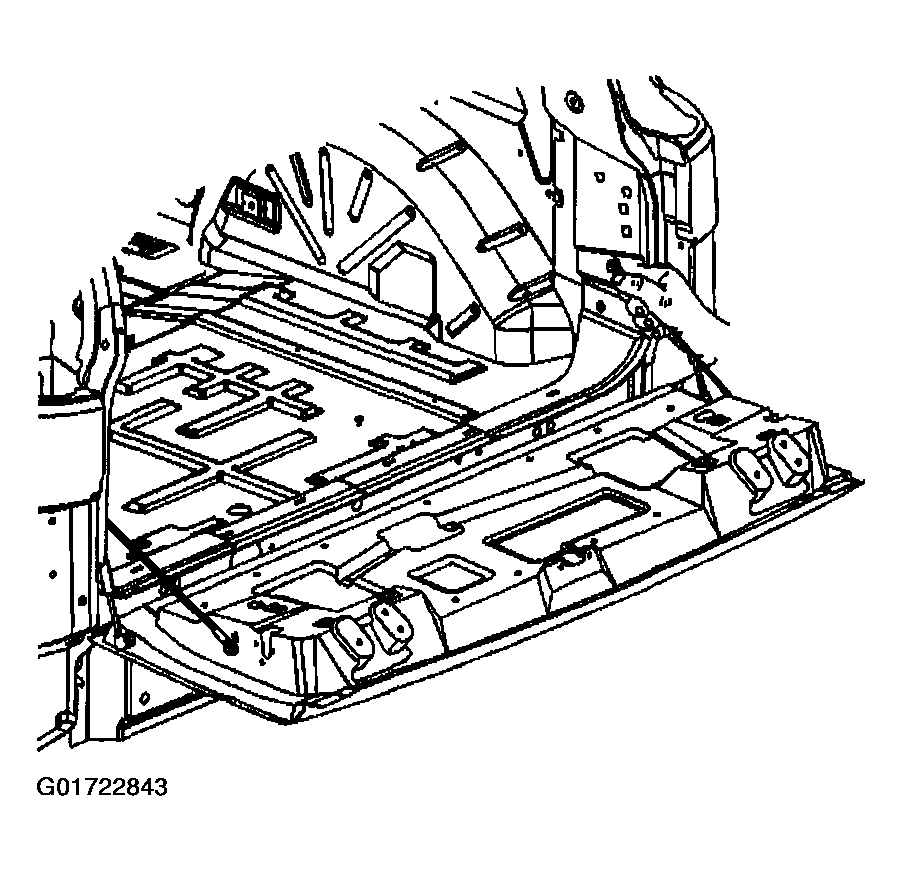

Fig 1: Positioning Endgate Assist Rods
Courtesy of GENERAL MOTORS CORP.
Install the upper end of the assist rods to the ball joint. Press in to place until fully seated.

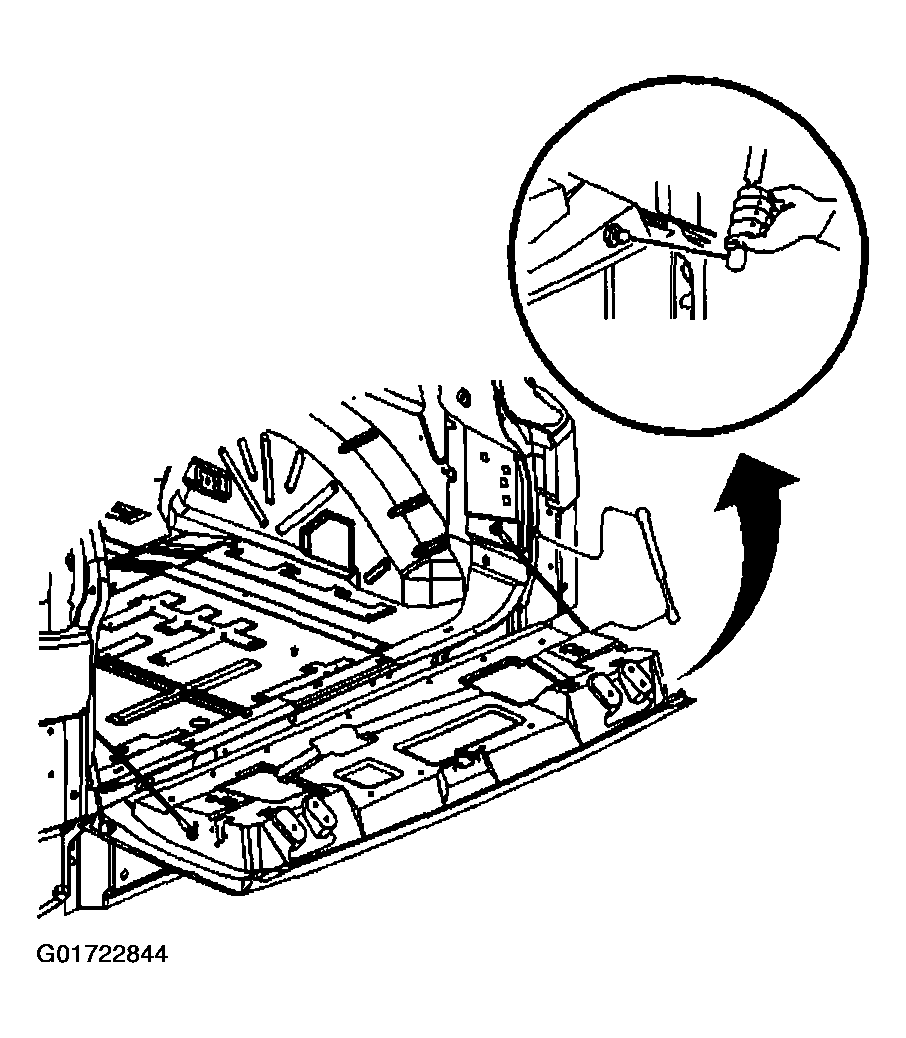

Fig 2: Installing Endgate Assist Rod Upper End To Ball Joint
Courtesy of GENERAL MOTORS CORP.
Install the lower end of the assist rods to the ball joint. Press in to until fully seated.
Close the endgate.

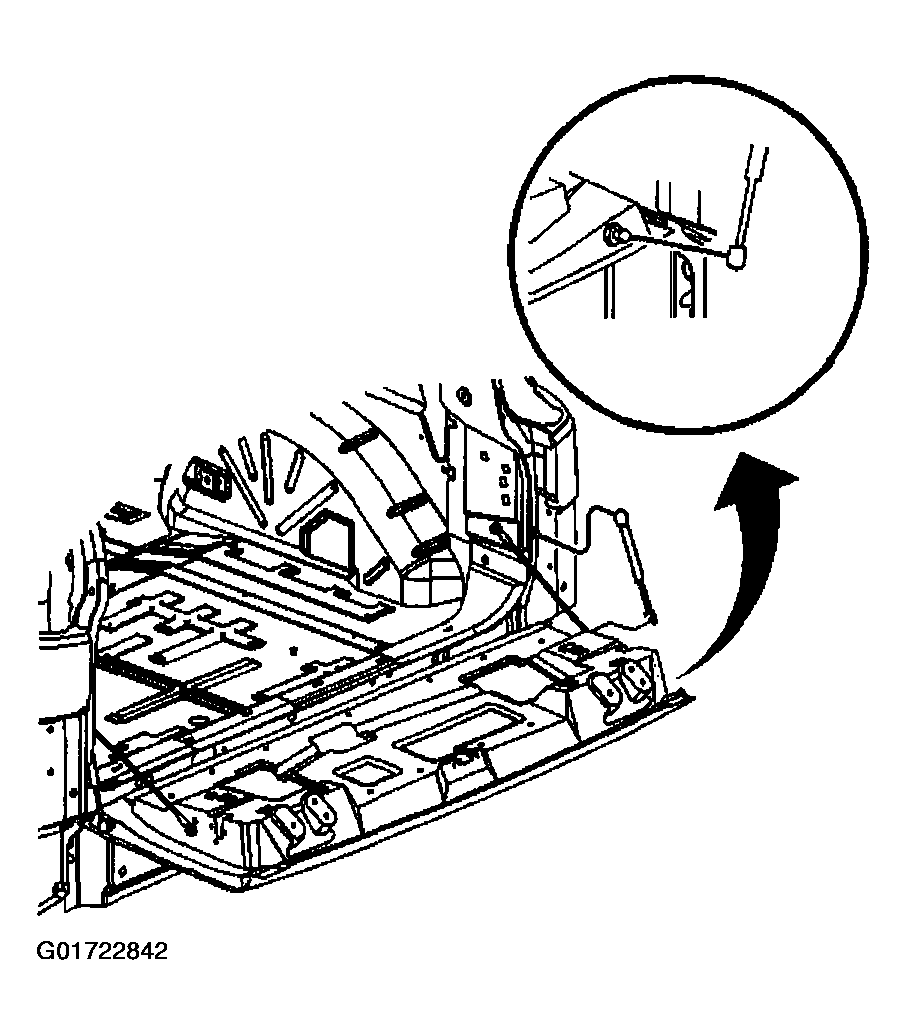

Fig 3: Installing Endgate Assist Rod Lower End To Ball Joint
Courtesy of GENERAL MOTORS CORP.
