Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Position the assist rods to the liftgate.
Install the upper end of the assist rods to the ball joint. Press in to place until fully seated.

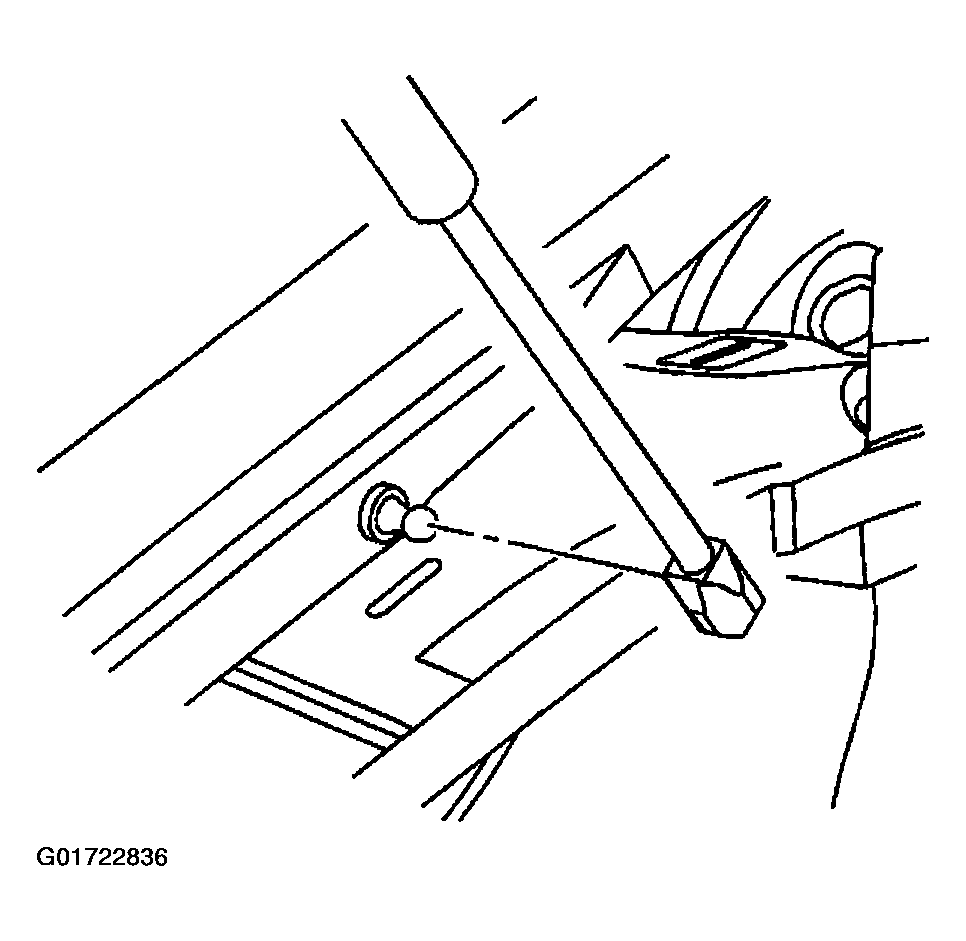

Fig 1: Installing Liftgate Assist Rod Upper End To Ball Joint
Courtesy of GENERAL MOTORS CORP.
Install the lower end of the assist rods to the ball joint. Press in to place until fully seated.
Remove the support from the liftgate.
Close the liftgate.

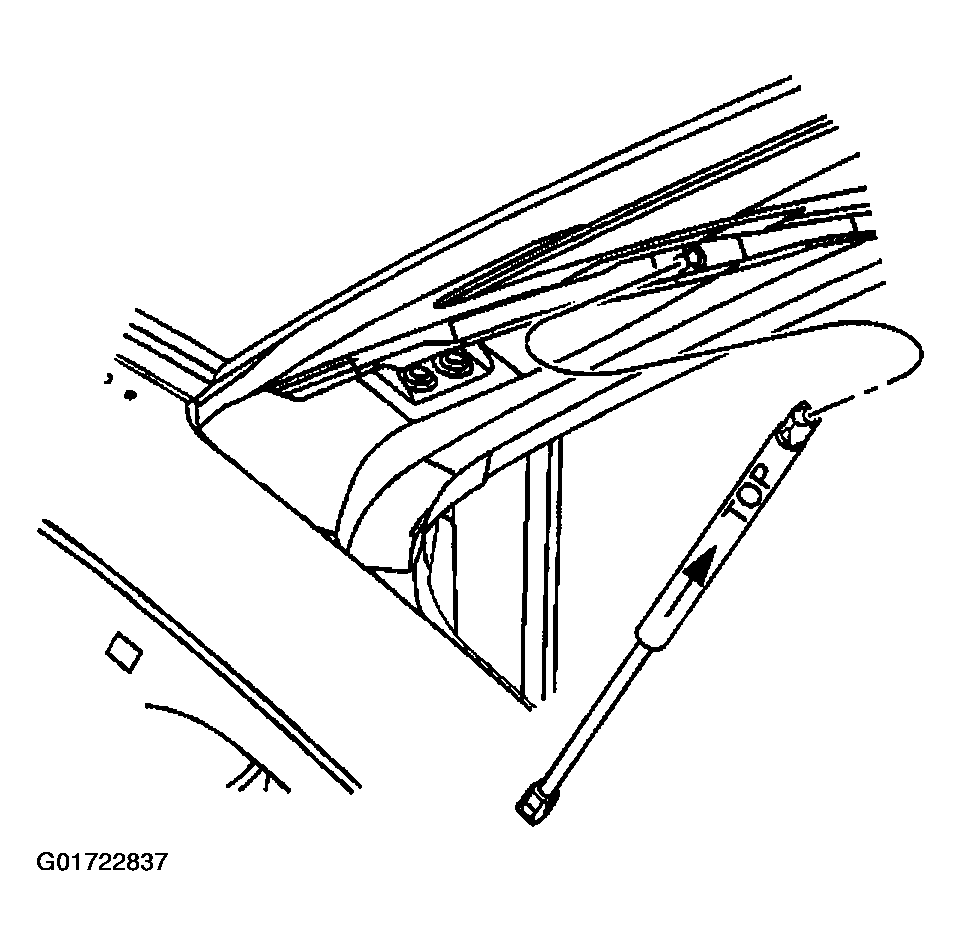

Fig 2: Installing Liftgate Assist Rod Lower End To Ball Joint
Courtesy of GENERAL MOTORS CORP.
