Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT-WINDSHIELD PILLAR .
  2. Remove the left center pillar assist handle. Refer to ASSIST HANDLE REPLACEMENT-REAR .
  3. Remove the left center pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT-CENTER PILLAR .
  4. Remove the left sunshade. Refer to SUNSHADE REPLACEMENT .
  5. Remove the retaining screws from the headliner.
  6. Gently pull down the headliner.
  7. Remove the inside air temperature sensor from the headliner.
  8. Disconnect the electrical connector from the inside air temperature sensor.
    Fig 1: Disconnect Electrical Connector From Inside Air Temperature Sensor
    G01479422Courtesy of GENERAL MOTORS CORP.
  9. Remove the inside air temperature sensor from the headliner.

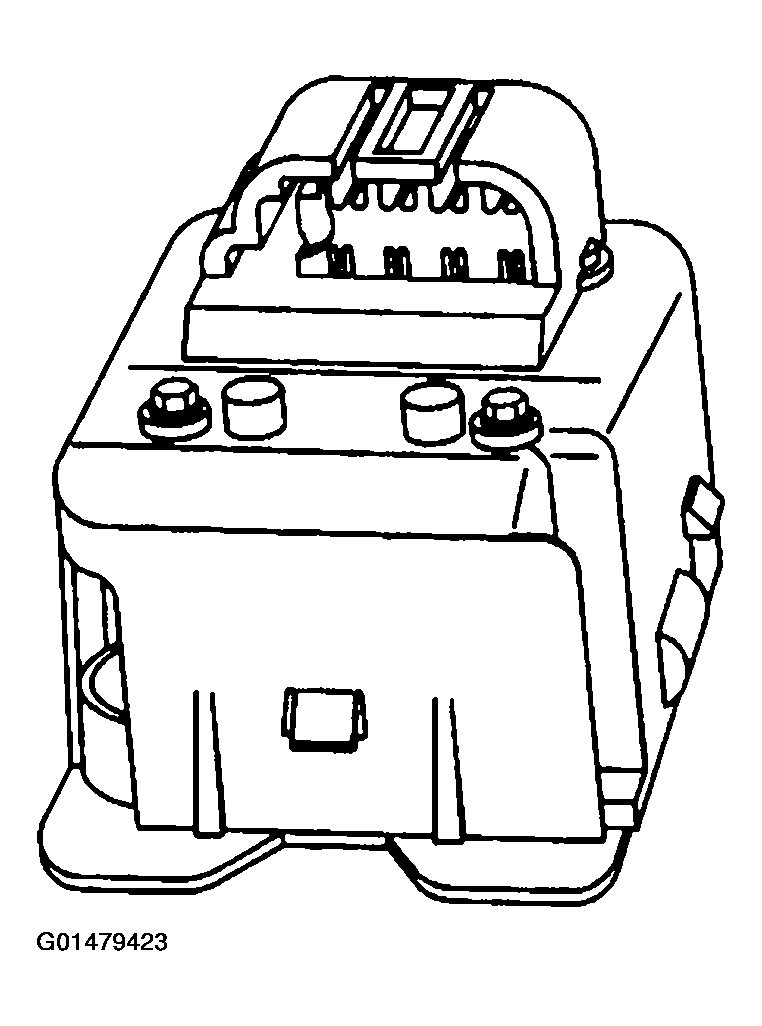

    Fig 2: Remove Inside Air Temperature Sensor From Headliner
    G01479423Courtesy of GENERAL MOTORS CORP.
