Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the memory module, if equipped. Refer to Memory Seat Control Module Replacement   .
    NOTE: Refer to FASTENER NOTICE .
  2. Install the inboard seat belt buckle and nut (1).

    Tighten

    Tighten the nut to 53 N.m (39 lb ft).

  3. Connect the electrical connection (2).
  4. Install the seat adjuster track cover. Refer to Seat Adjuster Track Cover Replacement-Front   .
  5. Install the seat back hinge/recliner mechanism. Refer to Seat Back Hinge/Recliner Mechanism Replace-Front   .
  6. Install the seat back frame to the seat adjuster. Refer to Seat Back Frame Replacement-Front   .
  7. Install the seat cushion frame to the seat adjuster. Refer to Seat Cushion Frame Replacement-Front   .
  8. Install the seat trim panel. Refer to Trim Panel Replacement-Front Seat   .
  9. Install the seat in the vehicle. Refer to Seat Replacement-Front Bucket   .

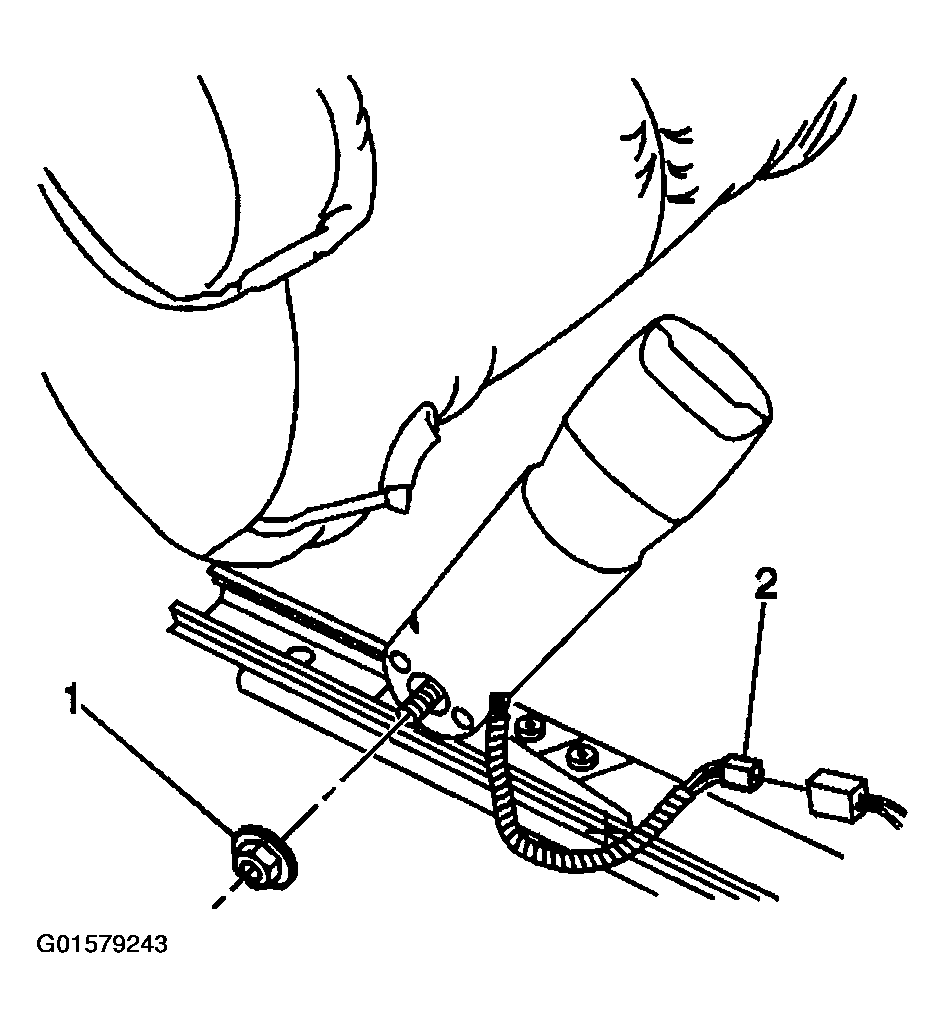

    Fig 1: Front Seat Adjuster (Power)
    G01579243Courtesy of GENERAL MOTORS CORP.
