Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat trim panel. Refer to Trim Panel Replacement-Front Seat   .
  2. Remove the seat cushion trim cover and pad. Refer to Seat Cushion Trim Cover And Pad Replacement   .
  3. Remove the following components from the seat cushion frame:
    • The frame springs (1)
    • The frame suspension (2)
    • The plastic retainers (3)
  4. Remove the seat cushion frame from the vehicle.

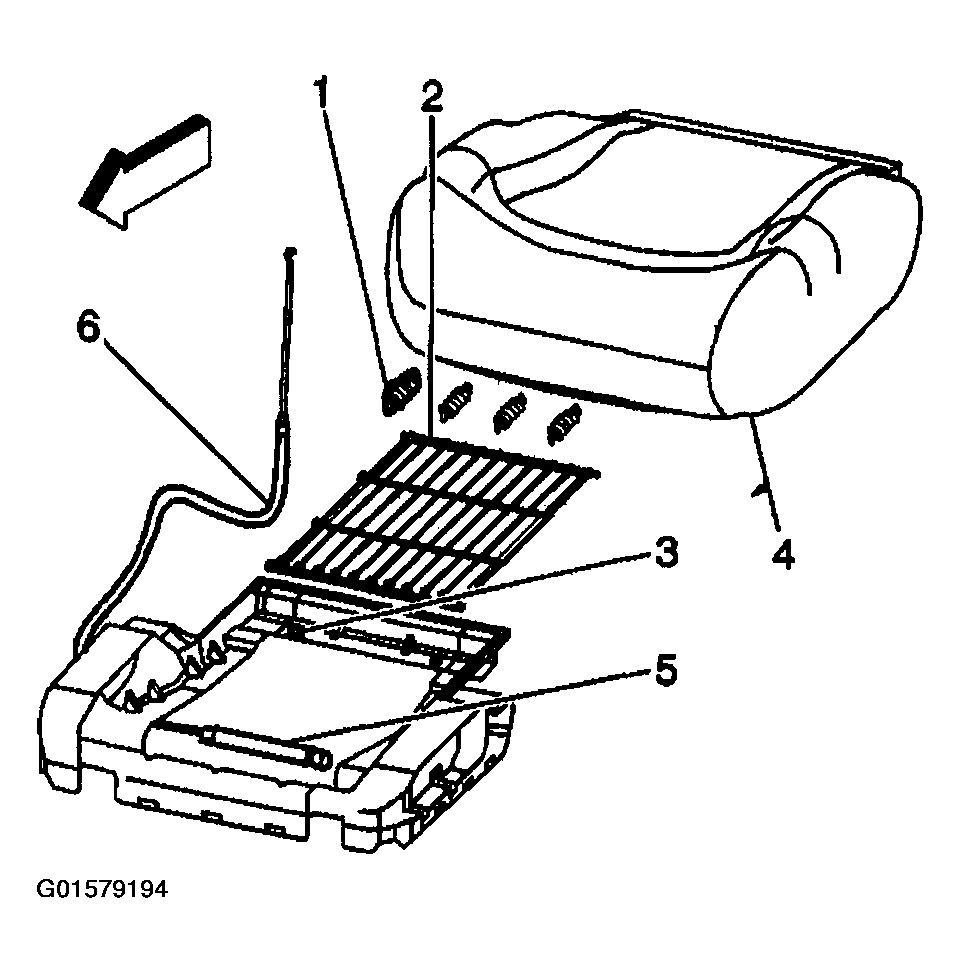

    Fig 1: Front Seat Cushion Frame
    G01579194Courtesy of GENERAL MOTORS CORP.
