Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the seat to the full rearward position. Remove the front seat nut cover (3), if equipped.
  2. Remove the seat retaining front nuts (2).
  3. Move the seat to the full forward position in order to remove the seat retaining rear bolts (1).
  4. Disconnect the electrical harness, if equipped.
  5. Remove the seat from the vehicle.

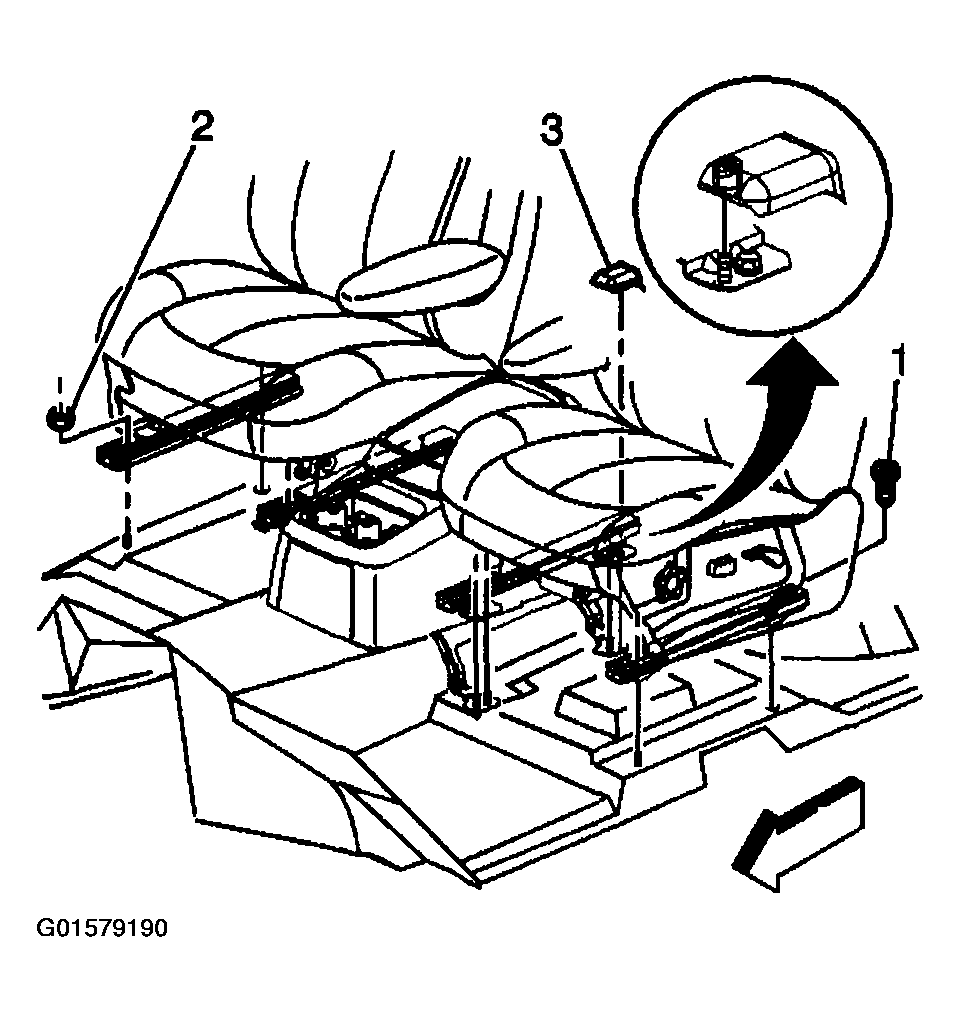

    Fig 1: Front Bucket Seat
    G01579190Courtesy of GENERAL MOTORS CORP.
