Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the seat into the vehicle.

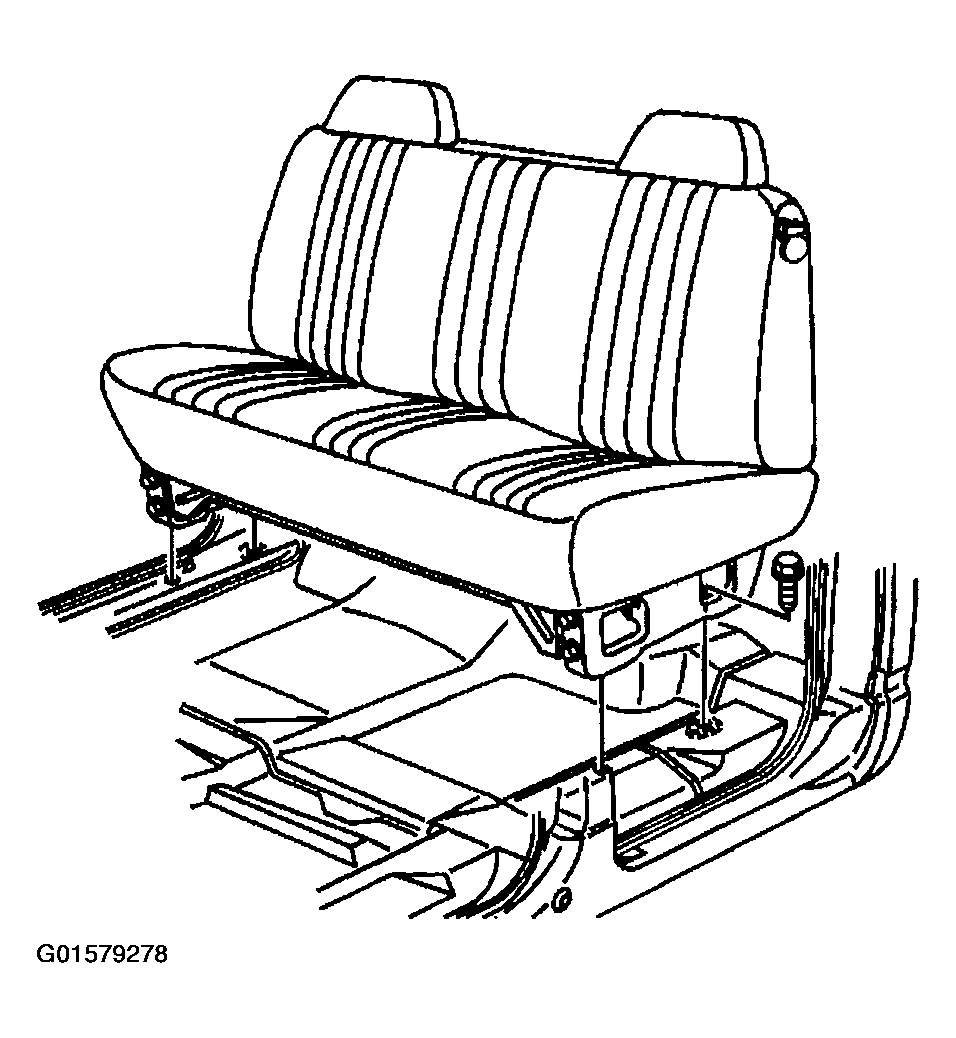

Fig 1: Installing Seat
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the seat retaining bolts (2).
Tighten

Tighten the seat retaining bolts to 55 N.m (41 lb ft).
Install the front and the rear leg trim covers.

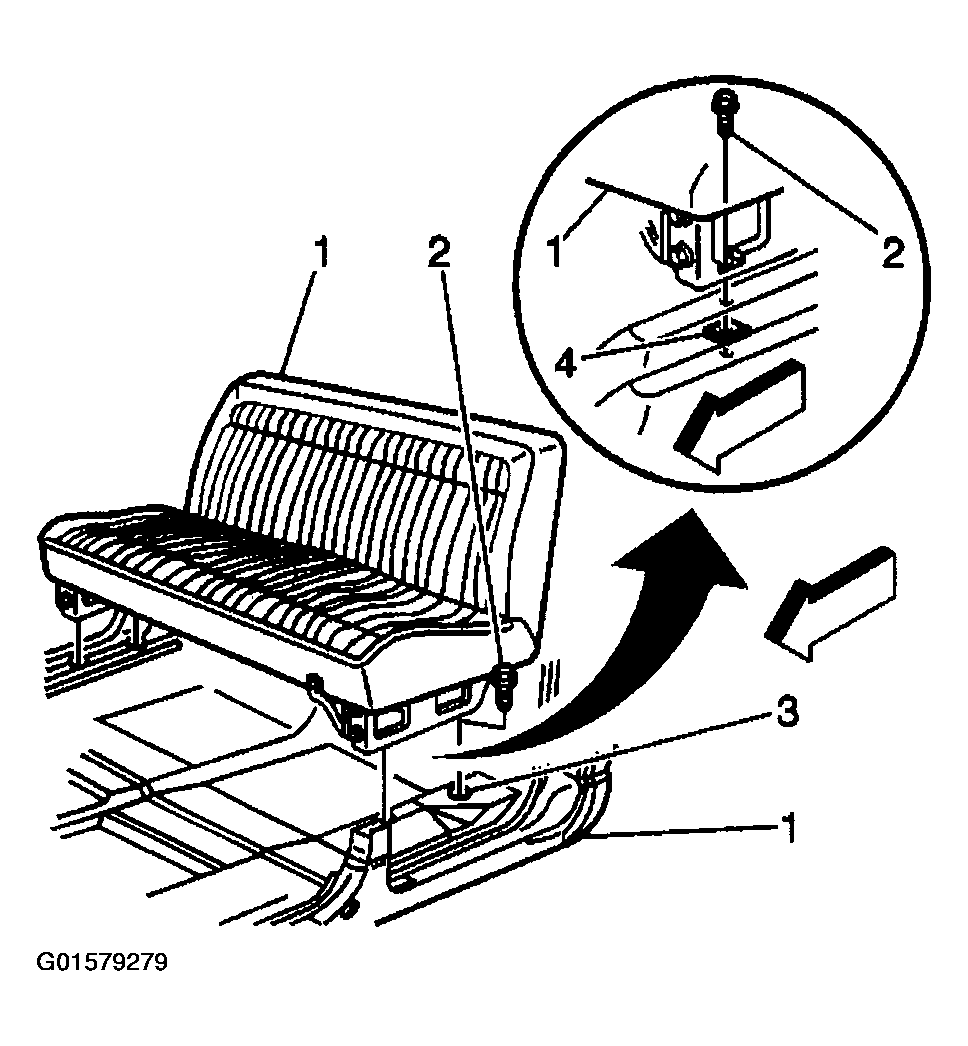

Fig 2: Installing Seat Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
