Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screws retaining the power seat switch bezel.
Disconnect the electrical connectors.
Remove the lumbar support switch.
Remove the power seat adjuster switch assembly.

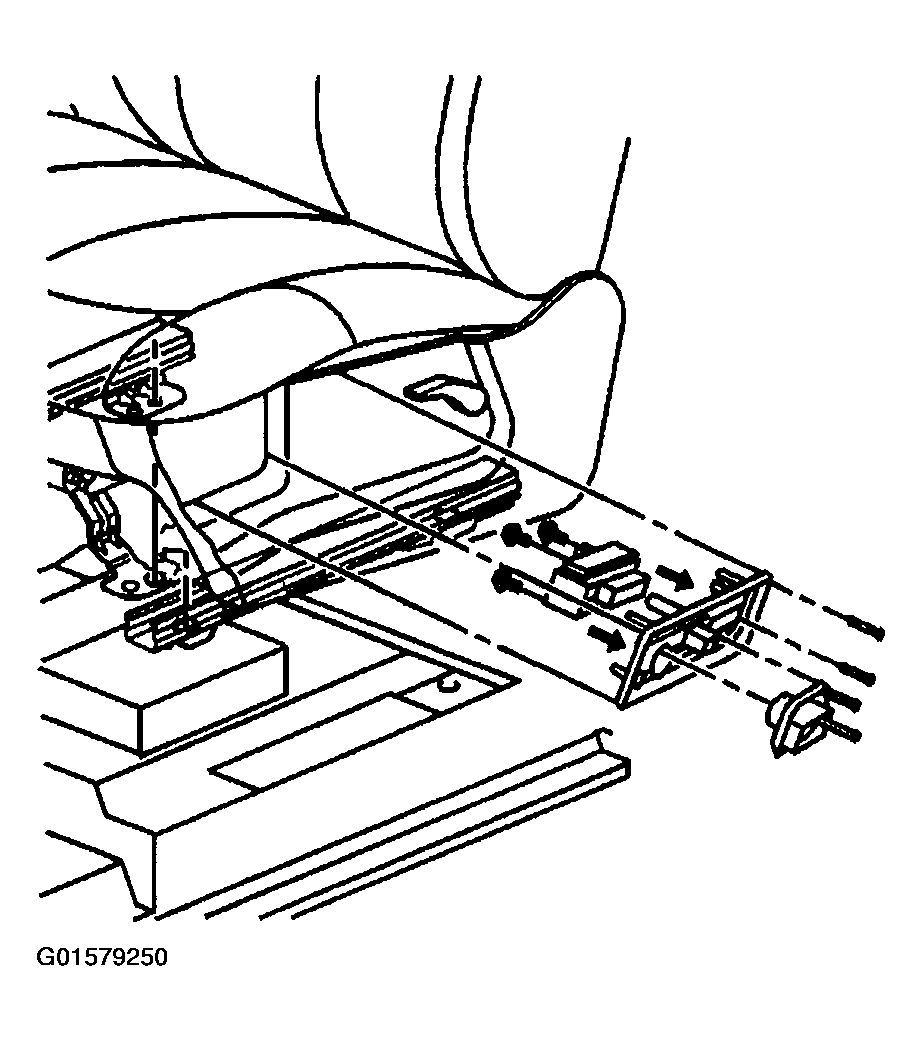

Fig 1: Seat Switch Bezel
Courtesy of GENERAL MOTORS CORP.
