Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure the seat is in the full upward position.
  2. Remove the screws retaining the seat back release handle and the seat recliner handle, if equipped.
  3. Remove the trim panel (1) by pulling outward in order to disengage the retaining clip.
  4. Remove the trim panel from the seat.

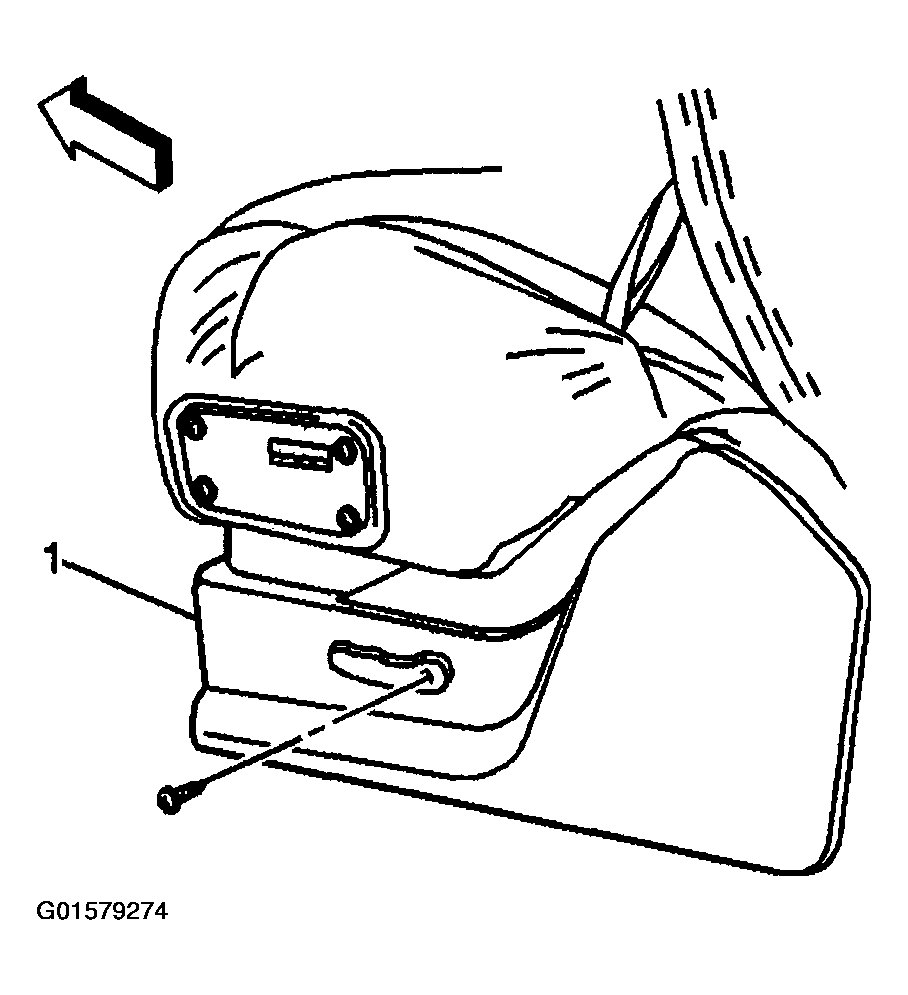

    Fig 1: Front Seat Trim Panel
    G01579274Courtesy of GENERAL MOTORS CORP.
